1. CHOCTAEK Advantage
1) Full automatic and Semi automatic 60T aluminium foil dish machine are optional
2) Using high technical machine to achieve high precision
3) Half day installation and regulation
4) After-sales service provided on time
2. Product Description
Model | CTJF-60T | Length of Strokes | 220mm |
Max.Pressure | 63KN | Mould Closed Height | 370-450mm |
Max.Material Width | 700mm | Press Power | 9kw |
Max.Material Diameter | 700mm | Working Table(L*W) | 1000*100mm |
Speed | 40-80pcs/min | Mould Adjustable Height | 80mm |
After-sales Service Provided:Engineers available to service machinery overseas

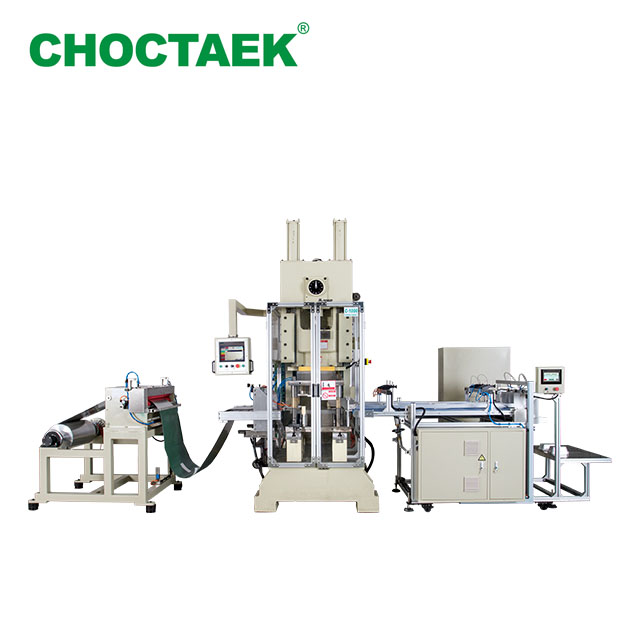

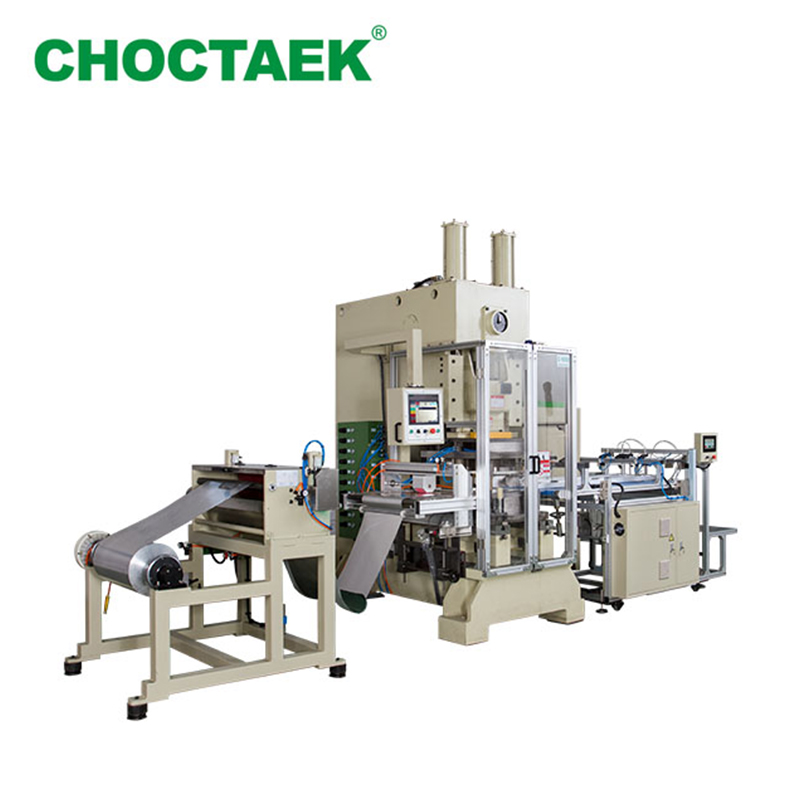

Machine Part 1:Feeding Machine
Machine Part 2:High Accuracy Press
Machine Part 3:Scrap Collecting Machine
Machine Part 4:Belt conveyor
Machine Part 5:Mould
Driven Type:Electric and pneumatic
Automatic Grade:Automatic aluminium container making machine
Certification:CE
Condition:New aluminium foil plate making machine
Control System:Siemens CPU216 Programmable Control System
60T press:
Pressure: 600KN
Hole Size of Collecting Table: 1300*1500mm
Production Output: 40-80times/min
Board Thickness of Collecting Table: 100mm
Max. Height of Mould: 450mm(excluded working plate 100mm)
Slide Board Size: 320*145mm
The adjustment height of Installation of Mould: 80mm
Size of Screw Hole of Mould: 50*60mm
Size of Collecting Table: 660*1000 mm*50 mm
Dimension: 1500*1125*2315mm (L*W*H)
Motor Capacity:16KW
Weight:10000kg
