CHOCTAEK Aluminum Foil Container Making Machine Advantages:
1. With SCHULER press, it's H type, which is not only stronger than that of C type, but also more stable.
2. Change from one pair of cots to two pairs of cots. The problem of excessive oil and dripping oil on the surface of raw materials is solved. But you need to control the tension. Set the pressure at 0.2 to 0.3. When the machine is not used for a long time, the rubber roller should be opened and not kept closed for a long time, otherwise the rubber roller is easy to deform.
3. Install an electric cabinet lock on the electric cabinet door. Open the electric cabinet door only after the power is powered off.

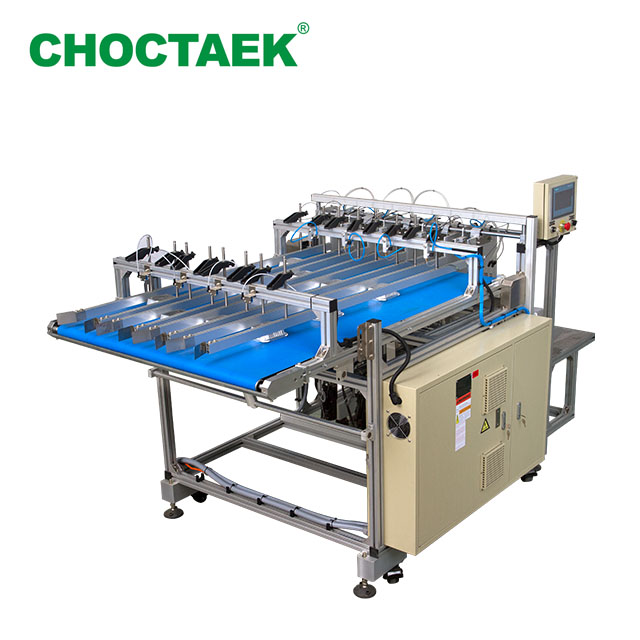

4.In addition to the collecting machine, the connector of the feeder, the main motor of the punch press and the length controller frame is changed from outside the cabinet to inside the cabinet, reducing the connection between the lines, avoiding the connection error, and making it easier to install. (The network cable is placed on the switch of the punch press)
5. All electrical components should be fixed and labeled.

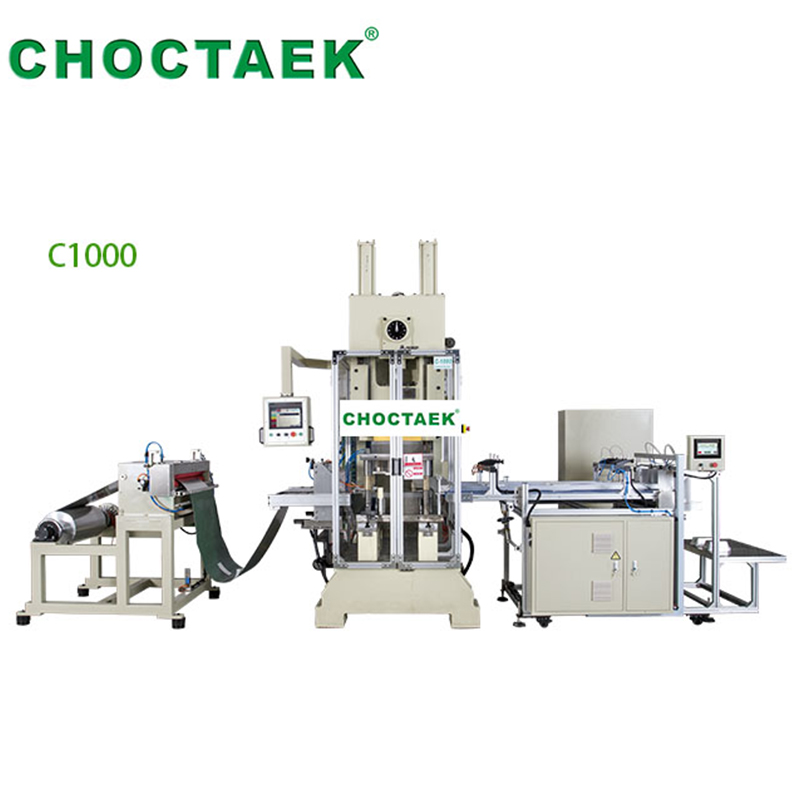

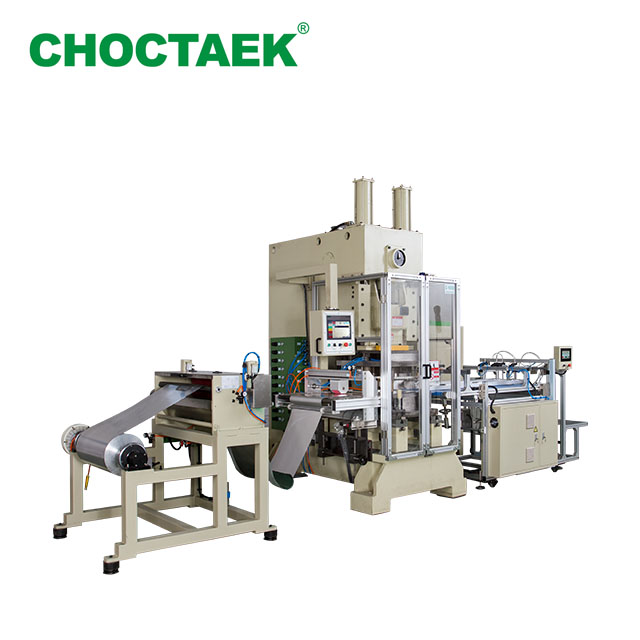

C1000 60T Aluminium Foil Container Making Machine Parameter:
| Strokes | 35-65 times/min |
| Total weight | 6.3Ton |
| Motor Capacity | 9KW |
| Voltage | 3-380V/50HZ/ 4 Wires |
| Press Dimension | 1.2*1.8*3.3M |
| Expansion Shaft | Φ3 inch/6 inch |
| Max. Foil Roll Out Dia | Φ700mm |
| Max. Foil Width | 800mm |
| Length of Stroke | 220mm(custom-made 200/250/280mm) |
| Working Table Dimension | 1000*1000mm |
| Max. Mould Dimension | 900*900mm |
| Mould Closed Height | 370-450mm |
| Slide Area Dimension | 320*145 4-Φ18 |
| 320*245 4-Φ18 | |
| The Whole Production Line Space | 8*3*3.4M |
| Air Consumption | 320NT/min |
