Aluminium Foil Container Machine With 3/4 Ways Stacker

Brand: CHOCTAEK
Product origin: Foshan China
Delivery time: 50 Days
Supply capacity: 50 Set/ Year

1.CHOCTAEK specializes in manufacturing Food foil container making machine and mould since 2003, and have offered service to 90 countries. 2.Until 2022 , we have applied more than 50 Patent of Food foil container making machine . And we are the High-tech Enterprise. 3. Aluminium foil container machinecan make different height container, such as from 10mm-150mm. As the stroke length can be custom-made.

Email Annex

Aluminium Foil Container Punching Machine Is A Complete Production Line Of Manufacturing The Aluminium Foil Container,Aluminium Foil Lunch Box,Aluminium Foil Tray,Aluminium Foil Plates Etc.
It Is Include Auto Feeder,Punching Machine,Receiving Table And Punching Mold,The Mold Can Do Customized Size.

Food foil container making machine Production Steps:

Feeding material------Punching by the press------Collecting product by the receiving talbe-----Aluminium foil dish

Aluminium foil container machine has been designed and developed exclusively for the production of aluminum food containers, dishes and trays.

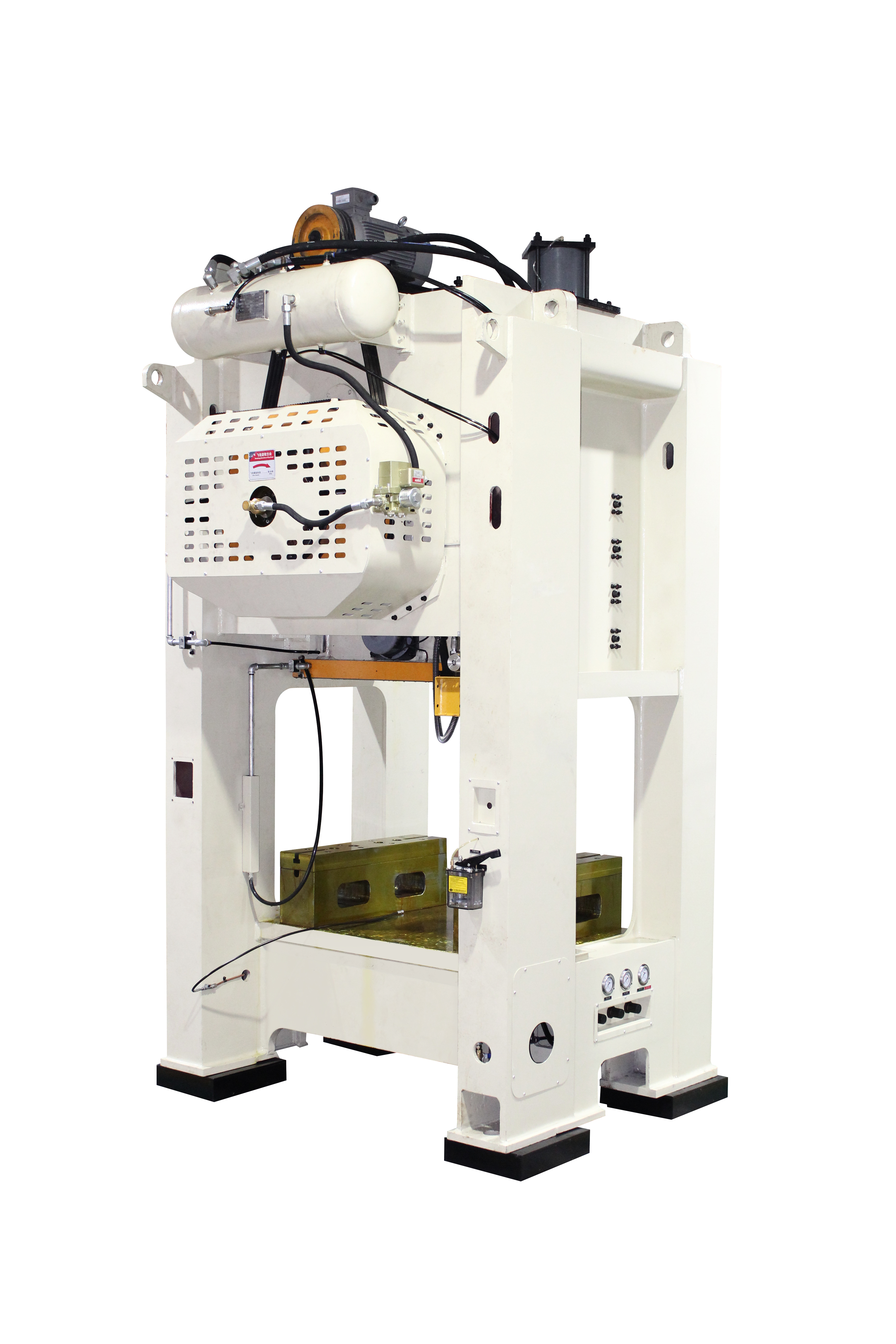

The NC1300 Aluminium Foil Container Punching Machine is A “H”-frame press with 80-ton capacity. The large working bedplate of the press is equipped with two removable supports with adjustable height to facilitate changing the tools while protecting the surfaces of the Press. This permits the press to use standard tools as well as tools designed with air cylinders below the bottom plate.

The press uses one brushless motors to feed the aluminum strip allowing accurate control of step and speed. The height of the feeding system is manually adjustable to match the strip height of the tool currently in use on the press. There are electronic cams (solenoid valves) controlled by a plc and fixed air connections with pressure regulators, providing easy tool set-up. The C1300 press is equipped with two compressed air tanks. The pneumatic control panel is easily accessible during operation of the press. The press may be equipped with tools for wrinkled-wall and smooth-wall, container production.

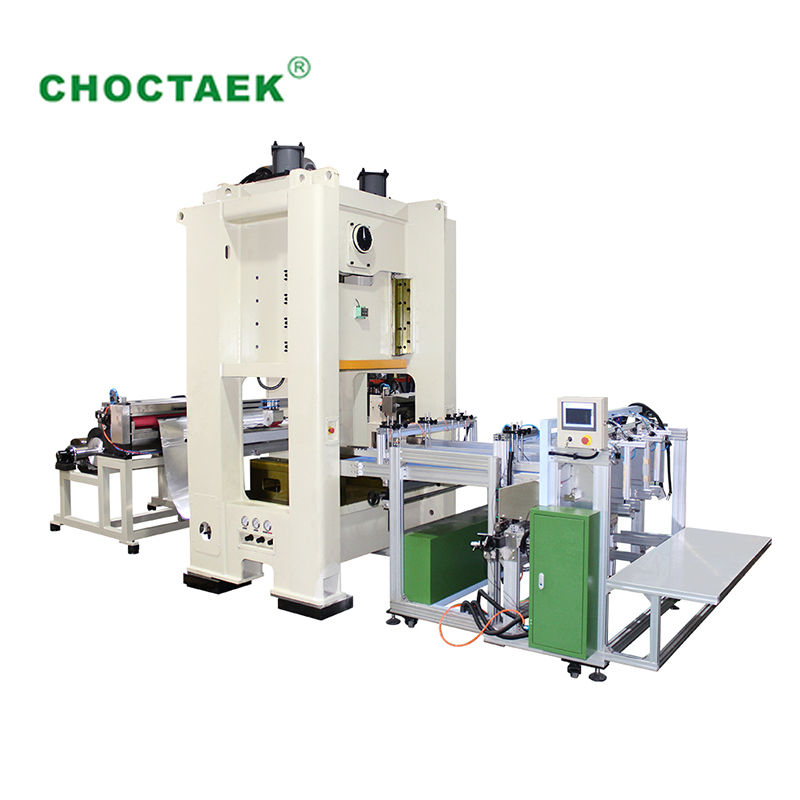

Aluminium Foil Container Punching Machine is a production line,it is included feeding machine, high accuracy press, scrap collecting system, stacker.

Machine adopts PLC as the controlling system,the feeding length, producing speed and other parameter are easily set, this integration of Air pressure& Electrical centralized control, automated production.
