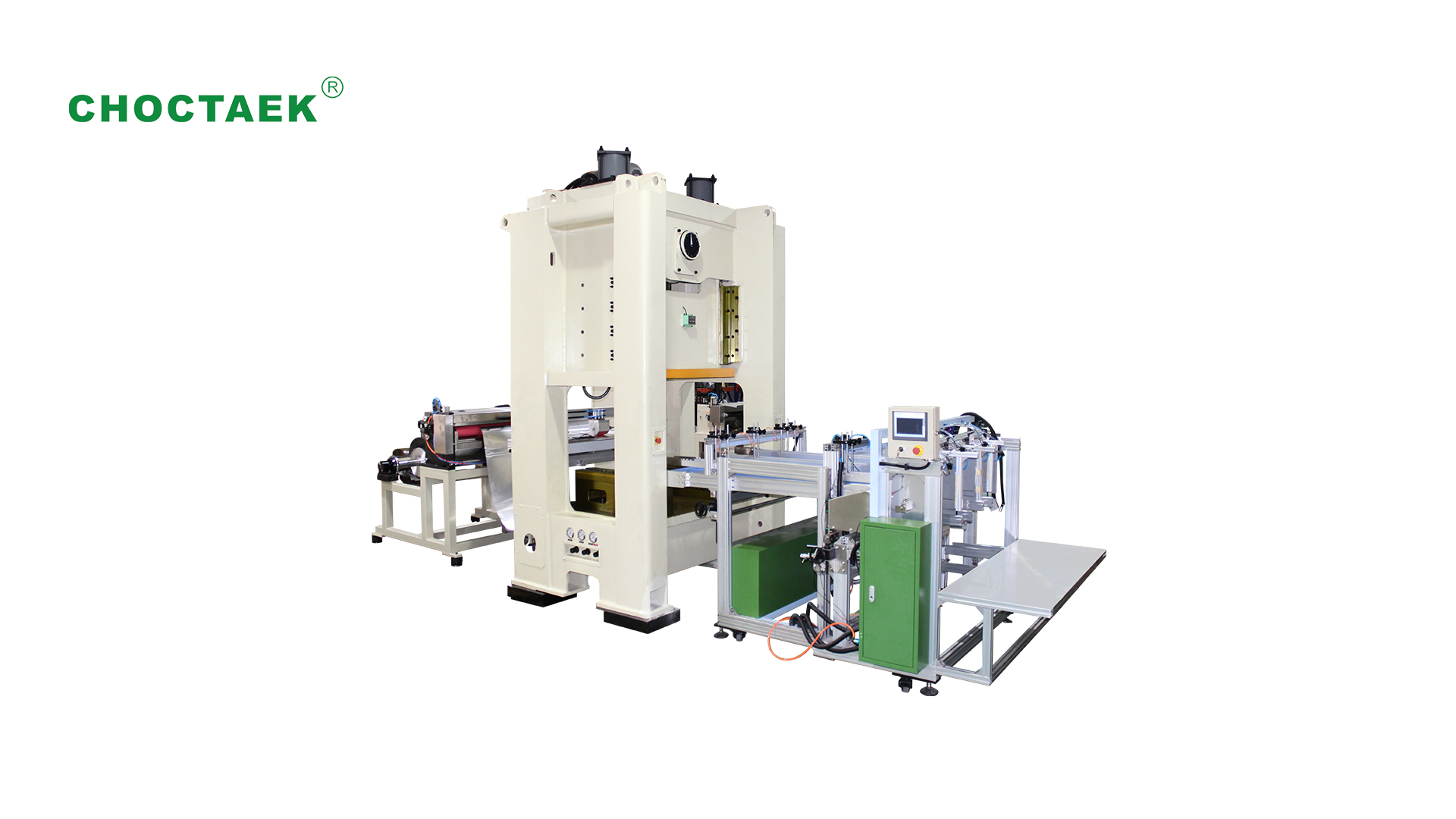

The NC1300 machine is designed and developed specially for the aluminum food containers, dishes and trays production. From the coiler, feeding to punching, those aluminum foil containers can be obtained finally.

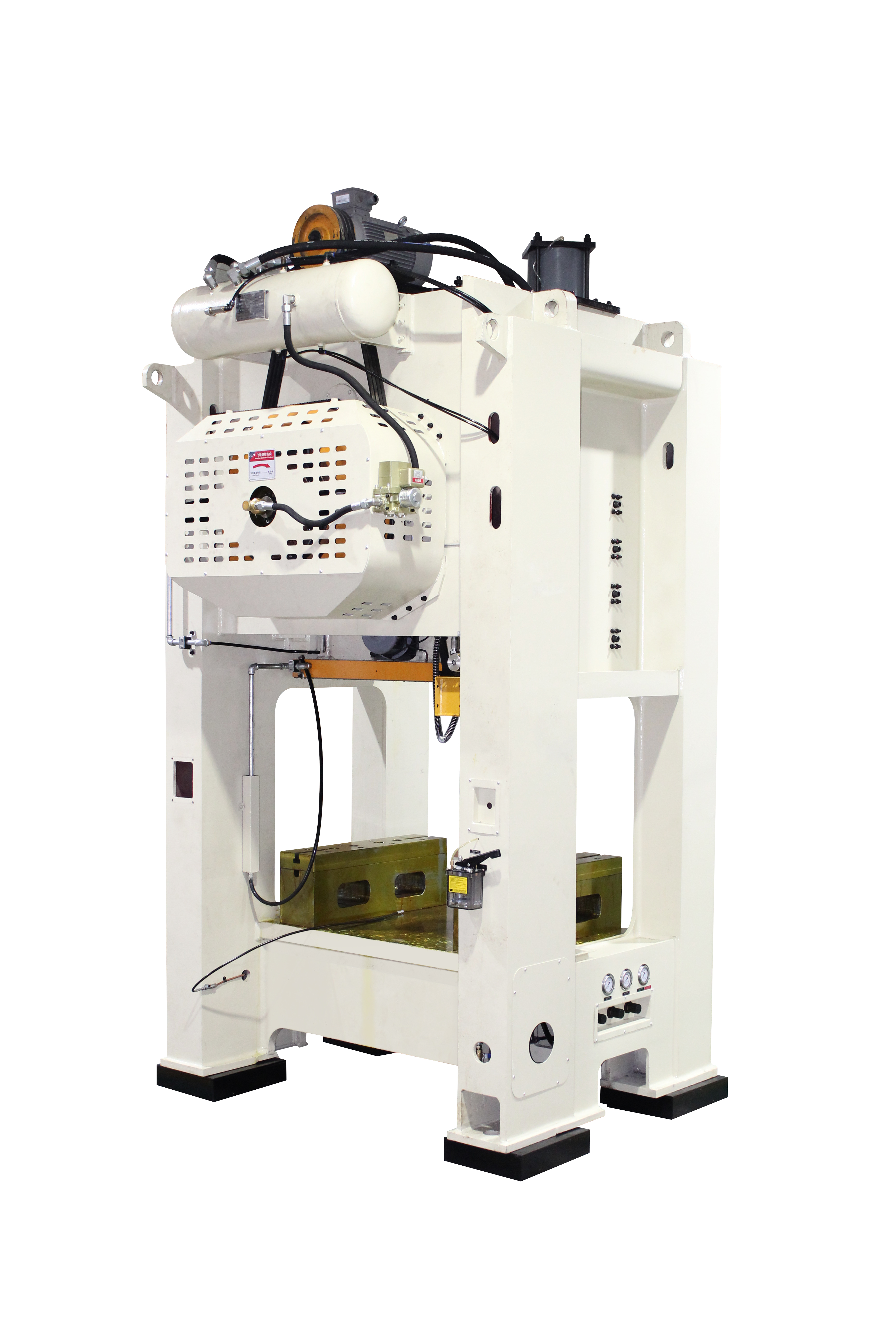

The main body of NC1300 machine is a "H"-frame 80T press. Both in easy mould replacement and surface production, the bedplate of forming machine equipped two movable plate. The press configured with a servo motor, to make sure the high precision control of feeding step and speed.
The height of the feeding system is automatically adjustable to match the strip height of the tool currently in use on the press. There are 12 electronic cams (solenoid valves) controlled by a PLC and 12 fixed air connections with pressure regulators, providing easy tool set-up

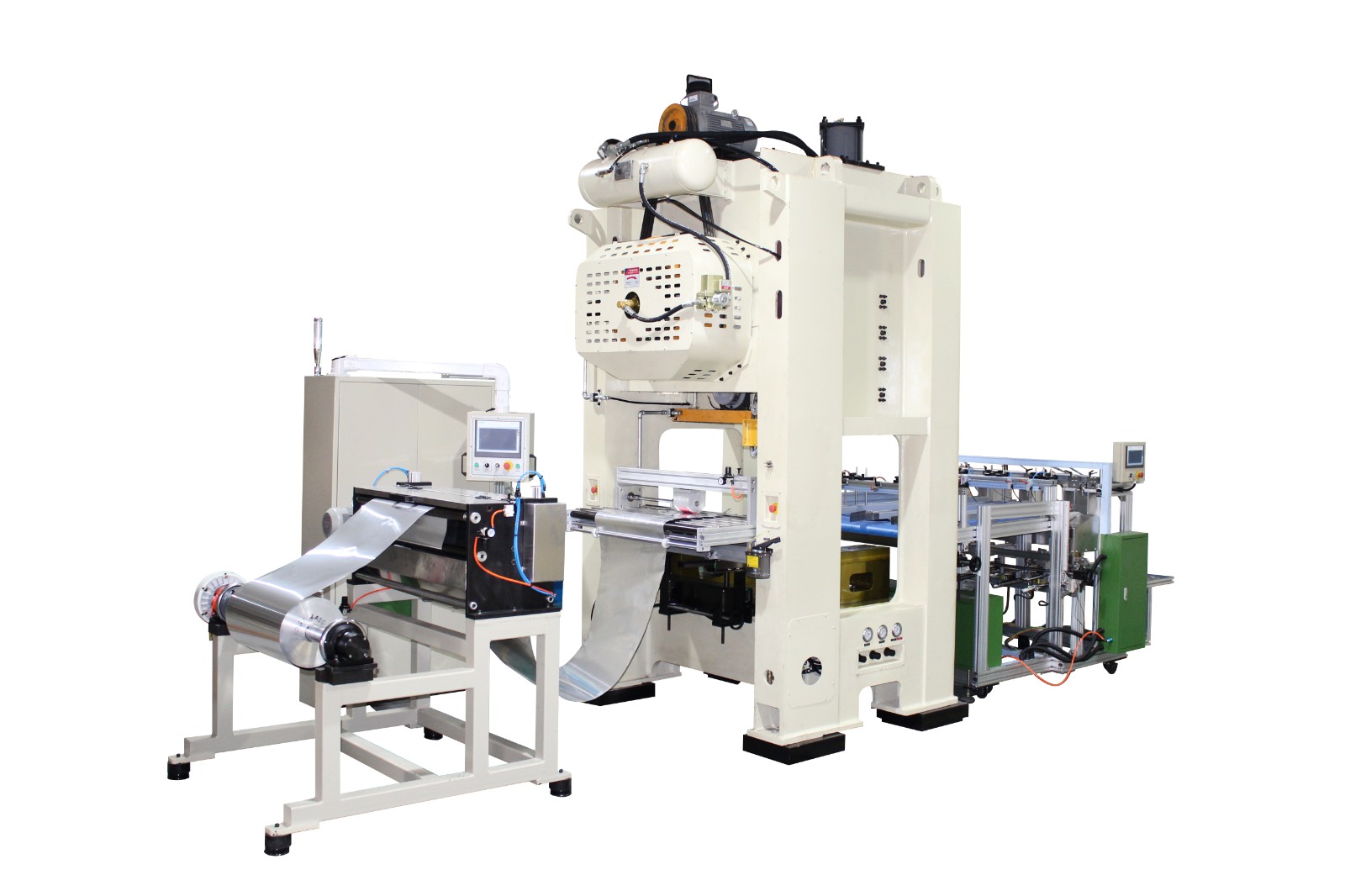

Complete Automatic Aluminium Foil Container Making Machine
Model: NC1300 (Four Cavities or Five Cavities Capacity !)
Units: Automatic Feeder+Automatic 80Ton H Type Press+Cavities Mould+Auto Stacker+Scrap Sucker & Auto Presser.
It fit for all common size Aluminum Foil Container production requested. The Big capacity could to cover big range of size products. Lower power requested than other old model machines.
Specification:
1.Raw material: Aluminum foil; Thickness: 0.030mm ~0.280mm;
Alloy: 8011,8006,3003,3005; Temper O ,H22,H24;
2.Good Japan's Inverter, PLC and 10inch Touch Screen control system;
3.Max. width of Aluminum foil: 1300mm;
4.Max. diameter of Aluminum foil: 700mm;
5.Core diameter of Aluminum foil: 76mm(152mm as Optional );
6.Working speed: 35-80 times/min;
7.Total Power: 11kw;
8.Compressed air needed: 0.5- 0.8 Mpa, 0.4m3/min;
9.Install dimension: 1000*4500*4500mm;
The C1300 machine is designed and developed specially for the aluminum food containers, dishes and trays production. From the coiler, feeding to punching, those aluminum foil containers can be obtained finally.

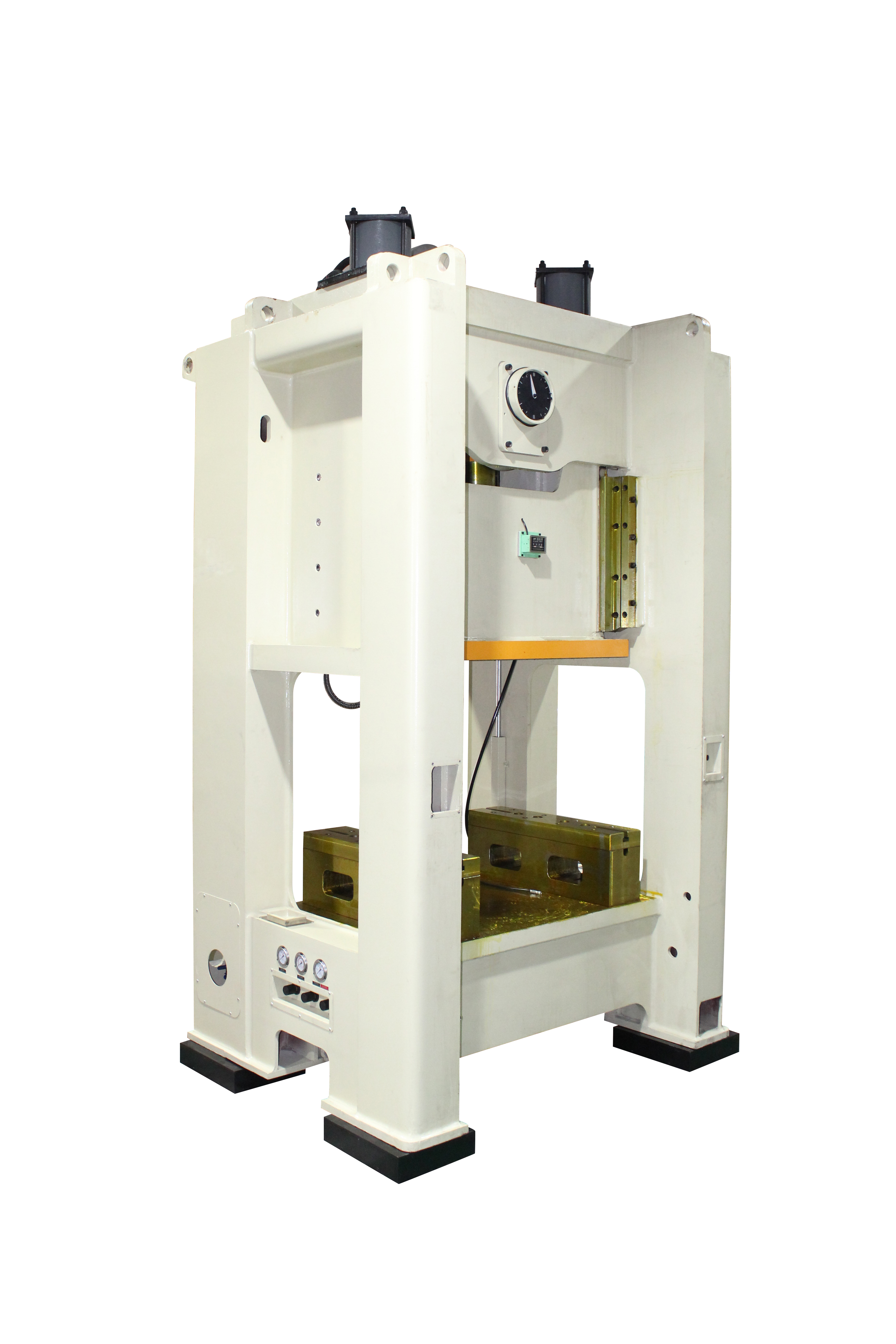

The main body of C1300 machine is a "H"-frame 80T press. Both in easy mould replacement and surface production, the bedplate of forming machine equipped two movable plate. The press configured with a servo motor, to make sure the high precision control of feeding step and speed.
The height of the feeding system is automatically adjustable to match the strip height of the tool currently in use on the press. There are 12 electronic cams (solenoid valves) controlled by a PLC and 12 fixed air connections with pressure regulators, providing easy tool set-up.

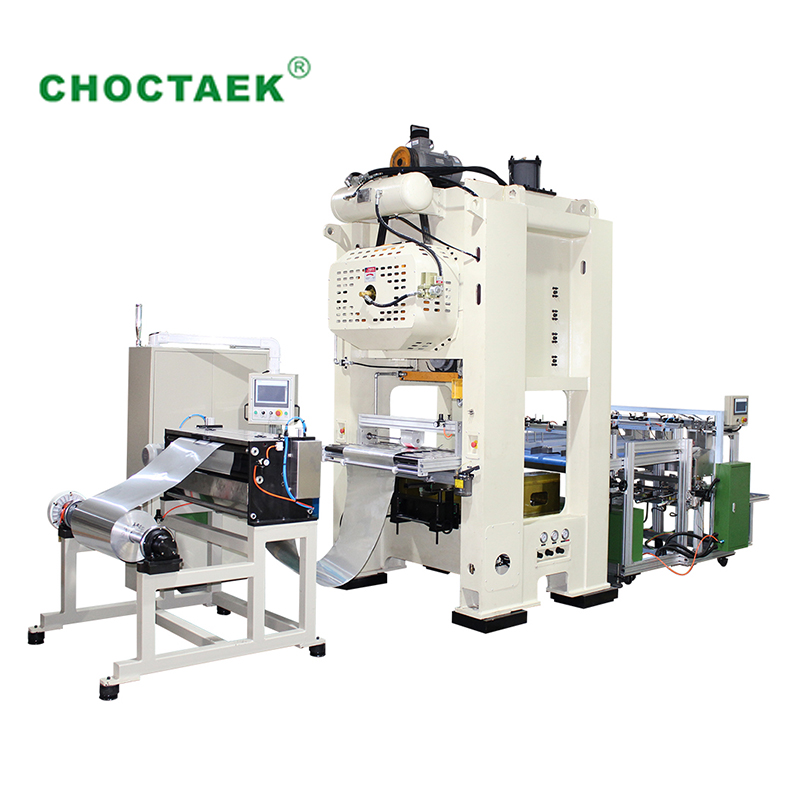

Complete Automatic Aluminium Foil Container Making Machine
Model: C1300 (Four Cavities or Five Cavities Capacity !)
Units: Automatic Feeder+Automatic 80Ton H Type Press+Cavities Mould+Auto Stacker+Scrap Sucker & Auto Presser.
It fit for all common size Aluminum Foil Container production requested. The Big capacity could to cover big range of size products. Lower power requested than other old model machines.
Specification:
1.Raw material: Aluminum foil; Thickness: 0.030mm ~0.280mm;
Alloy: 8011,8006,3003,3005; Temper O ,H22,H24;
2.Good Japan's Inverter, PLC and 10inch Touch Screen control system;
3.Max. width of Aluminum foil: 1300mm;
4.Max. diameter of Aluminum foil: 700mm;
5.Core diameter of Aluminum foil: 76mm(152mm as Optional );
6.Working speed: 35-80 times/min;
7.Total Power: 11kw;
8.Compressed air needed: 0.5- 0.8 Mpa, 0.4m3/min;
9.Install dimension: 1000*4500*4500mm;
