Main Features:
1) Simple structure in linear type ,easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) High pressure double crank to control the die opening and closing.
4) Running in a high automatization and intellectualization,no pollution

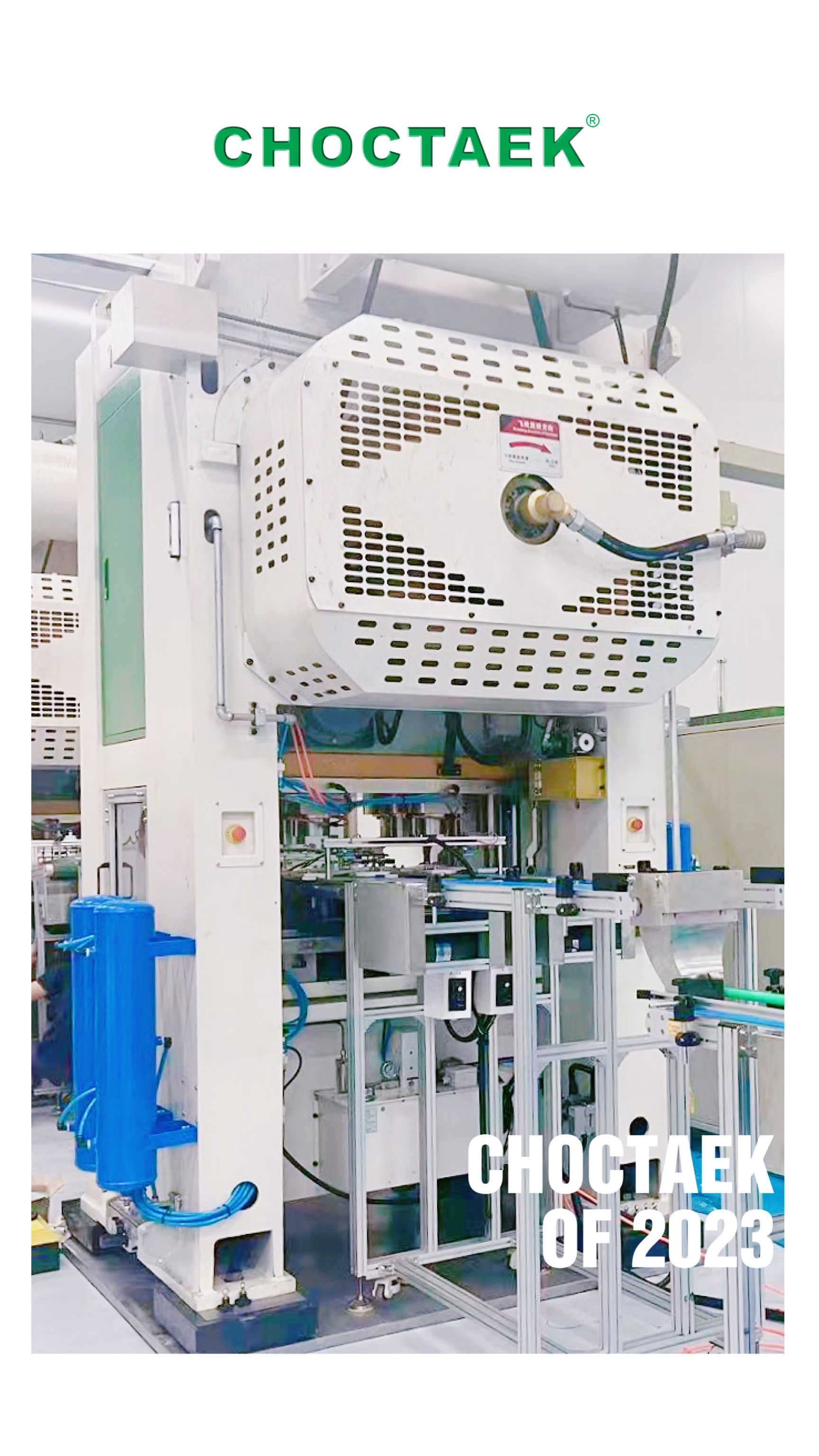

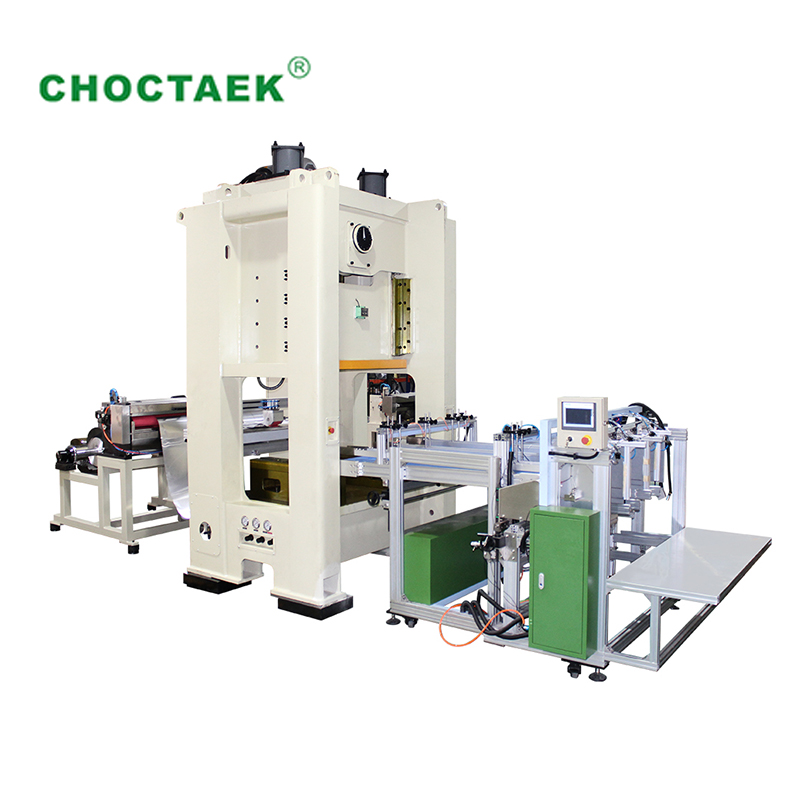

NC1300, foil container making machine, is the latest development in our company. The complete equipment includes: decoiler, press, stacker, scrap foil collection system etc. Configured with electronic components imported from famous brands like Siemens, Schneider etc., the whole machines adopt advanced designs and perfect processes, which are equipped with advanced intelligent systems to realize the whole machine linkage control.
NC1300 new aluminum foil food container machine is currently the most advanced aluminium foil container making machines in China, well known for their high degree of automation, less failure, safety and steadiness, high efficiency and easy operation.
Pneumatic Aluminium Foil Container Machine Specification:
1. Raw material: Alloy 8 Series & 3 Series.
Aluminum foil thickness: 0.030mm~0.250mm,
2. Japan Inverter, PLC and 10inch touch screen control system;
3. Max. width of Aluminum foil: 800mm;
4. Max. diameter of Aluminum foil: 700mm;
5. Air Shaft Roller: 3 inch or 6 inch
6. Working speed: 40-80 times/min;
7. Total Power: 11kw;
8. Compressed air needed: 0.5- 0.8 Mpa, 0.2m3/min;
9. Install dimension: 5800*2600*3100mm;
Technical Data:
Max. container size: 550*400*94mm;
Slide block stroke: 180-260mm;
Slide block dimension: 380*145mm;
Work plate dimension: 1000*1000mm;
Mould handle hole dimension: 50*60mm(Diameter*Depth);
Total line size: 5800*2600*3100mm;
Power: 3P, 380V, 50Hz / 220V, 60Hz;
Net weight: 9, 000kg.
80T new aluminum foil food container machine has been designed and built to produce aluminium foil containers, dishes and trays destined to food packaging and other purposes.
This Pneumatic Aluminium Foil Container Machine includes the following machinery and equipments:
Uncoiler or uncoiler with lubricator units.
Press with electronic feeder.
Automatic stacker
Scrap aspirator
Mould from single cavity to multy cavities.
Pneumatic Aluminium Foil Container Machine include 7 parts:
1. Auto Feeder (with an auto-lubricator)
2. Electrical control panel
3. Air output control equipment
4.80Ton pneumatic press
5. Mould
6. Auto-stacker or conveyor(including scrap collector)
7. Collection desk
Fast information:
Delivery date:
Machine: 30-35days.
Mould: 60-75 days, depends on the cavities and size.
Payment term:
T/T,L/C at sight ,Cash,Paypal,Western Union.
