New Style Servo Motor Aluminium Foil Bowl Making Machine

Brand: CHOCTAEK
Product origin: Foshan, China
Delivery time: 30-60 days
Supply capacity: 10 sets / month

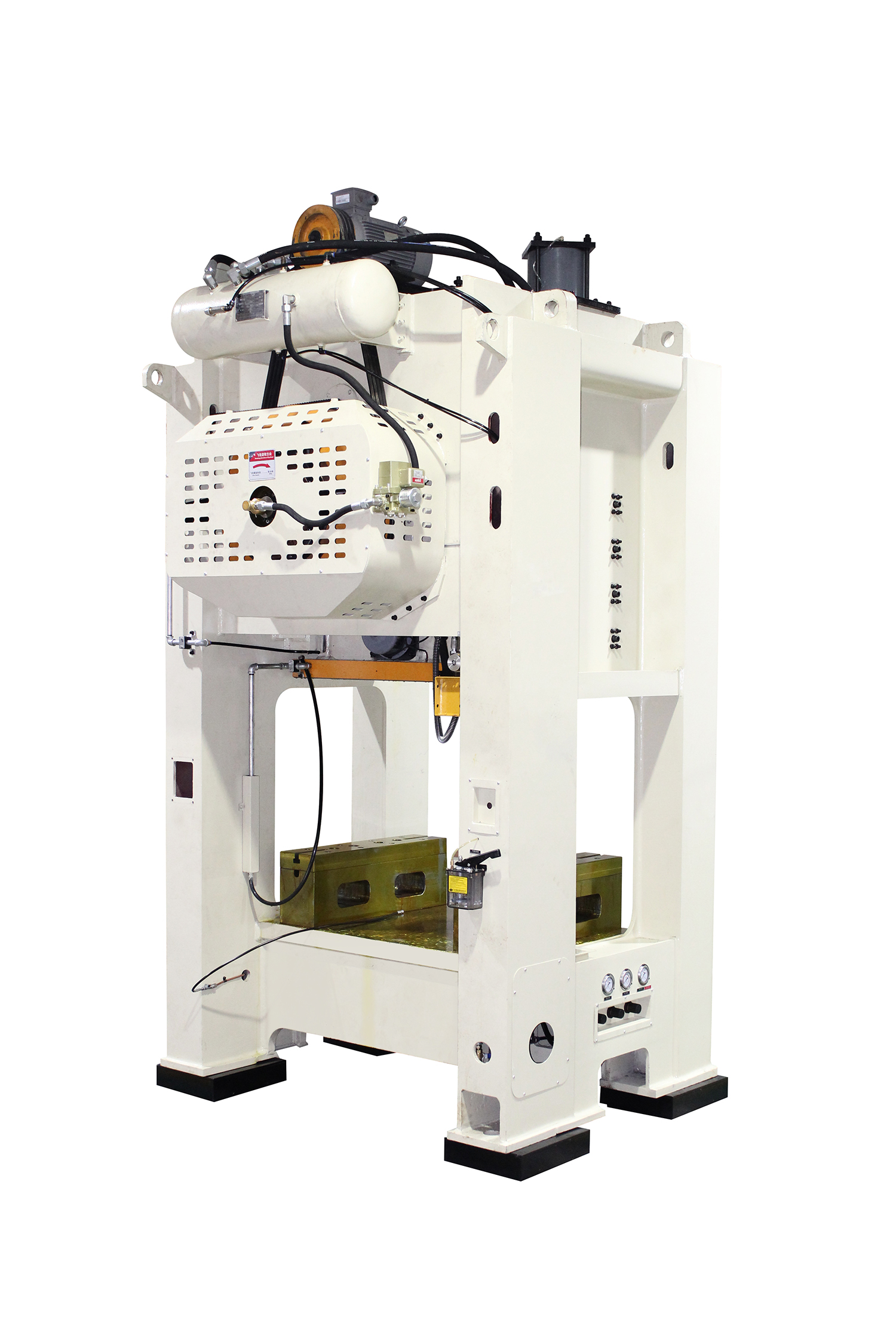

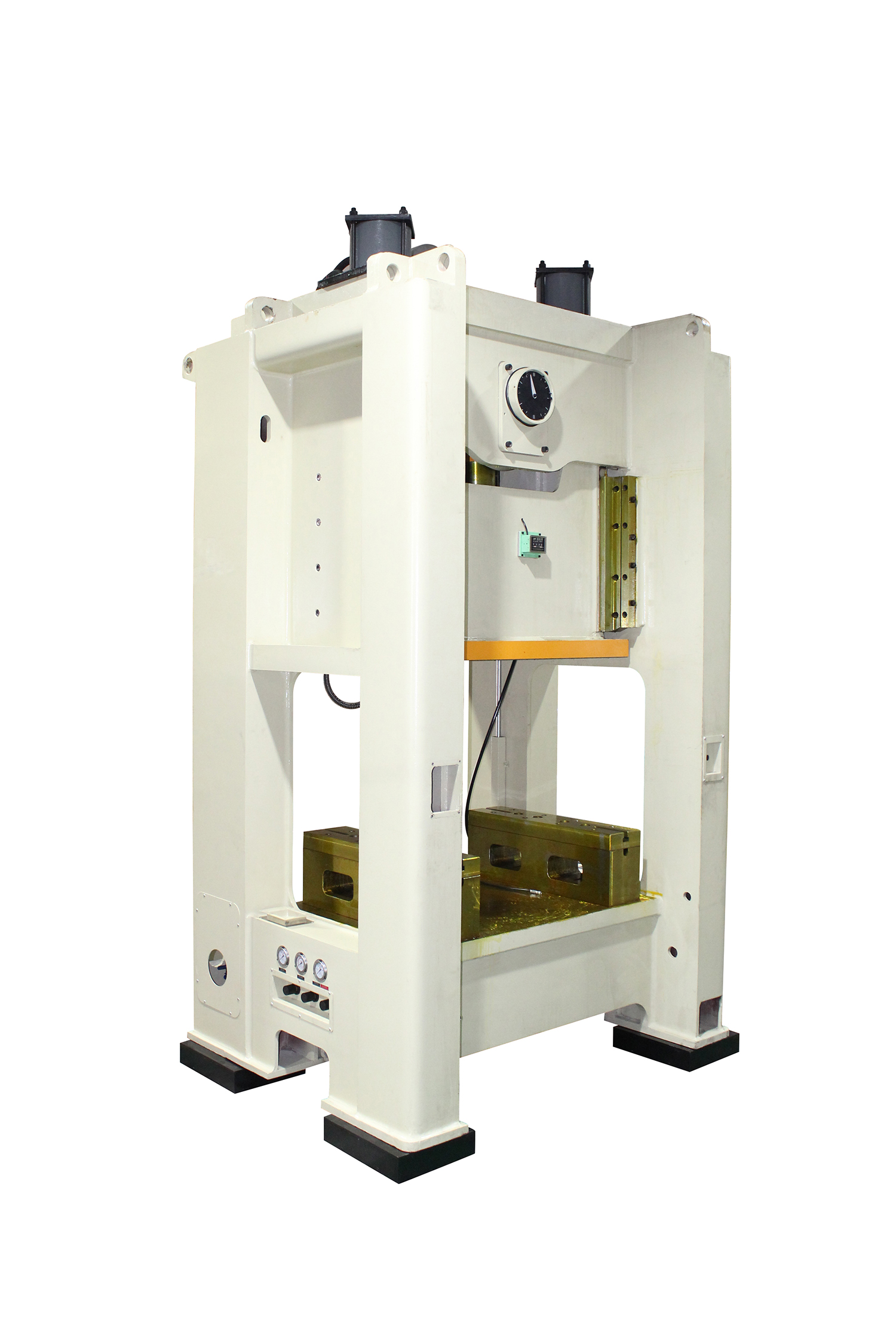

1. aluminum container machine is equipped with two Compressed air tanks. Then pneumatic control is easily accessible during operation of press. 2. A huge movable bed plate is equipped in this strong press, so it is easy and convenient to load the mould. 3. The press can be equipped with moulds for both winkle-wall and smooth-wall container production.

Email Annex

Since our establishment in 2003, CHOCTAEK has been committed to crafting high-quality aluminum container machine, production Line and associated equipment. With competitive price and excellent quality our aluminium foil plate making machine have been exported to America, Canada, Russia, Spain, Portugal, Chile, UAE, Qatar, Saudi Arabia, India and many other countries.

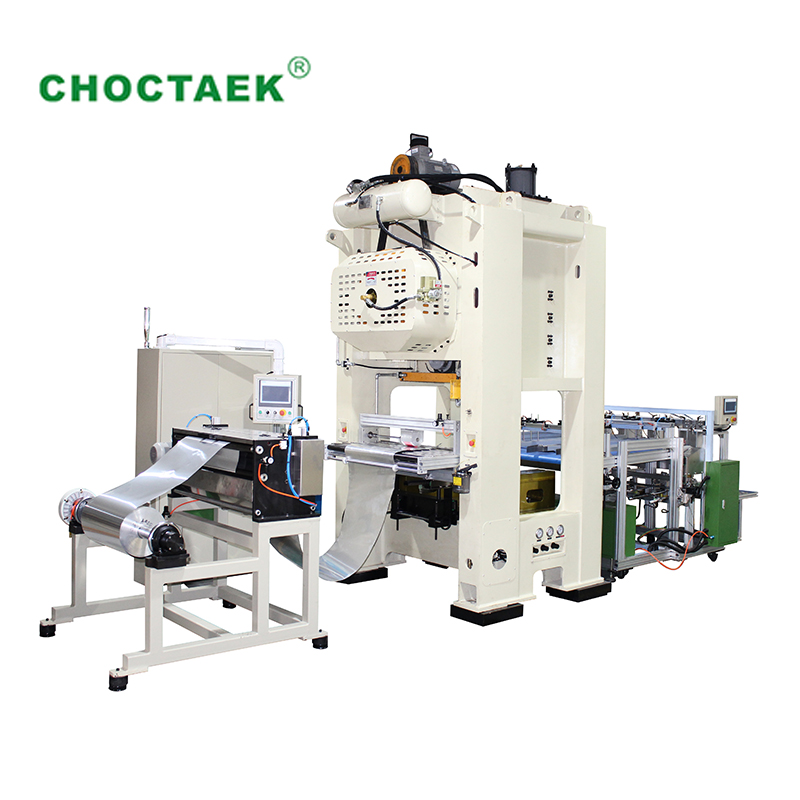

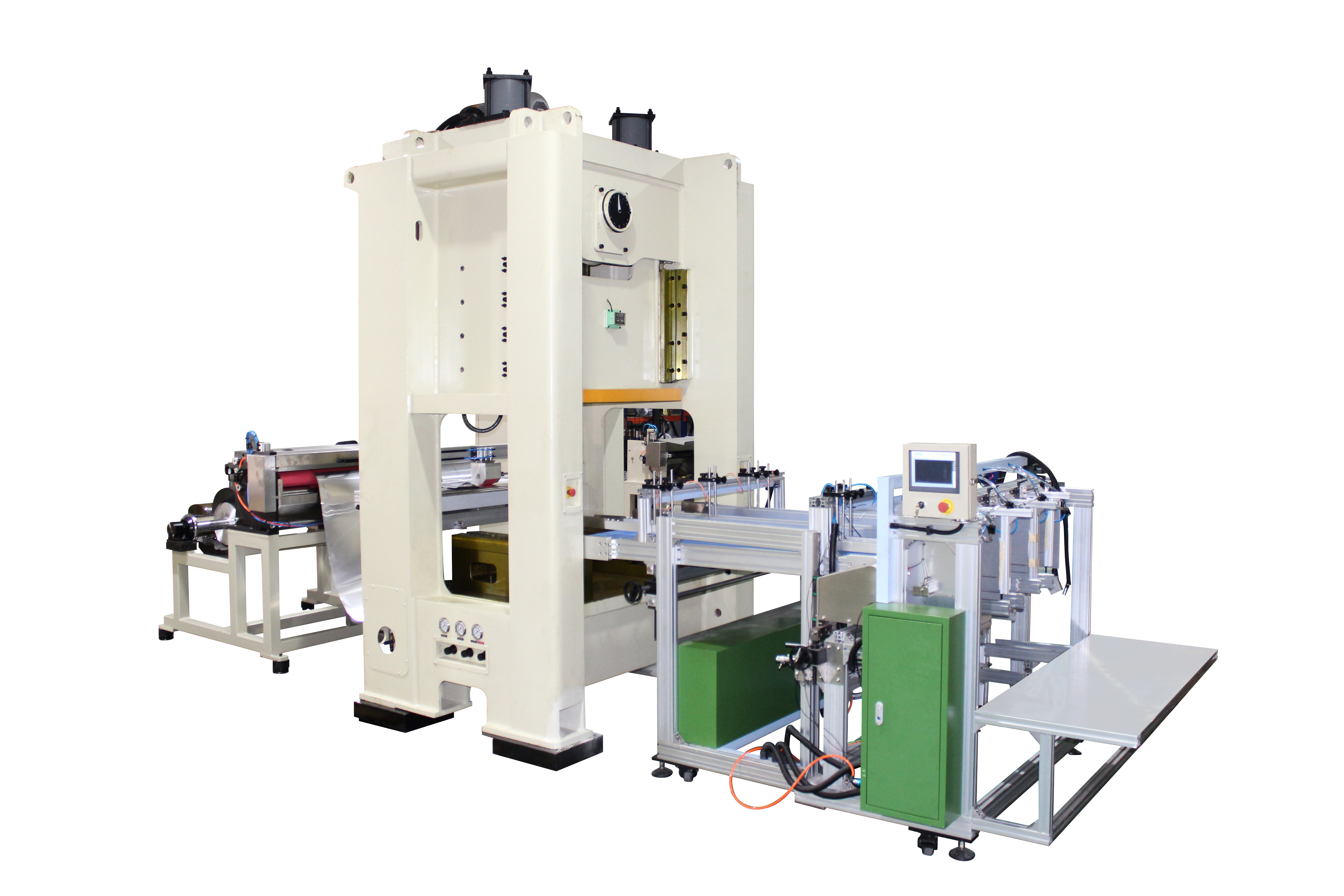

The press line NC-1300 is designed and developed specially for the aluminum food containers,dishes and aluminium foil bowl making machine. From the decoiler to stacker, from feeding to punching to stacking, the finished aluminum fol containers can be obtained finally.

Strokes	35-65 times/min
Voltage	3-380V/50HZ/ 4 Wires
Expansion Shaft	Φ3 inch/6 inch
Max. Foil Width	Φ1000mm
Length of Stroke	220mm(custom-made 200/250/280mm)
Max Mould Closed Height	500mm
The Whole Production Line Space	104.53.5M
Air Consumption	320NT/min
