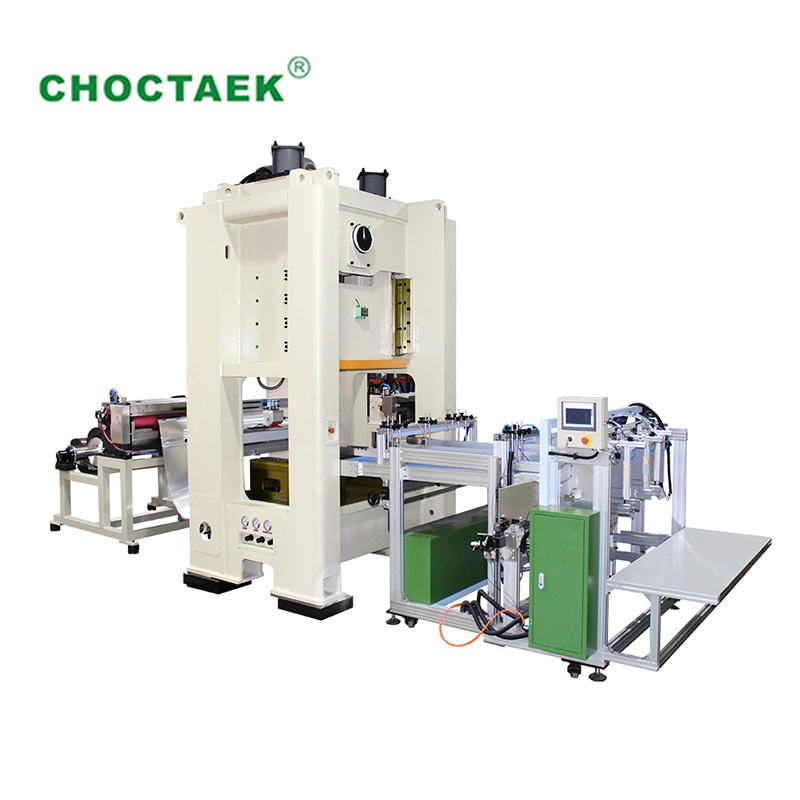

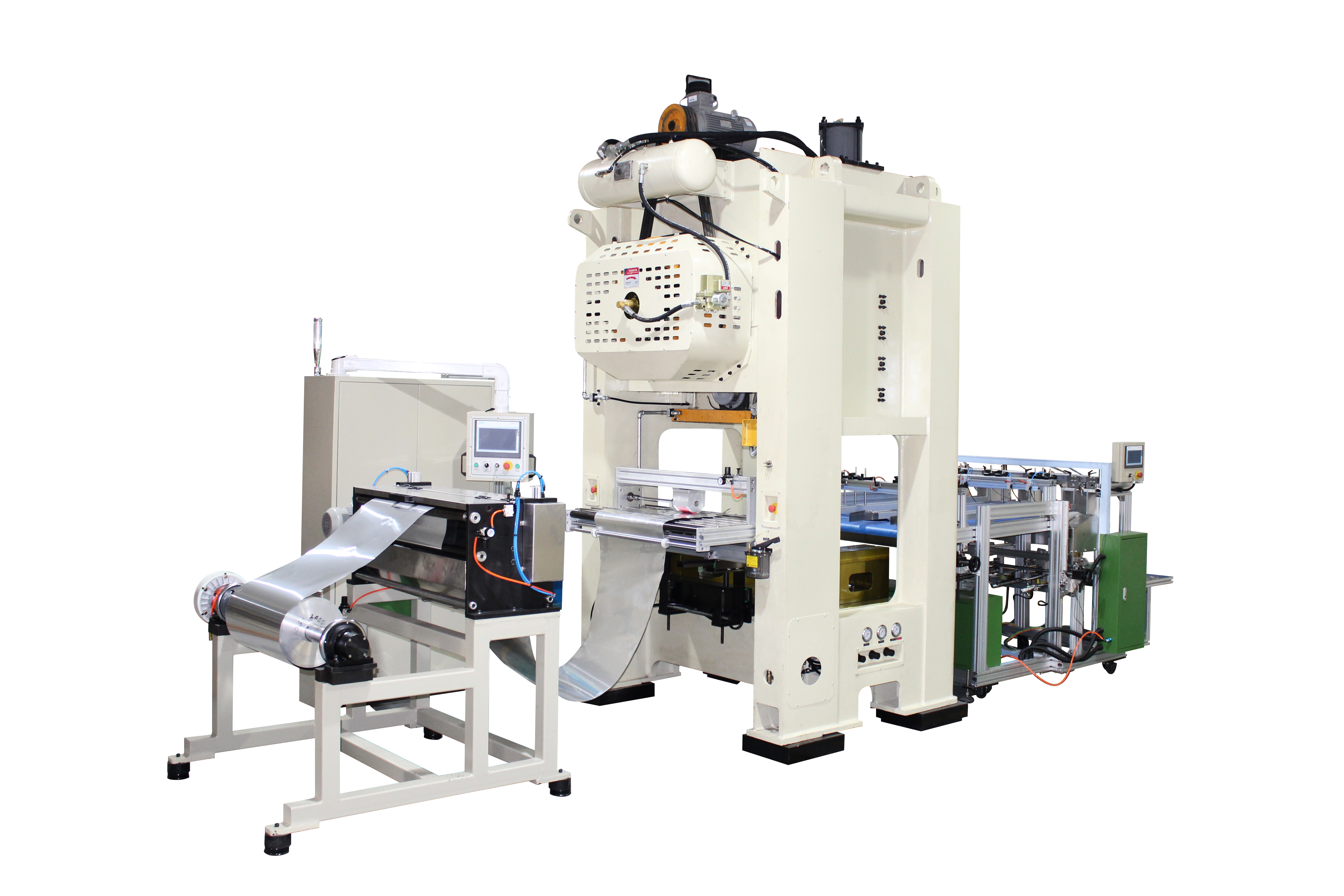

Our foil container machine NC-1300 is an upgraded model designed for the efficient production of aluminum food containers, dishes, and trays. The machine operates at a speed of 35-75 pieces per minute (with a one-cavity mold) with its speed being dependent on the size and complexity of the container. The foil container machine can also be equipped with multi-cavity molds for enhanced productivity.
The aluminium foil container making machine includes the following components:
1.Decoiler (with an auto-lubricator)
2.Electrical control panel
3.Air output control equipment

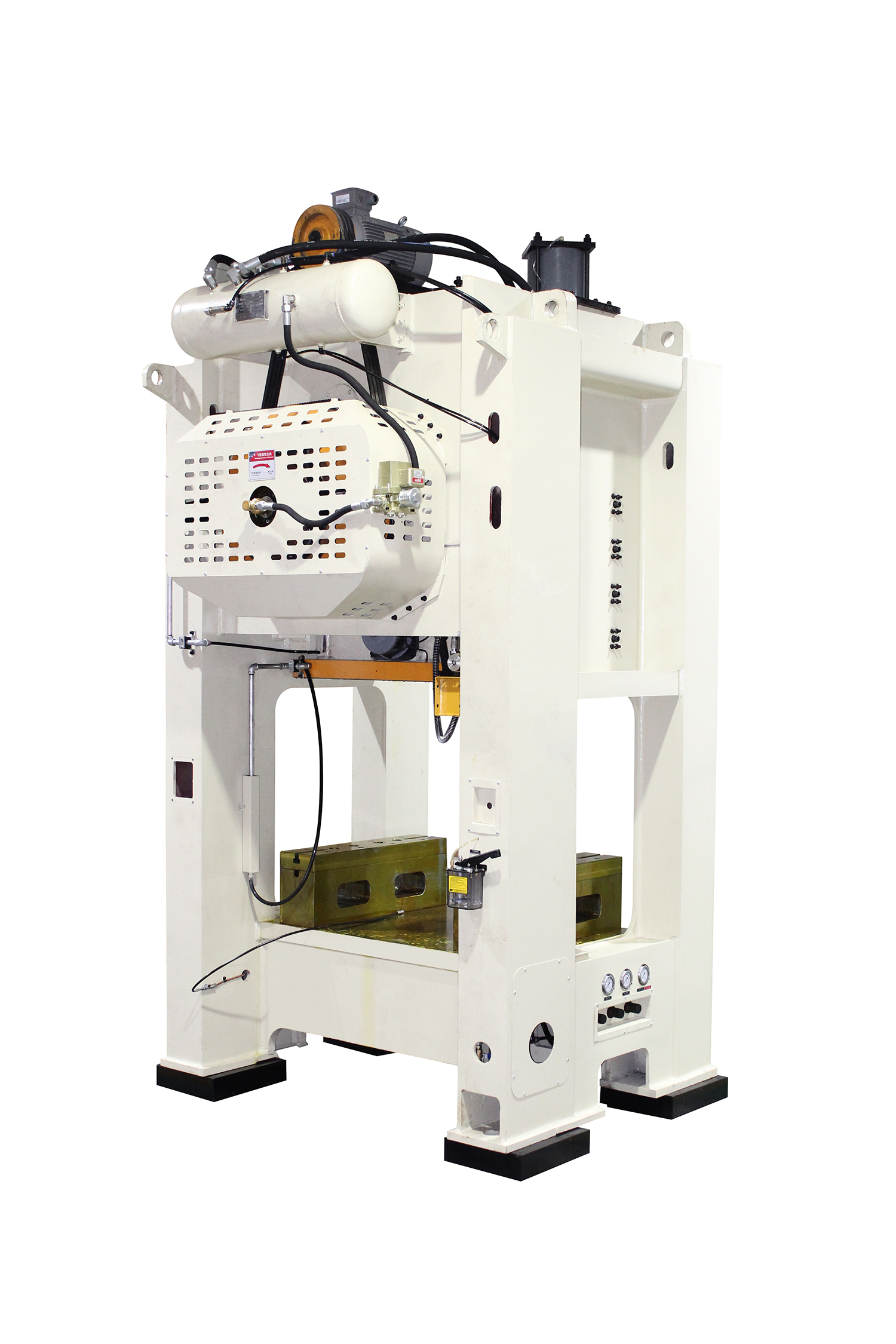

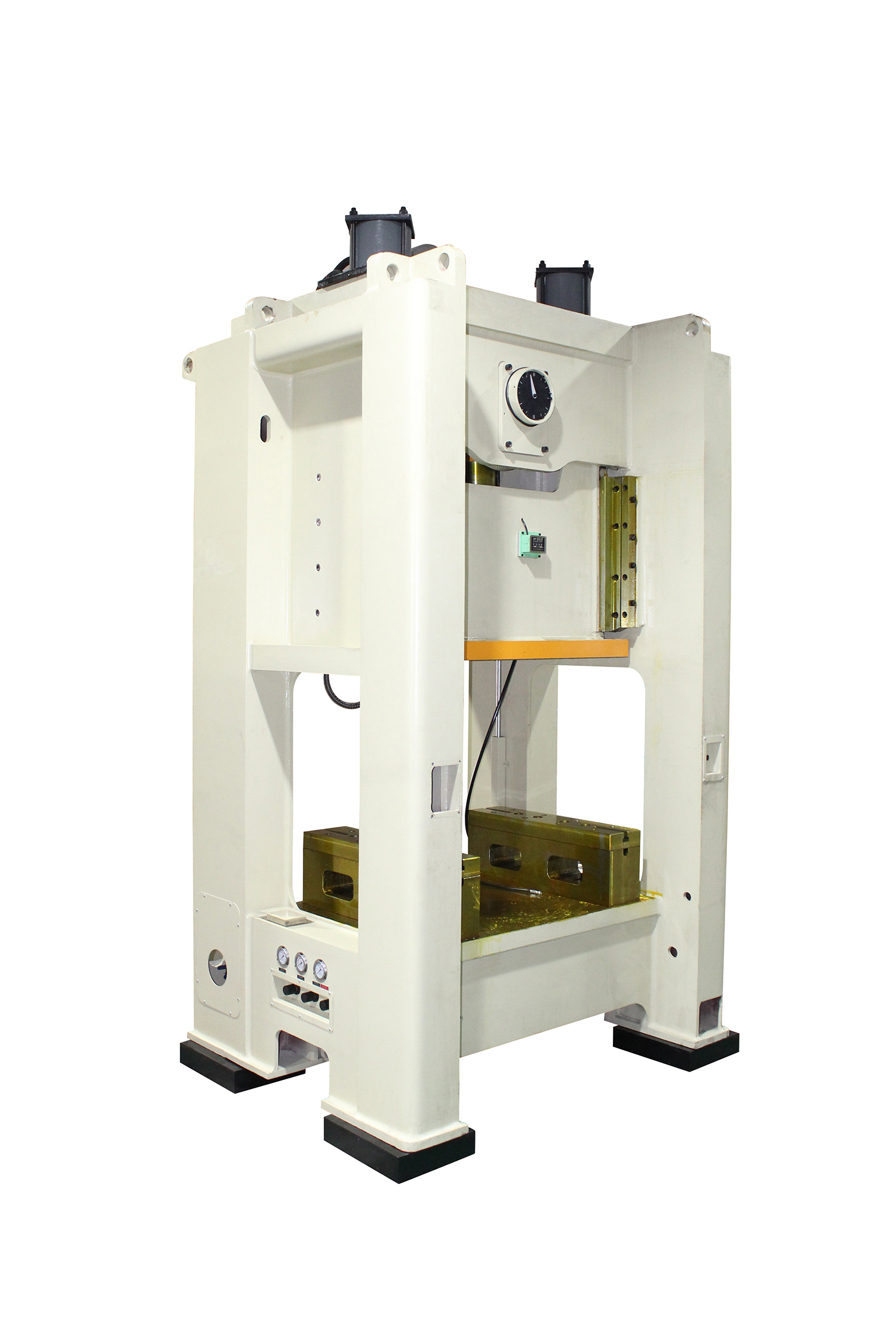

4.NC-1300 pneumatic press

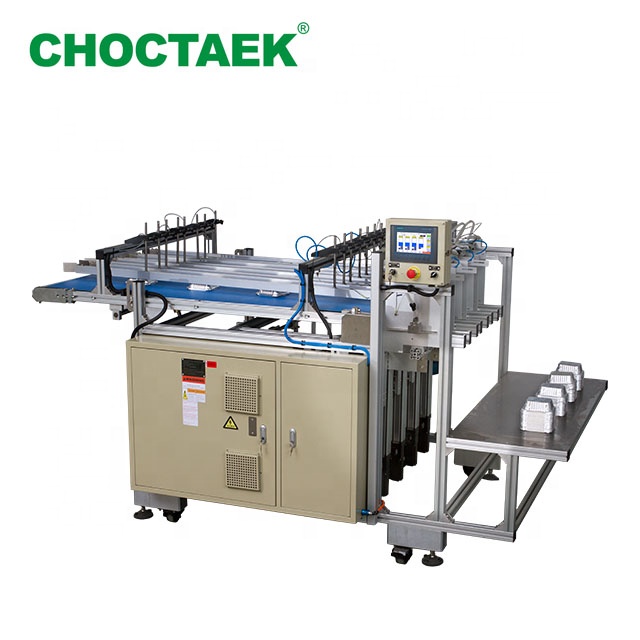

5.Auto-stacker or conveyor (with a scrap collector)
6.Collection desk
The aluminium food container making machine features a user-friendly PLC controlling system, allowing easy setting of feeding length, production speed, and other parameters. The integration of air pressure and electrical centralized control ensures automated production for enhanced efficiency.
Strokes | 35-65 times/min |
Voltage | 3-380V/50HZ/ 4 Wires |
Expansion Shaft | Φ3 inch/6 inch |
Max. Foil Width | Φ1000mm |
Length of Stroke | 220mm(custom-made 200/250/280mm) |
Max Mould Closed Height | 500mm |
The Whole Production Line Space | 10*4.5*3.5M |
Air Consumption | 320NT/min |
