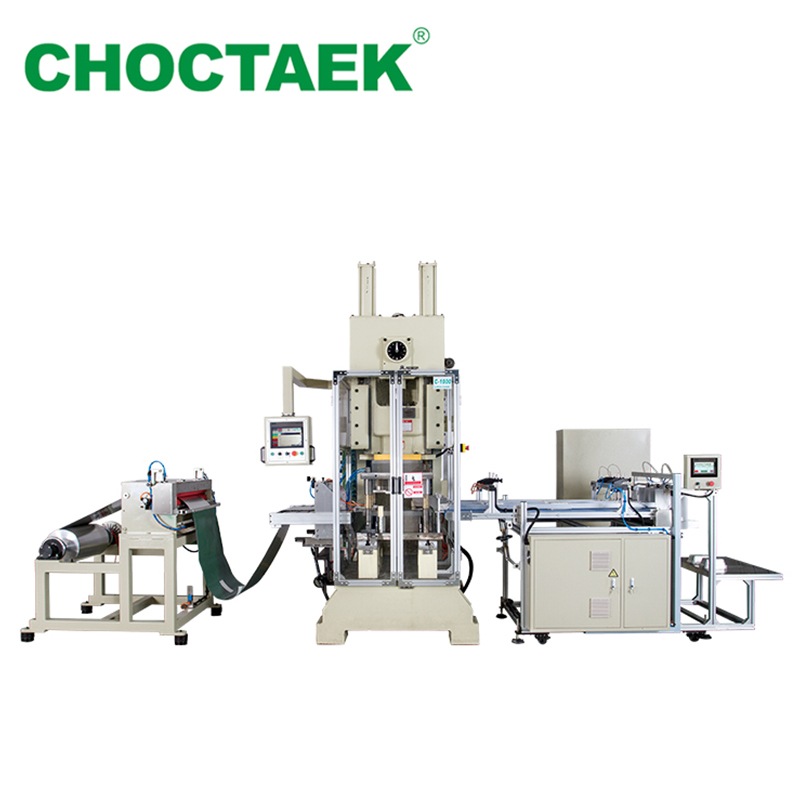

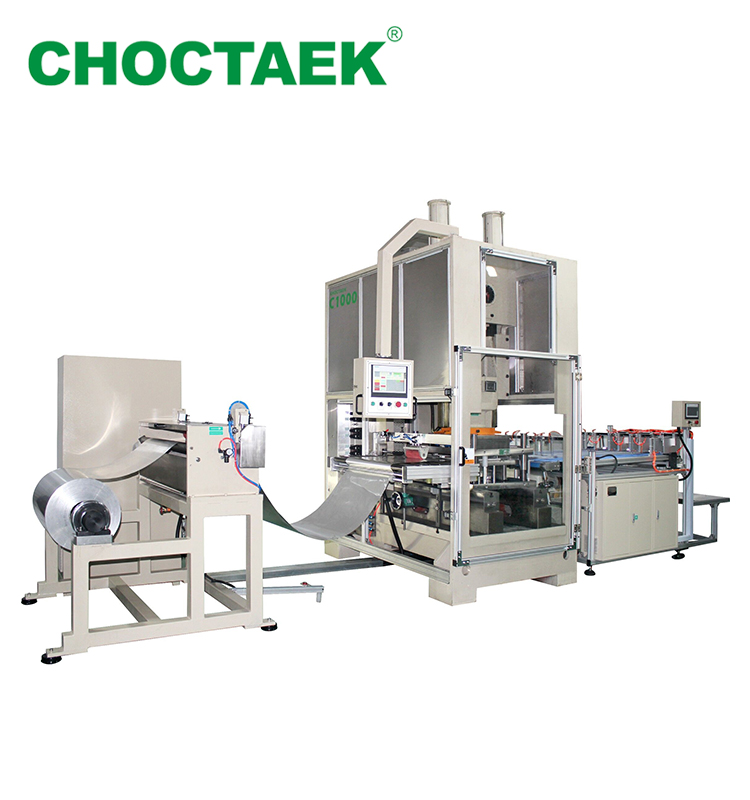

Aluminum foil container production line C-1000 is a stylish model, 60T foil tray machine, designed for the high efficient production of aluminum food containers, dishes, pans and trays. The machine operates at a speed of 40-65 times per minute (with a one-cavity mold) with its speed being dependent on the size, thickness and complexity of the container. The foil container machine can also be equipped with multi-cavity molds for enhanced productivity.
The aluminium foil container lid making machine includes the following components:
1.Decoiler (with an auto-lubricator)
2.Vertical press machine
3.Automatic stacker
4.Automatic scrap collecting
5.Pressing system

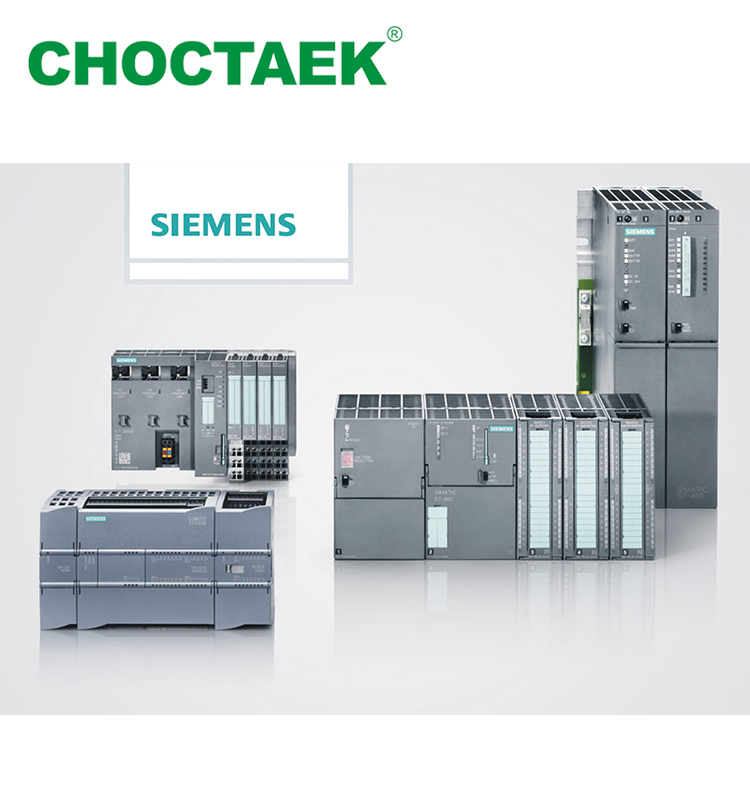

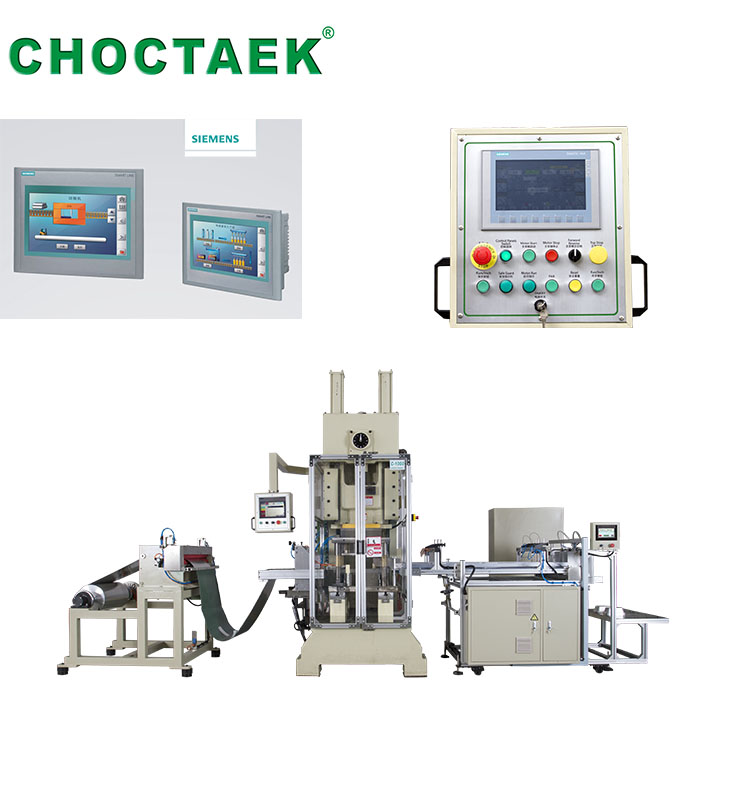

The aluminium food container making machine features a user-friendly PLC controlling system, allowing easy setting of feeding length, production speed, and other parameters. The integration of air pressure and electrical centralized control ensures automated production for enhanced efficiency.
Strokes | 40-65 times/min |
Voltage | 3-380V/50HZ/ 4 Wires |
Expansion Shaft | Φ3 inch/6 inch |
Max. Foil Width | Φ700mm |
Length of Stroke | 220mm(custom-made 200/250mm) |
Max Mould Closed Height | 370-450mm |
The Whole Production Line Space | 10*4.5*4M |
Air Consumption | 320NT/min |
