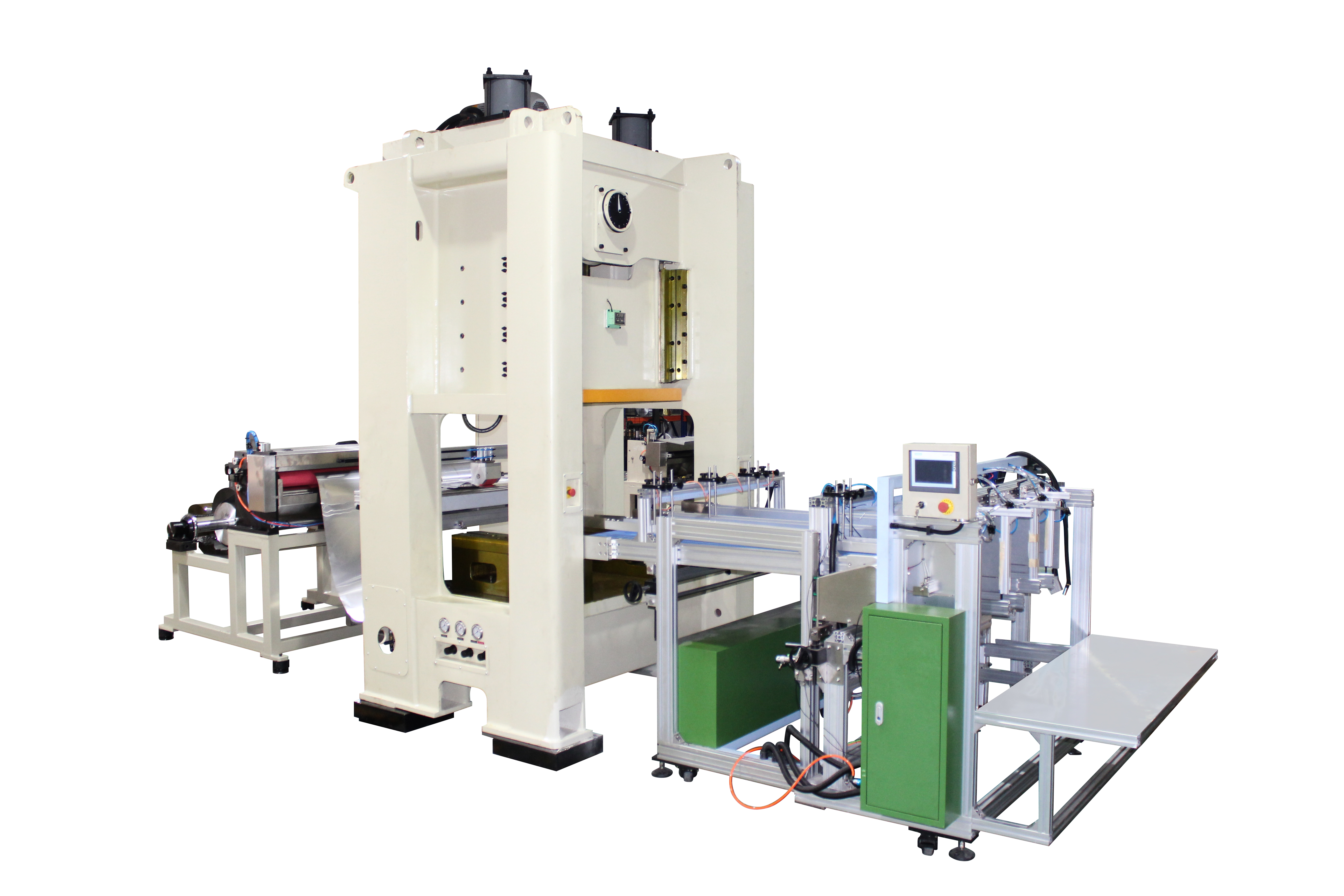

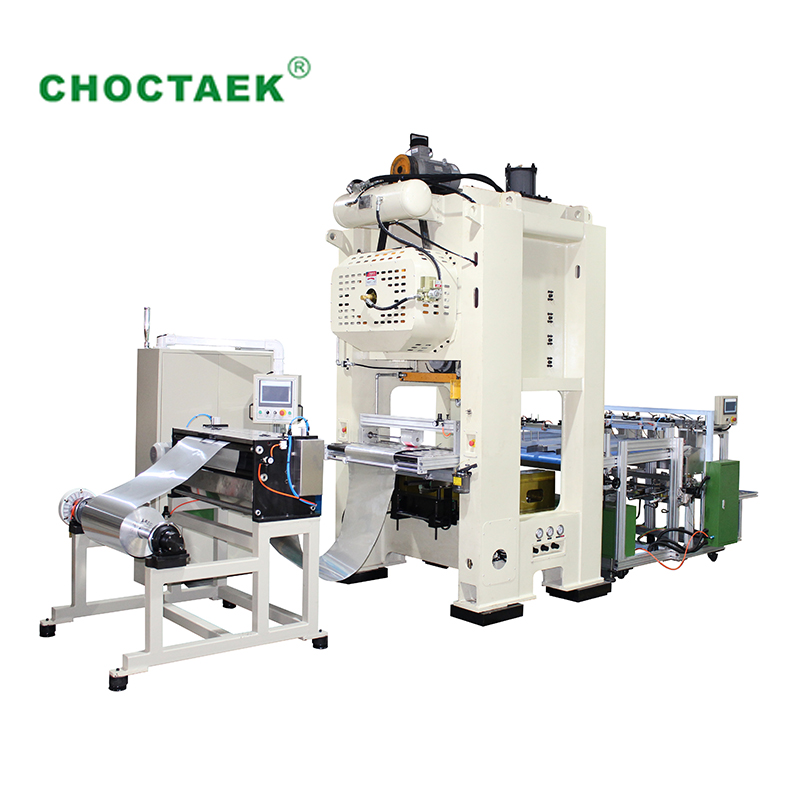

Our aluminum foil container making machine, the NC-1300, is an improved model designed for efficient production of aluminum food containers, dishes, and trays. This aluminium foil container machine operates at a speed of 35-75 pieces per minute (with a one-cavity mold), with speed depending on the container's size and complexity. The machine can also use multi-cavity molds for increased productivity.
The foil container making machine consists of:
1.Decoiler (with auto-lubricator)
2.Electrical control panel
3.Air output control equipment

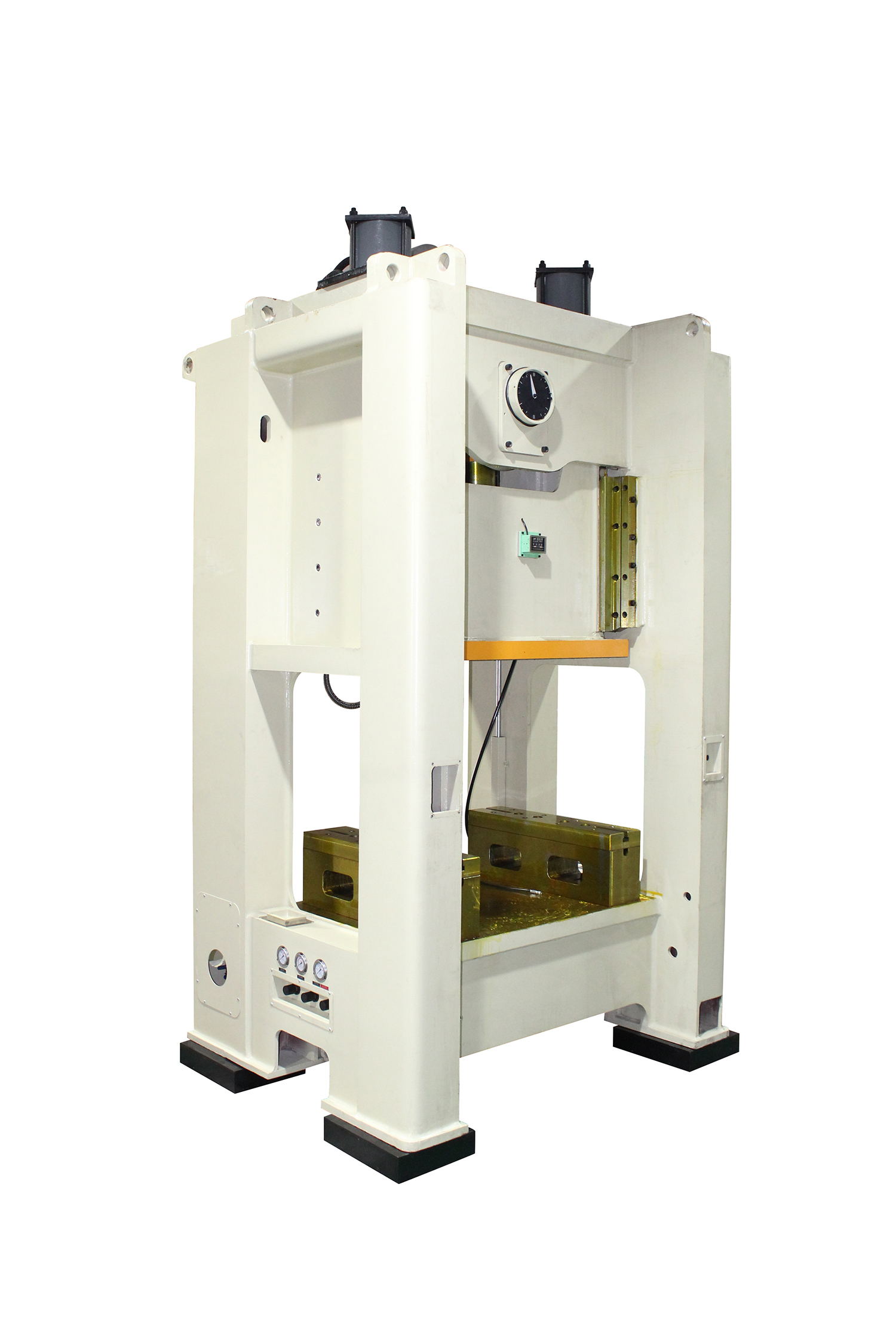

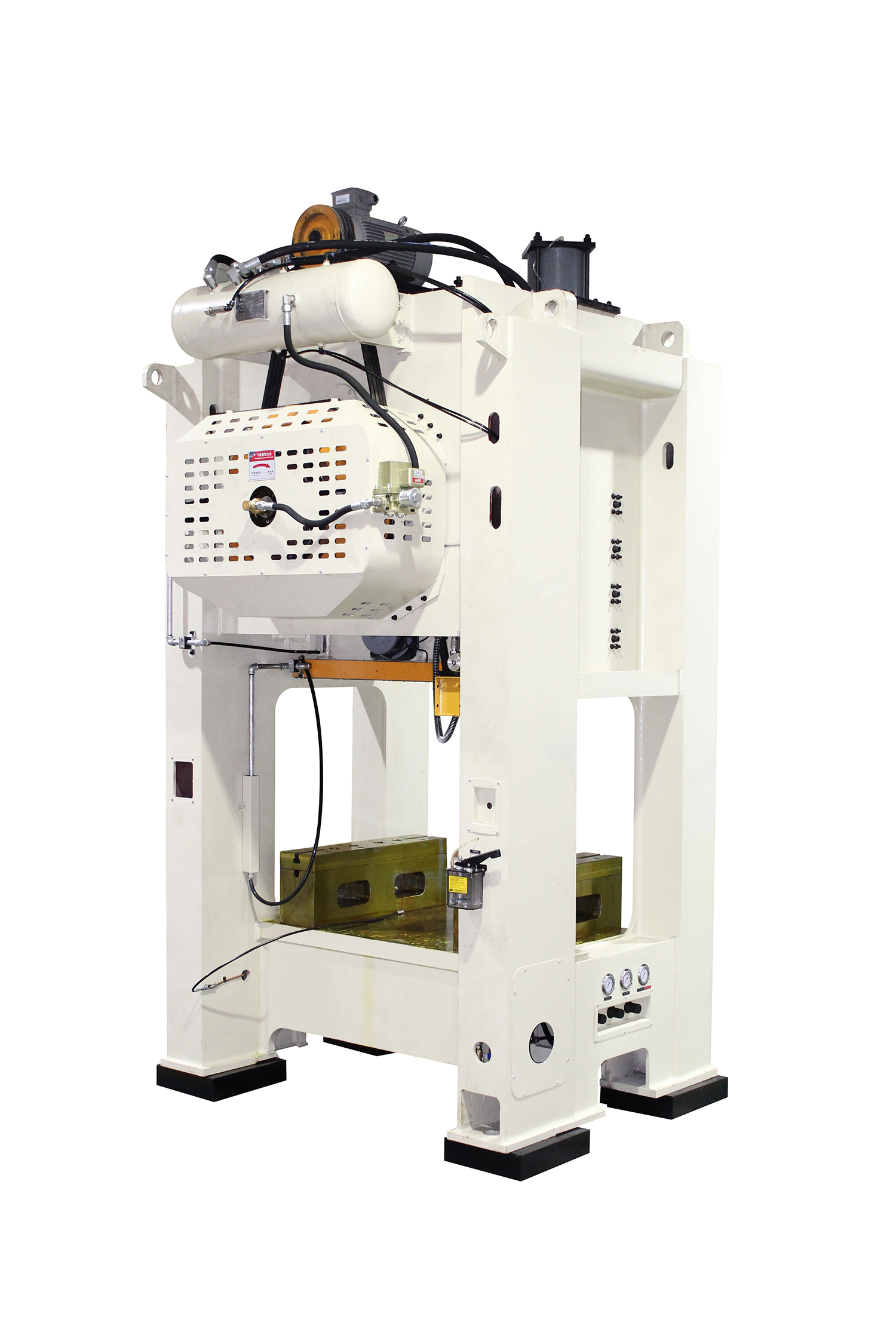

4.NC-1300 pneumatic press
5.Auto-stacker or conveyor (with a scrap collector)
6.Collection desk

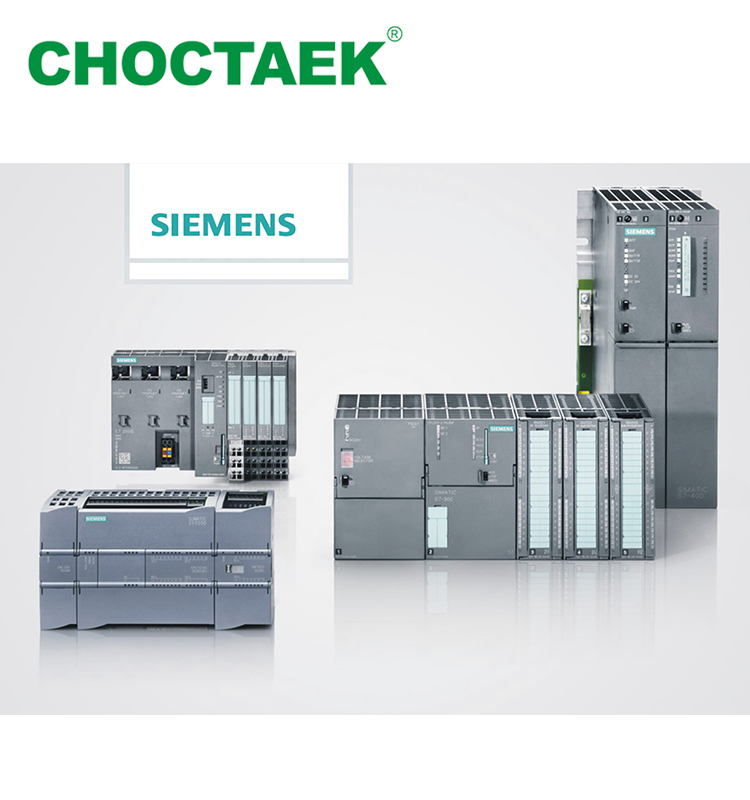

The aluminum foil container machine features a user-friendly PLC controlling system, making it easy to set feeding length, production speed, and other parameters. The integration of air pressure and electrical centralized control ensures automated production for improved efficiency.
Strokes | 35-65 times/min |
Voltage | 3-380V/50HZ/ 4 Wires |
Expansion Shaft | Φ3 inch/6 inch |
Max. Foil Width | Φ1000mm |
Length of Stroke | 220mm(custom-made 200/250/280mm) |
Max Mould Closed Height | 500mm |
The Whole Production Line Space | 10*4.5*3.5M |
Air Consumption | 320NT/min |
