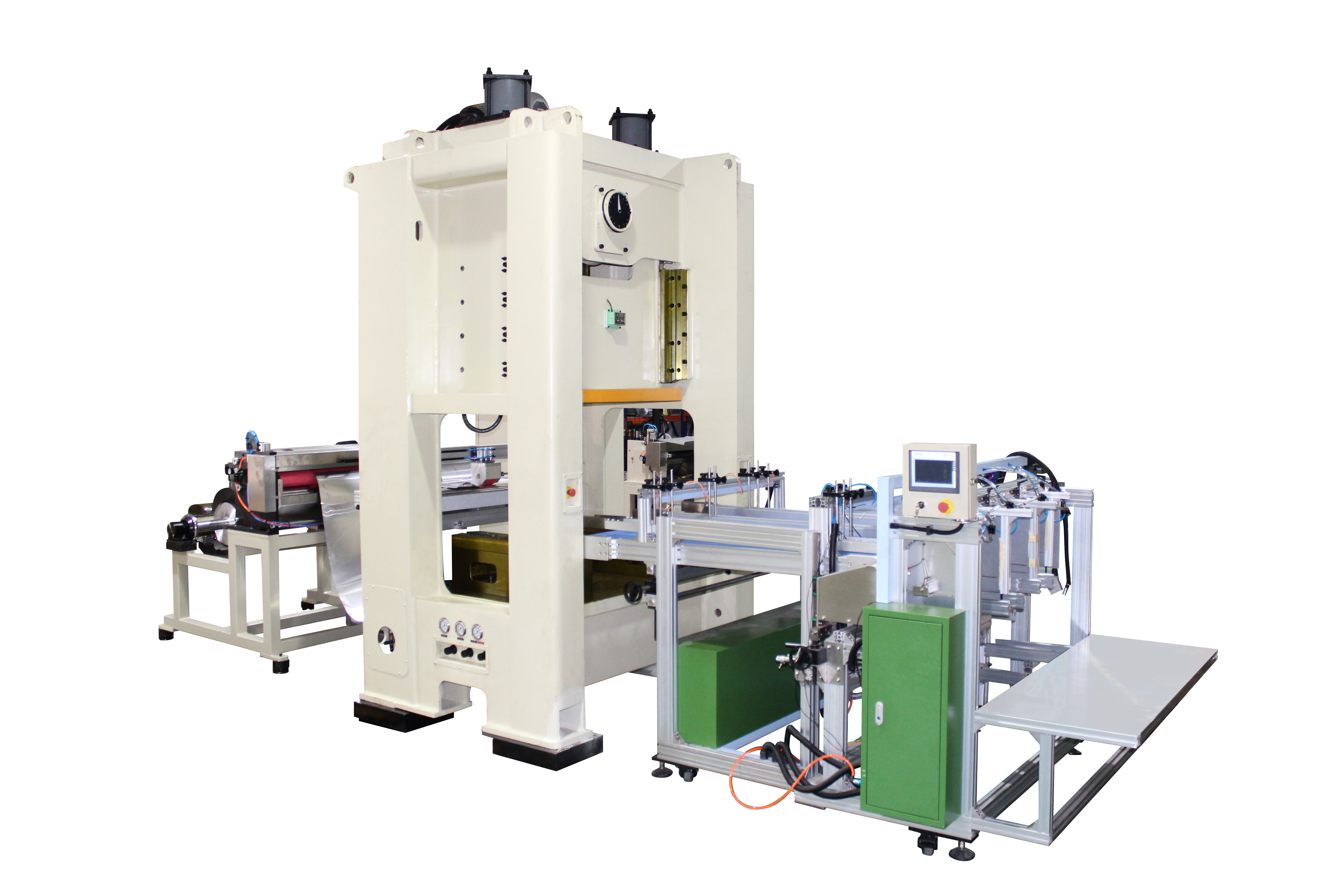

Complete Automatic Aluminium Container Lid Making Machine

Brand: CHOCTAEK
Product origin: Foshan, China
Delivery time: 30-60 days
Supply capacity: 10 sets / month

* A huge movable bed plate in this aluminium foil container making is equipped in this strong press, so it is easy and convenient to load the mould. * High precision sensors (SICK) are installed with this machine to ensure high sensibility and precision. * The press can be equipped with moulds for both wrinkle – wall and smooth – wall container production.

Email Annex

CHOCTAEK is a profeesional manufacter for making fully automaic aluminum foil container machine and molds in China. Our main product is fully automatic aluminum foil container machine NC-1300, C1000and moulds with high quality. Besides that, we can also provide aluminum foil containers OEM service based on your samples.

NC-1300 is our new style for aluminium foil bowl making machine and aluminium container lid making machine.

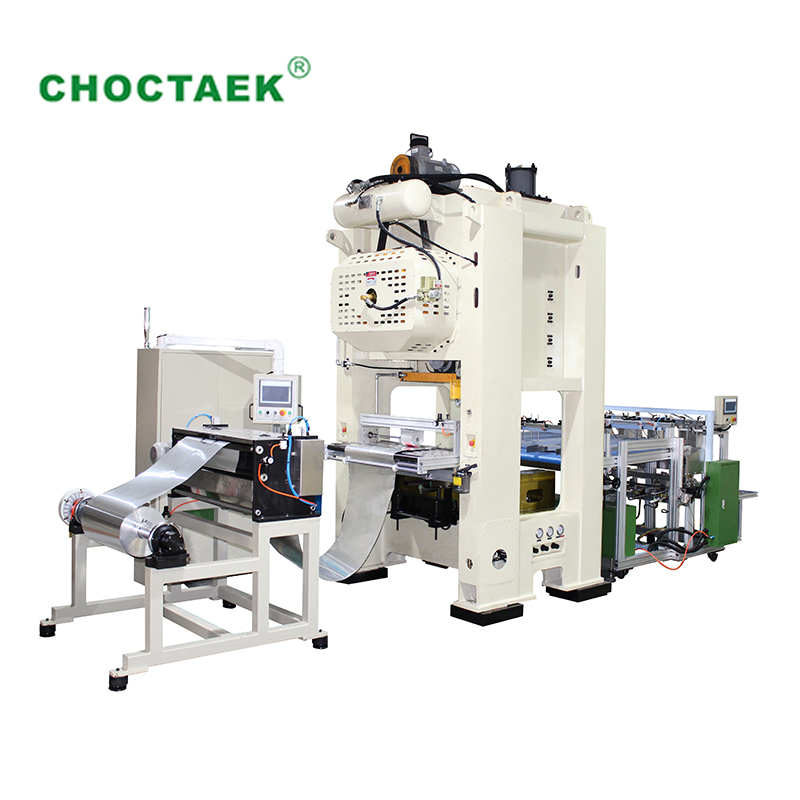

The aluminium foil container making machine includes the following components:

1.Decoiler (with an auto-lubricator)

2.Electrical control panel

3.Air output control equipment

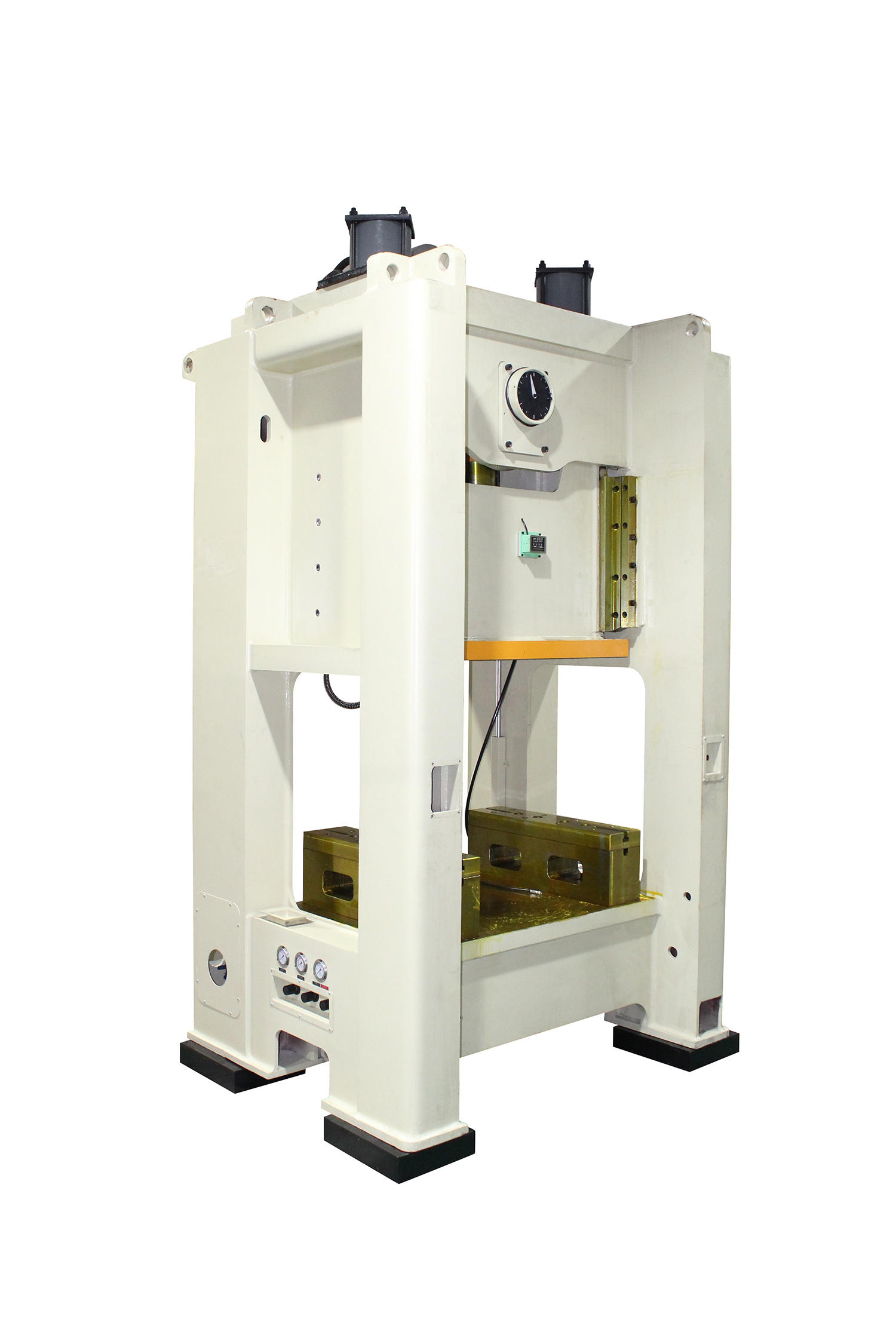

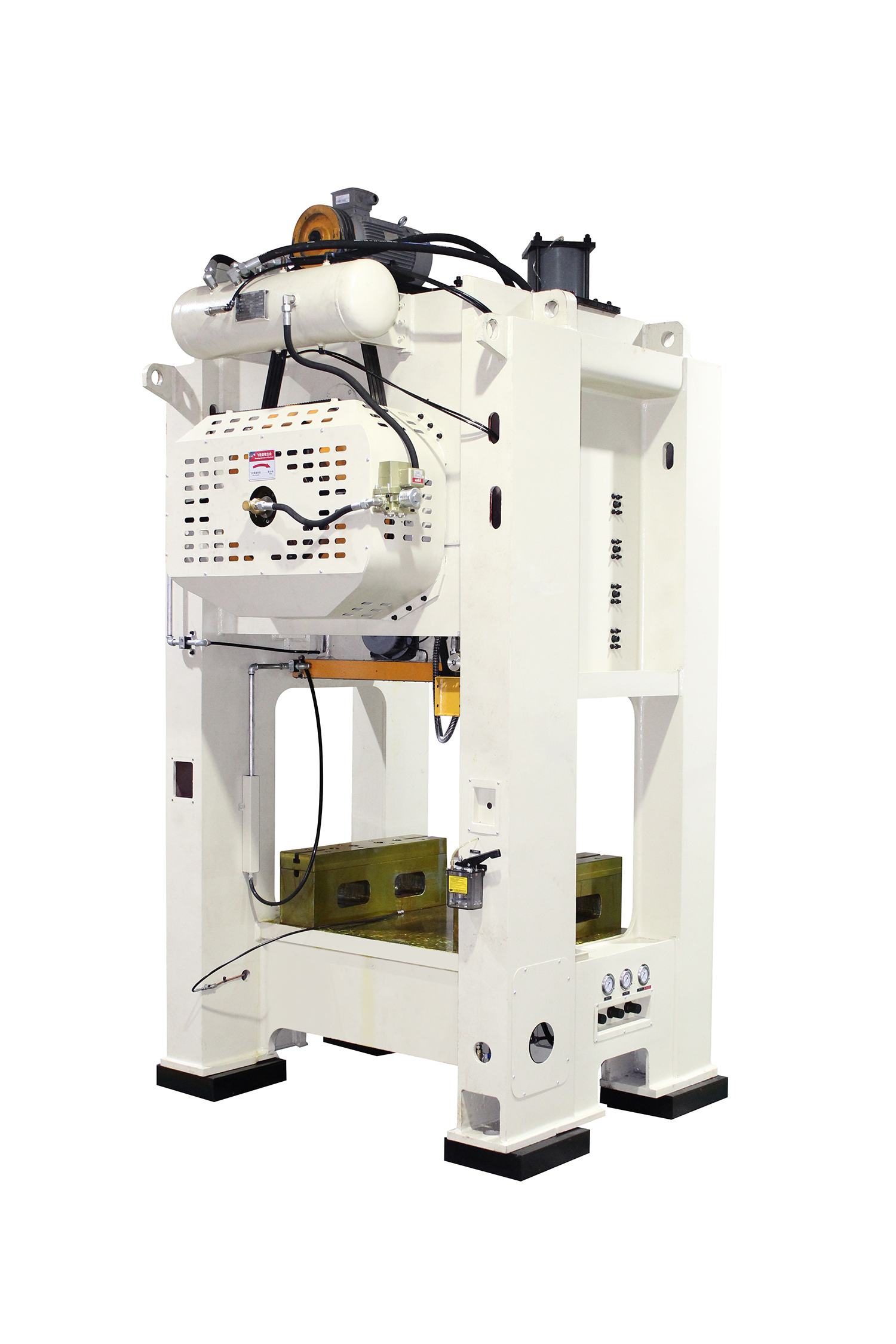

4.NC-1300 pneumatic press

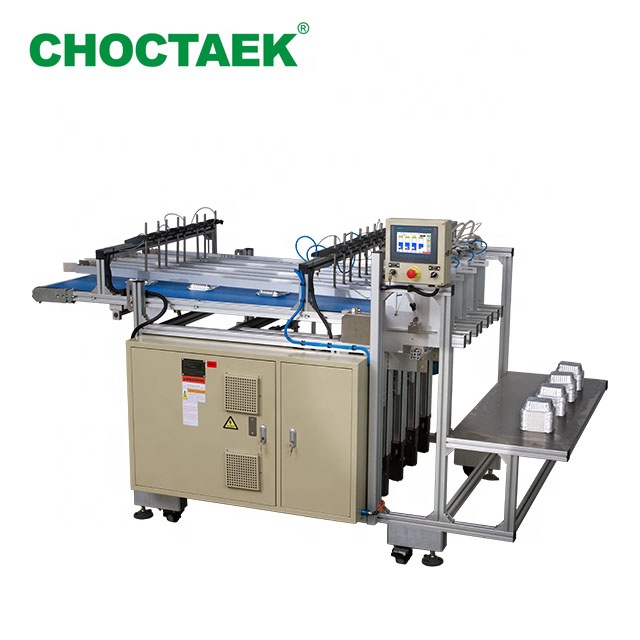

5.Auto-stacker or conveyor (with a scrap collector)

6.Collection desk

Our machine features a user-friendly PLC controlling system, allowing easy setting of feeding length, production speed, and other parameters. The integration of air pressure and electrical centralized control ensures automated production for enhanced efficiency.

Strokes	35-65 times/min
Voltage	3-380V/50HZ/ 4 Wires
Expansion Shaft	Φ3 inch/6 inch
Max. Foil Width	Φ1000mm
Length of Stroke	220mm(custom-made 200/250/280mm)
Max Mould Closed Height	500mm
The Whole Production Line Space	104.53.5M
Air Consumption	320NT/min
