Since 2003, our company has been specializing in mold and automation of Aluminum Foil Bowl Machine. We not only supply systems but also apply the principles of the aluminum foil container process. Our Semi-rigid container produciton line ensures the accuracy and stability of the entire production. Our experienced team is well-versed in both sectors of technology, guaranteeing Aluminum Foil Container Press Machine success and providing convenient after-service support.

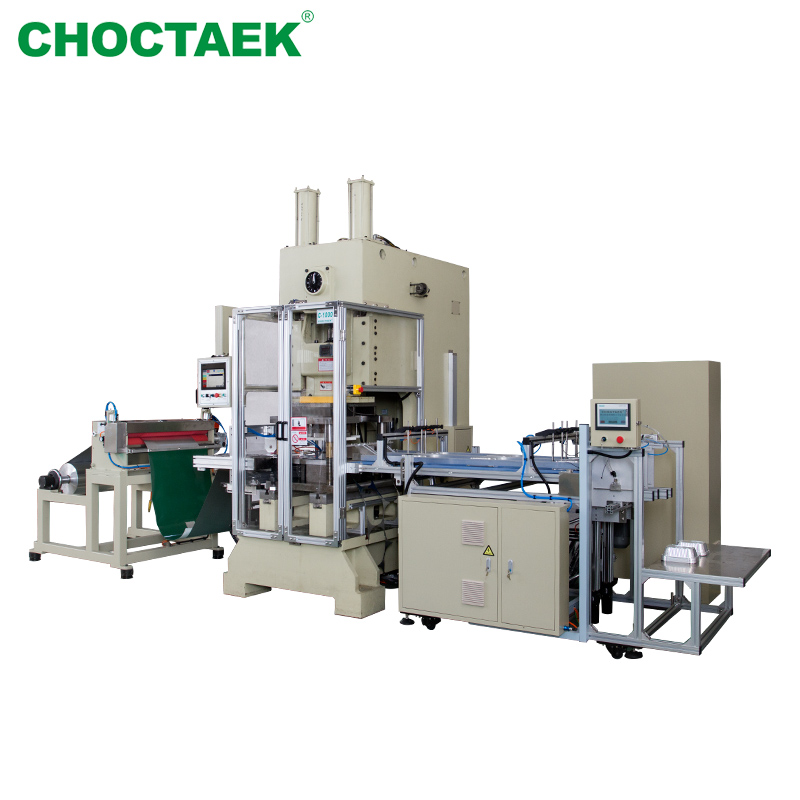

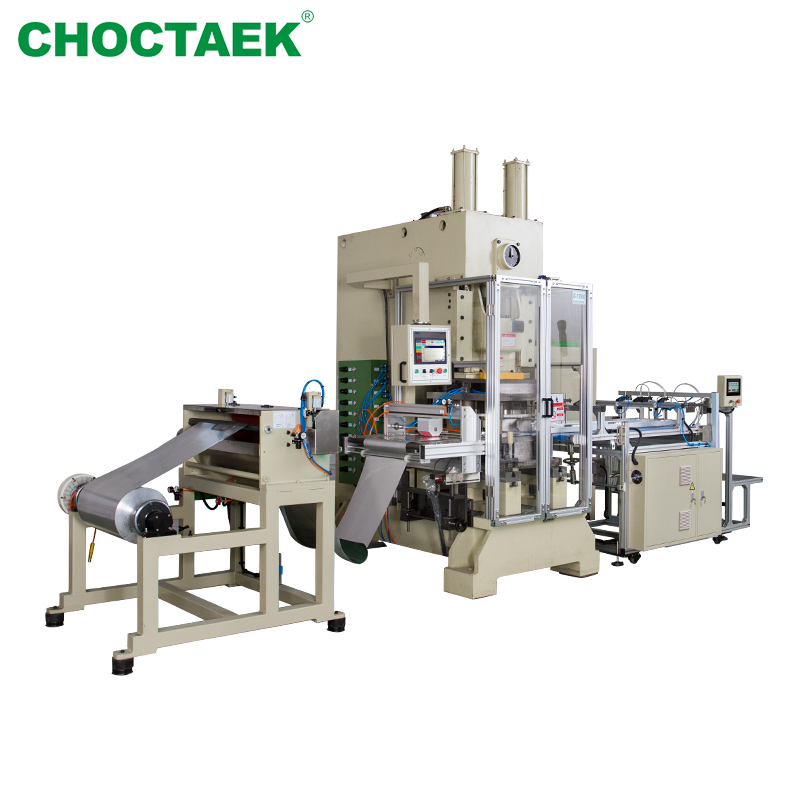

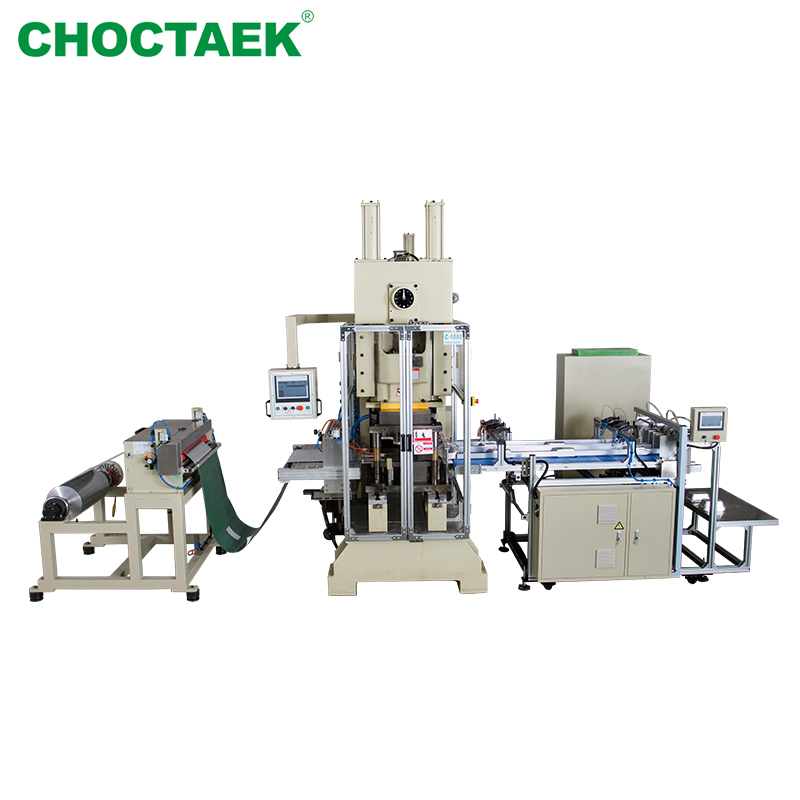

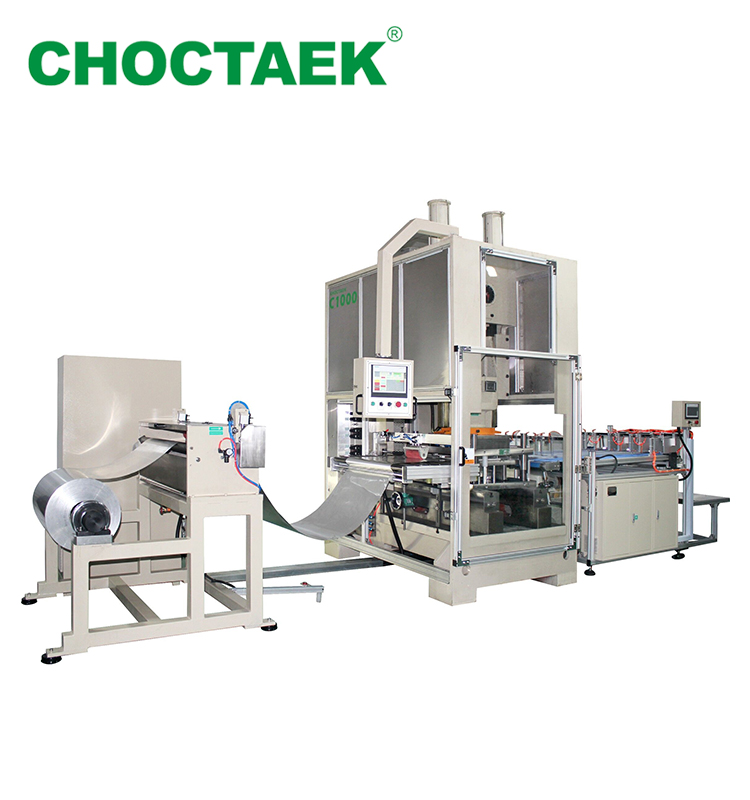

1.Fully automatic aluminum foil tray making machine is a production line,it is included:
1. Auto-lubricated foil feeder.
2. Length controller
3. Control panel.
4. Pneumatic press
5. Automatic stacker
6. Foil scrap aspirator system.
7. Foil scrap baler system (option).
This Aluminum Foil Container Press Machine adopts PLC as the controlling system,the feeding length, producing speed and other parameter are easily set, this integration of Air pressure& Electrical centralized control, automated production.
Here are the advantages of our Aluminum Foil Bowl Machine.
1.Very safe and long-lasting, with precise control of feeding speed.
2.Changing the mold is easy and convenient.
3.The Semi-rigid container produciton line remembers settings for each mold.
4.Works well for various mold sizes, from large single-cavity to medium and small multi-cavity molds.
5.Electrically adjustable ram height to accommodate different shapes and sizes of molds.
6.Stacker has a unique roller design for stronger stability.
7.Automatic emergency stop with detection.
8.Adjustable lane width to fit different-sized containers when stacking
Strokes | 35-65 times/min |
Voltage | 3-380V/50HZ/ 4 Wires |
Expansion Shaft | Φ3 inch/6 inch |
Max. Foil Width | Φ800mm |
Length of Stroke | 220mm(custom-made 200/250/280mm) |
Max Mould Closed Height | 450mm |
The Whole Production Line Space | 6.5*2.2*3.3M |
Air Consumption | 300NT/min |
