Aluminium Foil Container Press Line Product Details:
Minimum Order Quantity | 1 Unit |
Weight | 1 Ton |
Feeding Speed | 1 - 35 m/min |
Feeding Length | 20 - 999 mm |
Feeding Accuracy | +/-0.3mm |
Power Supply | 3-380V, 50 Hz |
Automatic Grade | Automatic |
Power Consumption | 5 - 7 kW |
Product Details:
Minimum Order Quantity | 1 Unit |
Weight | 6000-8000 kg |
Power Supply | 3-380V, 50Hz |
Power Consumption | 7.5 kW |
Automatic Grade | Automatic |
Enriched with the great expertise of skilled professionals Automatic Aluminum Foil Container Making Machine is one of our demanded products in the market. We offer this machine to our clients at leading market prices. In addition to this, smooth functioning and simple way of operating are other qualities of this machine.
Company Information :
From 2003-2023,CHOCTAEK have exported 45T ,60T, 80T Aluminum Foil Container Pneumatic Punching Machine and more than 3000 sets moulds to more than 40 countries and offer service to 90 companies. We continuously offer technical support and consulting service to new customers.
Aluminium Foil Container Press Line Details:
Minimum Order Quantity | 1 Set |
Material | Aluminum |
Condition | New |
Automation Grade | Automatic |
1) Pressure: 600KN
2) Body work plate hole dimension: 300*300mm
3) Stroke time: 70-100times/min
4) Stroke height: 220-280mm
5) Work plate thickness:100mm
6) Max. die Installation height:490mm
7) Dimension of slide block bottom:480*400mm
8) The distance from the center of slice to the body: 340mm
9) The height adjustment for die: 80mm
10) Die handle hole dimension: ￠60mm
11) Work plate dimension: 1000*1000 mm
12) Dimension: 1915*1350*2800mm (L*W*H)
13) Motor capacity:8KW
14) Net weight: 6500kg
15) Voltage:3-380V/220V 50Hz 44wires
Quick Detail:
1.Feeding, punching, lubrication, scrap collecting, container collecting automatically.
2.Very reliable as the controlling system adopts Siemens CPU 224 programmable logic controller (PLC).
3.It is integration of Gas & Electrical, centralized control, so feeding length, speed and other parameters are easy to set.
4.Manual setting of the feeding length from 20 to 999mm by yourself.
5.With automatic lubrication system and material could lubricate automatically.
The features are feeding accuracy, coating even, saving material, high accuracy, neat appearance, easy to install, operate, maintain, little noise, as a result, it is the ideal equipment for aluminum containers making.

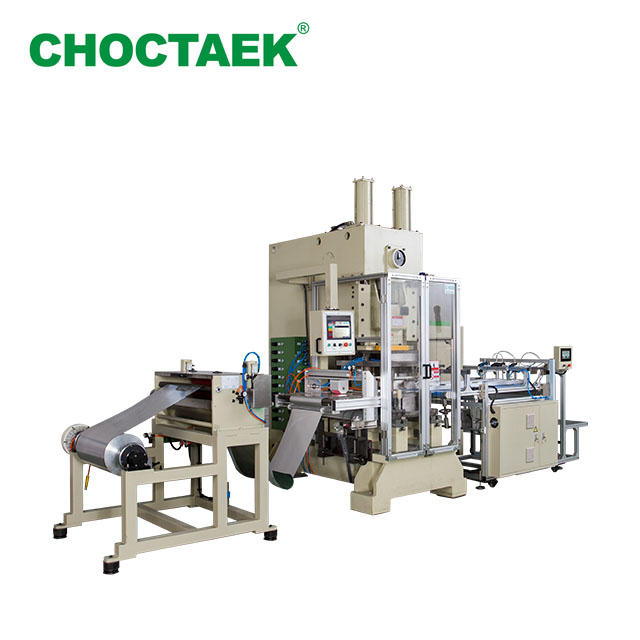

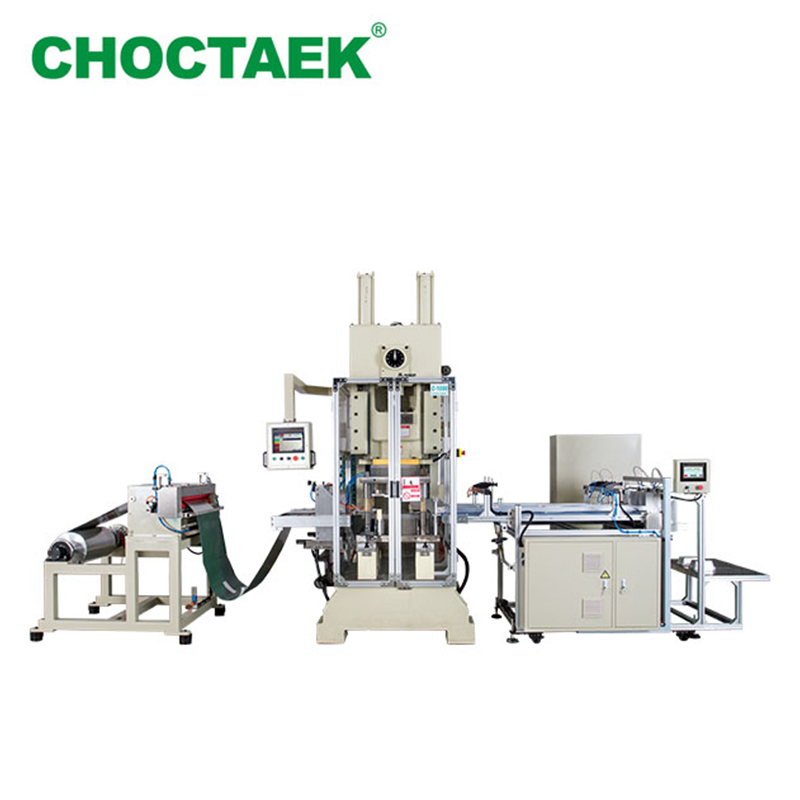

Aluminum Foil Bowl Machine Units Included:
1. Auto-lubricated feeder
2. Touch screen controlled panel
3. 60Ton H type Pneumatic Press
4. Cavities Mould of any shape container

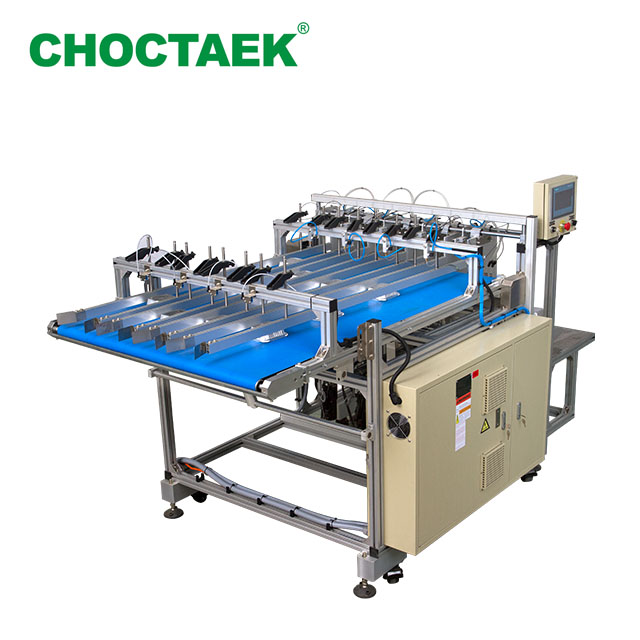

5. Automatic stacker
6. A forklift assist to change mould and raw material
7. Scrap sucker+Scrap presser (One Presser work with 2 Sucker)
Aluminum Foil Bowl Machine Technical data:
Max. Mould Size: 900*900mm;
Efficiency: 45-85 times/min;
Stroke: 220~280mm;
Press Work Plate Dimension: 1000*1000mm;
Production Line Total Power: 30KW;
Production Line Total Size: 1000*4500*4500mm;
1.Aluminum Foil Container Pneumatic Punching Machine Operating Requirements :
1. Pressure : 600 KN
2. Working table Dimension : 1000* 1300 mm
3. Stroke time : 40 - 80 times/min
4. Stroke Height : 220-280mm
5. Work Plate thickness : 100mm
6. Max die installation height : 450mm
7. Motorised Slide Adjsutment
8. The distance from the center of slice to the body : 480
8. Dimension : 1000*4500*4500mm(L*W*H)
9. Motor Capacity : 9-11kW
10. Net Weight : 7000kg
2 .Features of Aluminum Foil Container Pneumatic Punching Machine
1) High quality and long life
2) Easy to operate and control
3) Can be equipped with various moulds
4) Good after sales services
