Product Name:

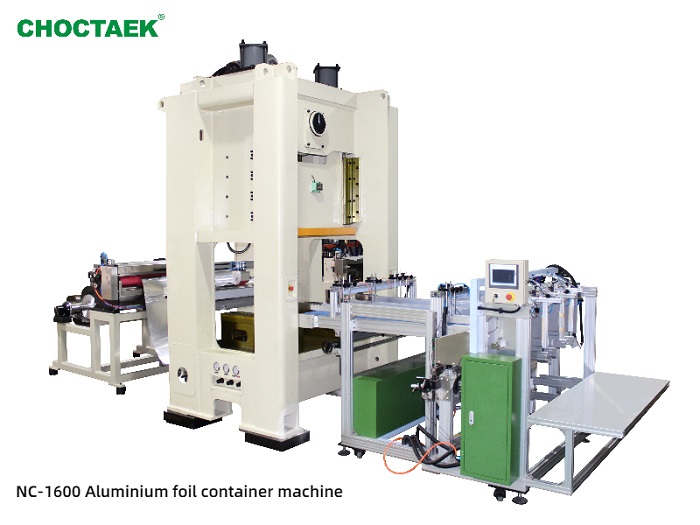

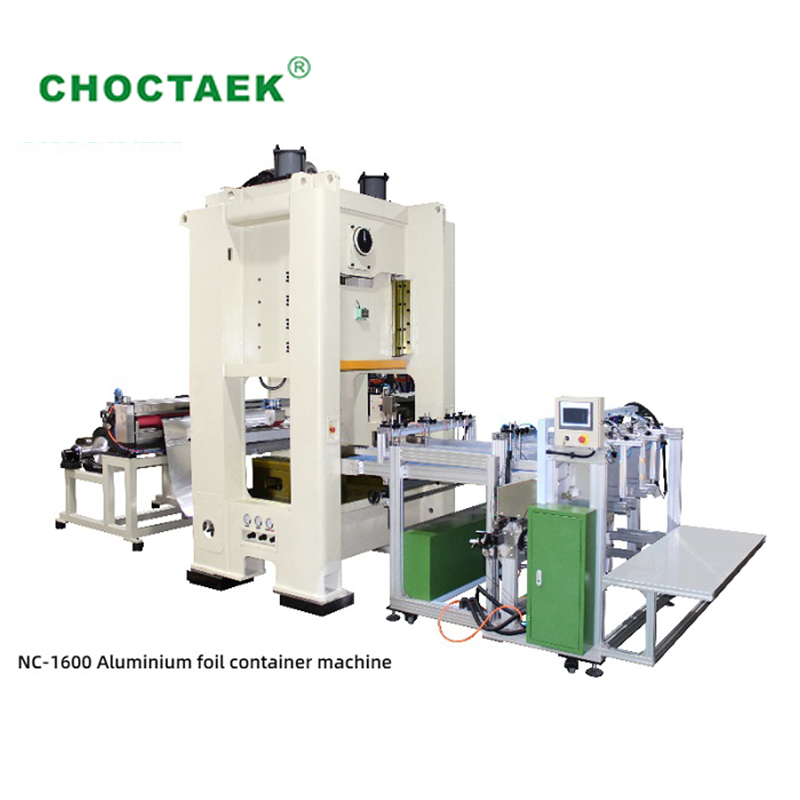

Automatic Aluminium Foil Container Making Machine
Components of the production line:

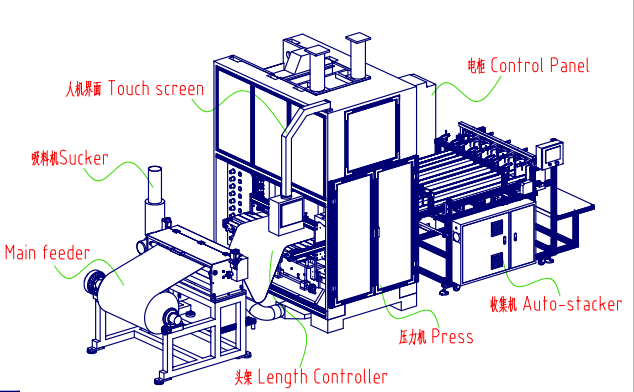

We provide the whole solution of aluminum foil container production line and mould to help customers to start the business of aluminium foil product. This complete aluminium foil container production line includes: Auto- lubricated foil feeder, Control panel, Length of controller, Punch machine, Automatic stacker, Mould and Foil scrap collecting system.
Main Parameters:
Items | Specification |
Strokes | 35-70 times/min |
Stroke length | 220/250/280mm (can be customized) |
Total weight | 11ton |
Voltage | 3-380V |
| Motor capacity | 12KW |
Press dimension | 1.2*1.8*3.3m |
Expansion shaft | Ø3 inch/6 inch |
Max. foil roll outer dia | ≥Ø700 mm |
Max. foil width | 1000mm |
Working table dimension | 1300*1000mm |
Max. mould dimension | 450mm |
Slide area dimension | 320*145mm |
space | 10*4*4.5m |
Product Features & Advantages:
1. The tension of the air expansion shaft is controlled by ultrasonic waves, which can detect the diameter of the aluminum foil roll and automatically adjust the brake tension.
2. The operation control panel is equipped with a large 10inch Siemens touch screen, which can quickly set machine parameters and realize the visualization of the production process.
3. The main electrical appliances are from well-known brands such as Germany Simens & Schneider and Japan's Samco.

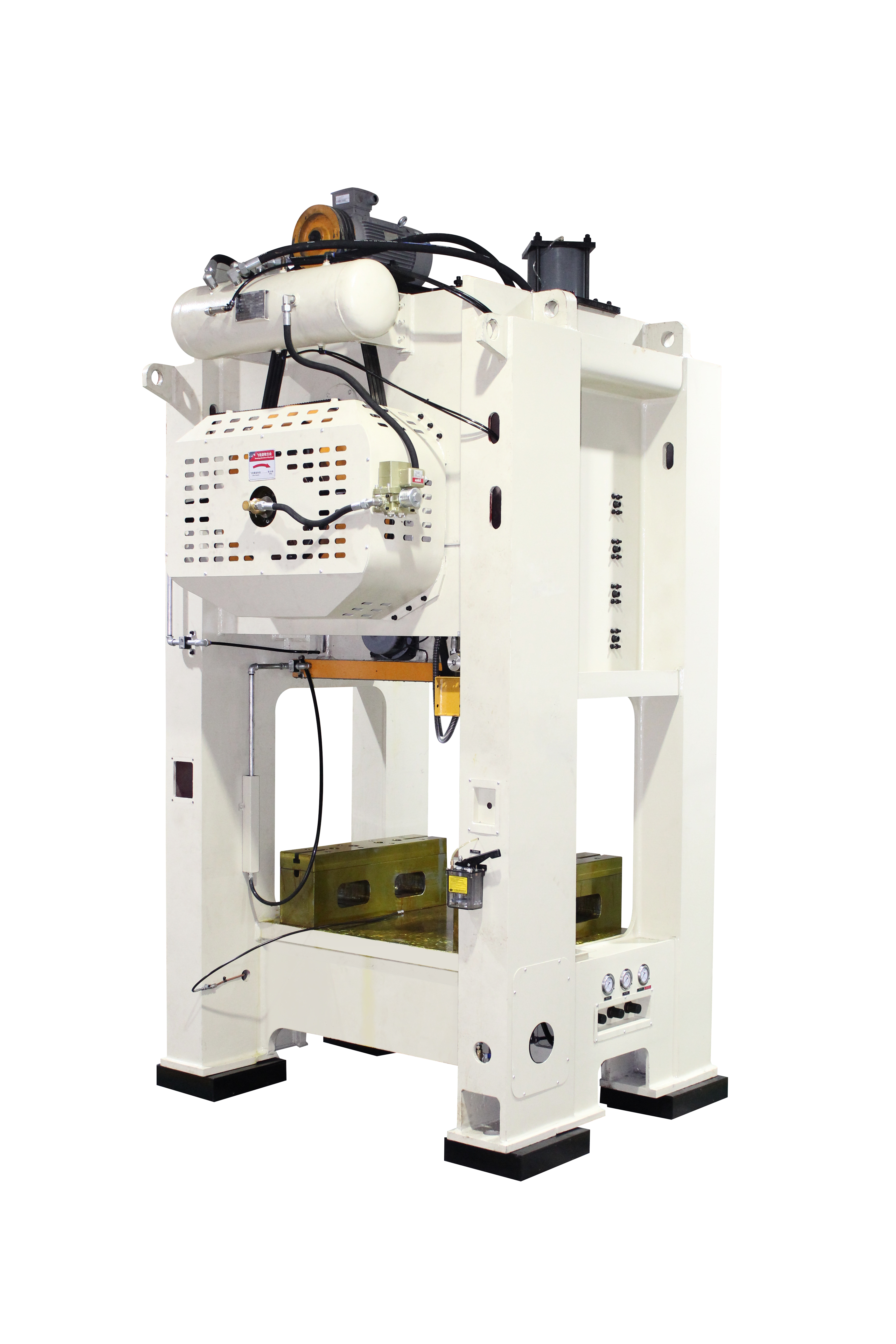

4. A large movable worktable is installed on the punch of this powerful aluminum foil container production machine, which can easily load and unload the mold.
5. High-precision sensor (Germany brand SICK) to ensure high sensitivity and accuracy.

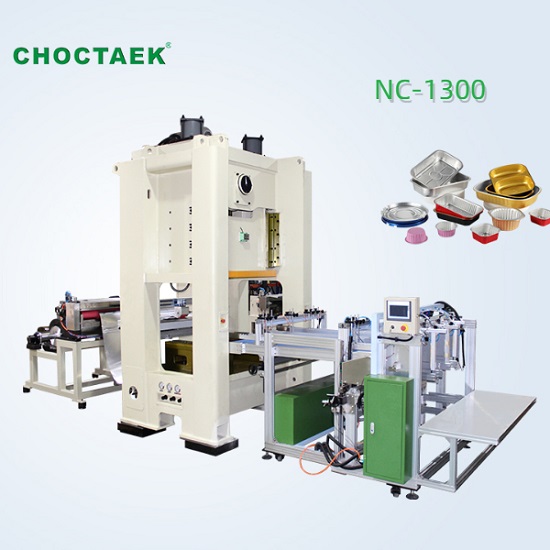

6. Our aluminium foil container machine NC-1300 Can produce ordinary smooth-wall foil container, wrinkle-wall foil container and special customized aluminium foil product.

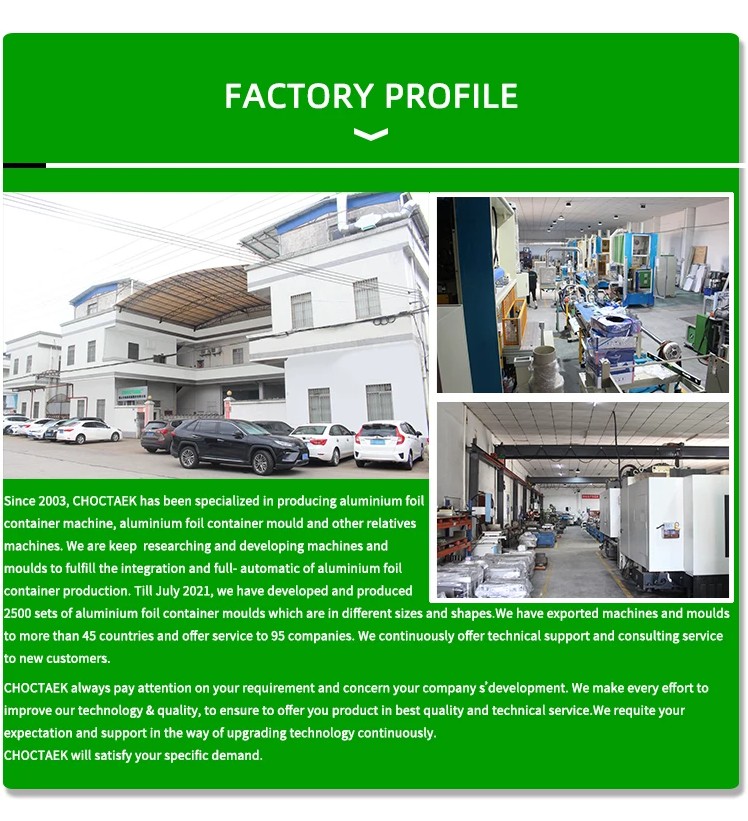

Factory and work shop show:
Choctaek Machinery Mould Limited is one of the best professional factory to manufacture and design the aluminum foil container machine and mould in China. We have more than 20 years’ experience in this field with customers from all around the world.
We would like to introduce ourselves as a reliable partner for the development of advanced solutions for the production of aluminium foil containers by providing the best proposal at the most competitive price.
We have two workshop, one is for aluminium foil container moulds processing, assembly and manufacturing. Another is for aluminium foil container machine assembly, manufacturing and testing.
