Product Name:

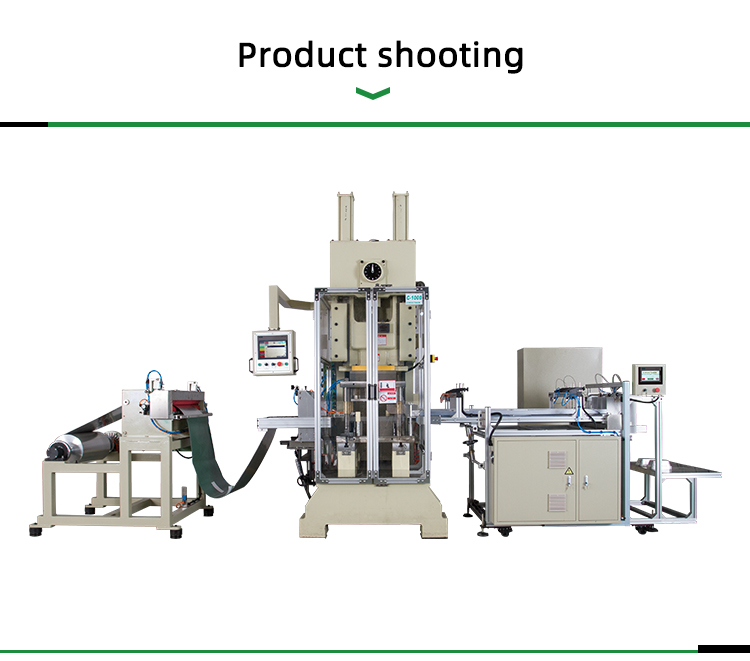

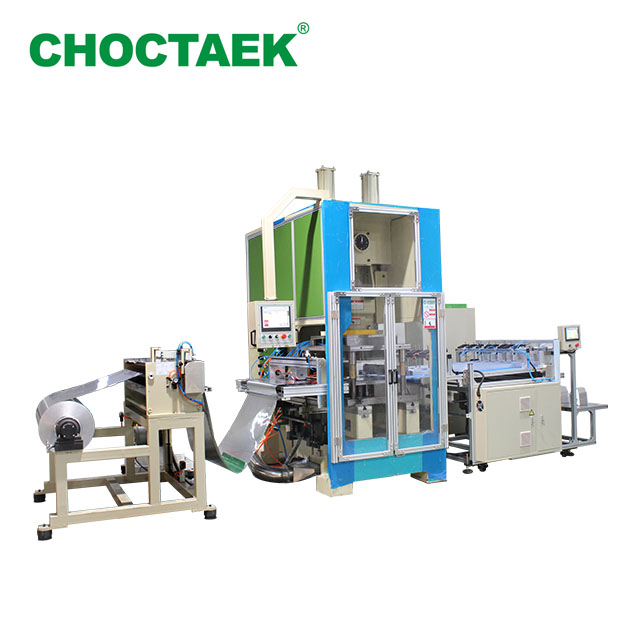

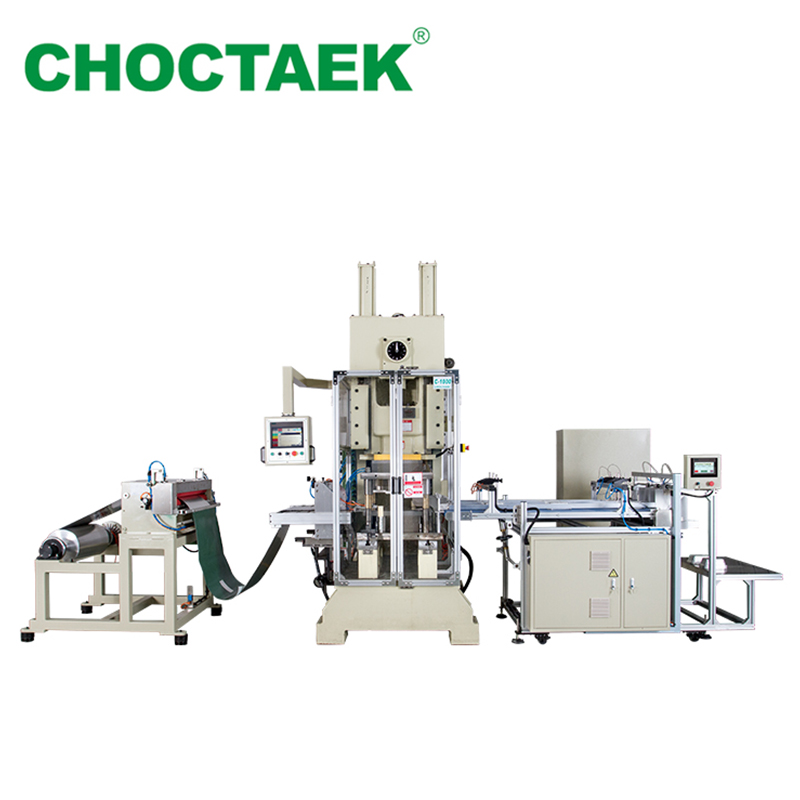

C-1000 Aluminium Foil Container Making Machine
Product Features:

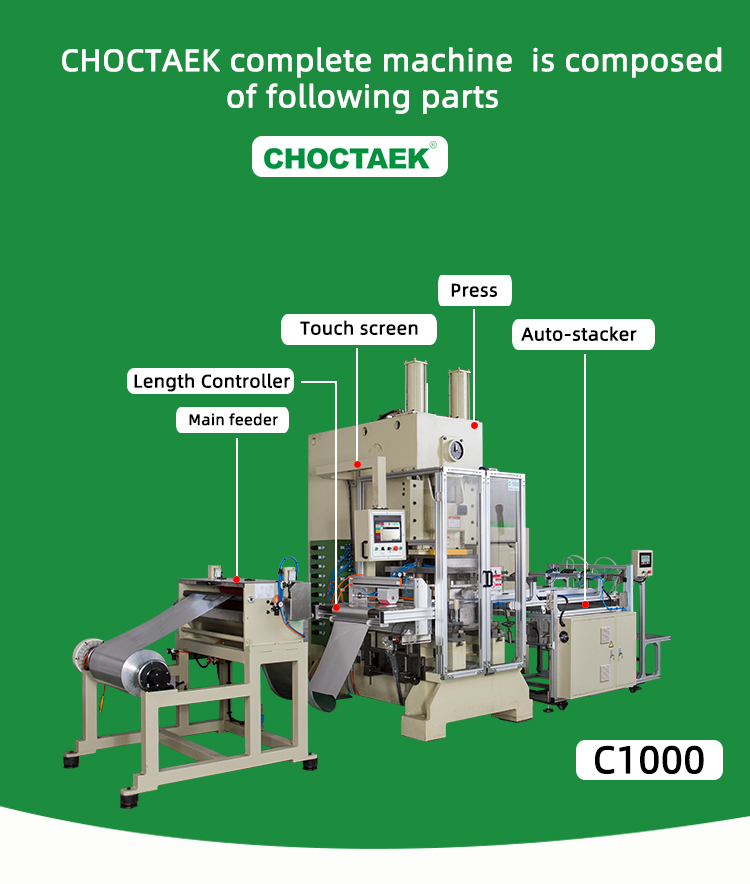

This C-1000 aluminium foil container machine is C type punch, and you can choose fully automatic or semi automatic production line. The different between full-automatic and semi-automatic is whether equipped with automatic stacker.
The aluminum foil food container production line punches aluminum foil rolls into different size and different shape of aluminum foil container and aluminium foil product through a combination of punch machines and aluminium foil container molds.
Main Parameters:
Items | Specification |
Strokes | 35-70 times/min |
Stroke length | 220/250/280mm (can be customized) |
Total weight | 6.3ton |
Voltage | 3-380V |
| Motor capacity | 9KW |
Press dimension | 1.2*1.8*3.3m |
Expansion shaft | Ø3 inch/6 inch |
Max. foil roll outer dia | ≥Ø700 mm |
Max. foil width | 700mm |
Working table dimension | 1000*1000mm |
Max. mould dimension | 450mm |
Slide area dimension | 320*145mm |
space | 10*4*4.5m |
Customers Around the World:
CHOCTAEK exports Aluminium foil food container making machines and aluminium foil container moulds to more than 40 countries around the world, such as USA, Colombia, Brazil, UK, Italy, Turkmenistan, Egypt, KSA, UAE, India, Korea, Indonesia, Australia and so on.
Packing & Shipping
We made great protection packaging for aluminium foil container machine and aluminium foil container mould. We will use film to packed the machine and moulds, then put it to the heavy wooden box. Term of shipment is FOB or CIF.
