Aluminum Foil Container Machine For Different Size Box
1. CHOCTAEK Disposable aluminium foil container making machine in China mainly produce aluminium foil food containers, dishes & trays. The working speed is 40-80 PCS/min, and its speed depends on container’s size and complexity.
Both wrinkle and soomth wall with reverse curling are workable on our machine.
Full Rim, IVC Rim, Folded Rim, Reverse Rim all can be produced.
Just tell us which aluminum foil container do you require to produce, we will give the whole solution to you.

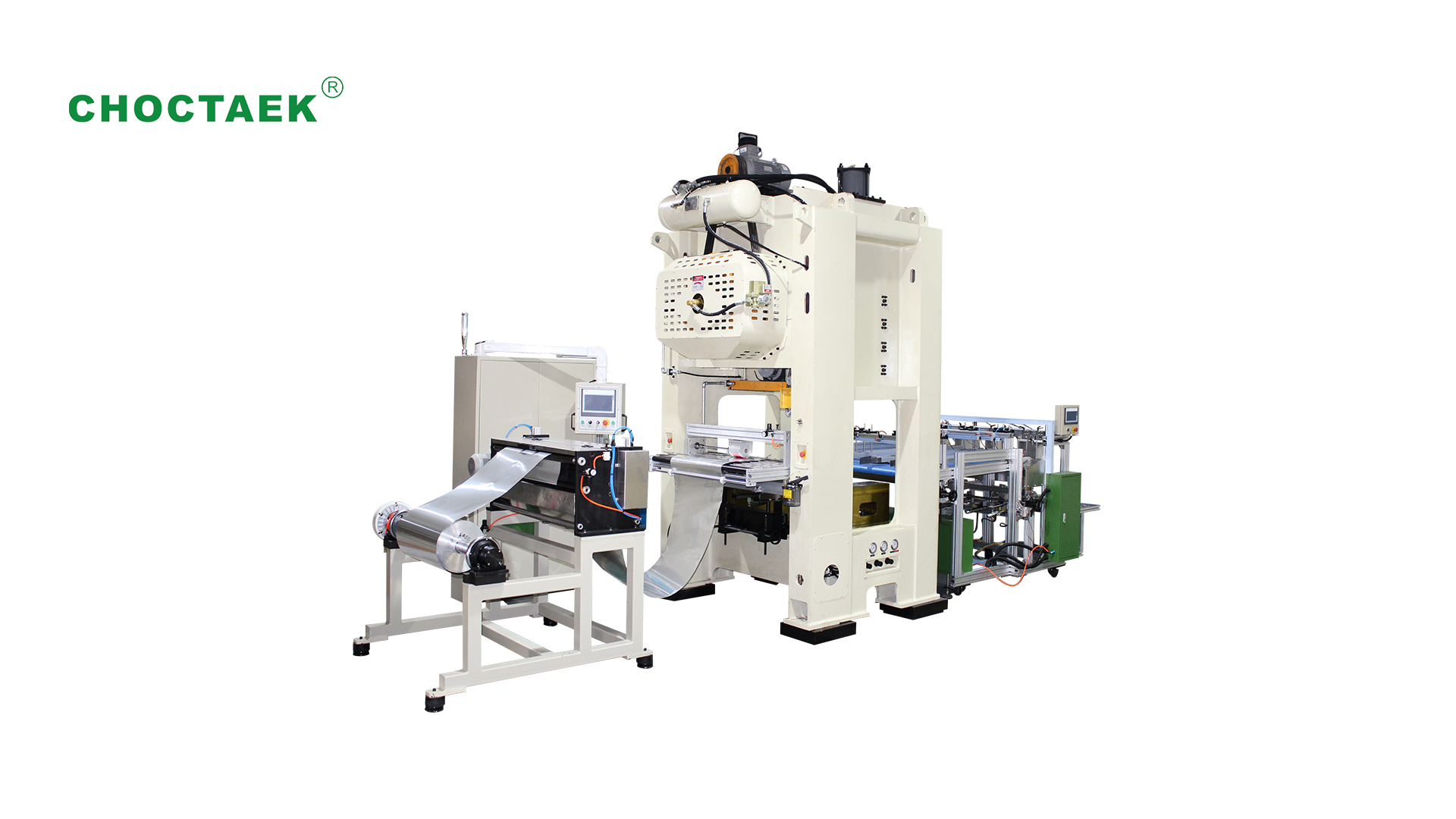

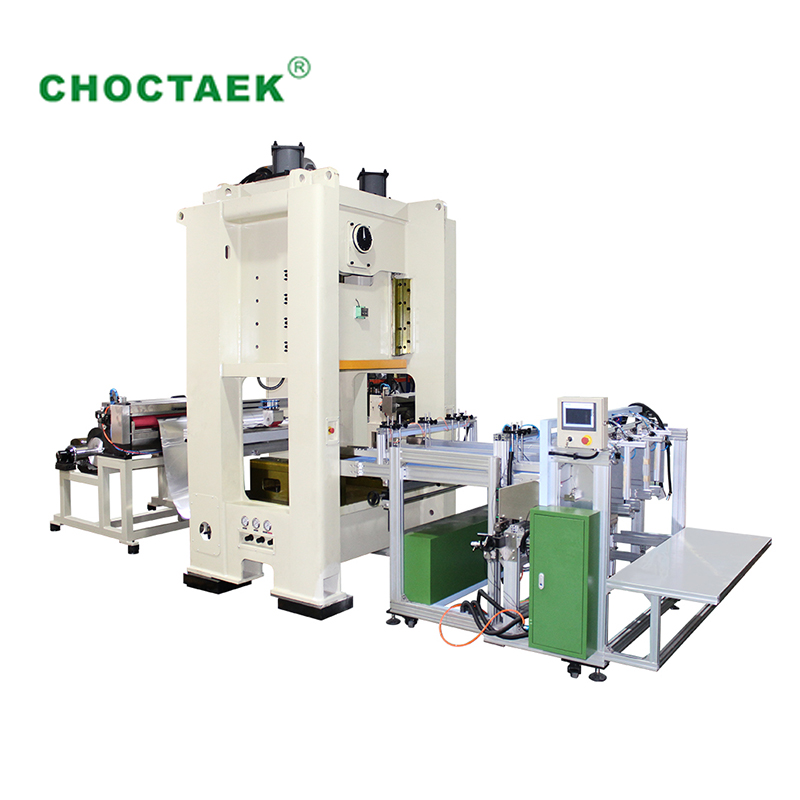

2. Complete Automatic Aluminium Foil Container Making Machine
Model: 80T NC1300 (Four Cavities or Five Cavities Capacity !)

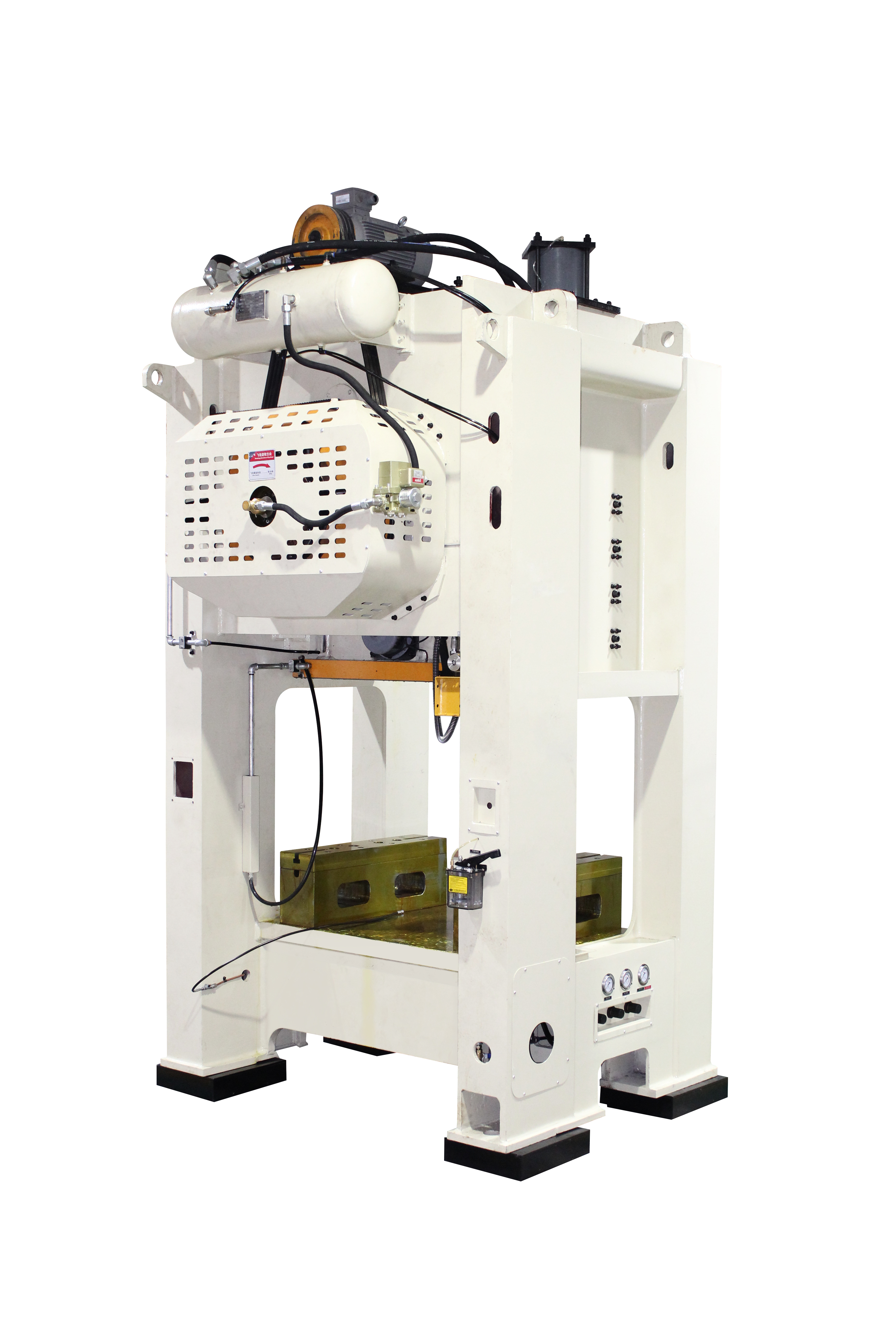

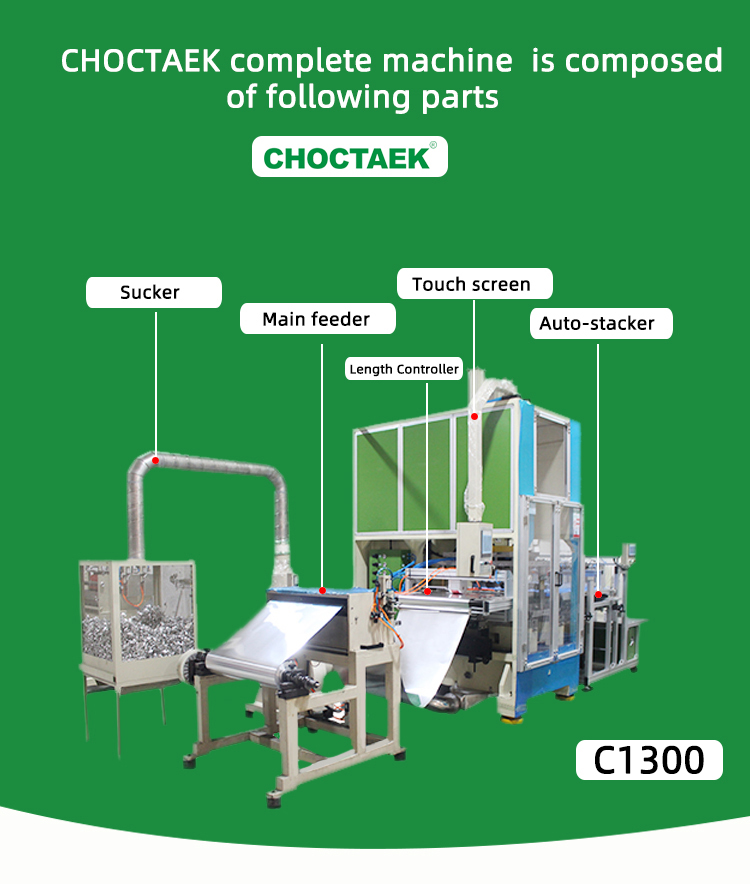

Units: Automatic Feeder+Automatic 80Ton H Type Press+Cavities Mould+Auto Stacker+Scrap Sucker & Auto Presser.
It fit for all common size Aluminum Foil Container production requested. The Big capacity could to cover big range of size products. Lower power requested than other old model machines.
3. Specification:
1.Raw material: Aluminum foil; Thickness: 0.030mm ~0.280mm;
Alloy: 8011,8006,3003,3005; Temper O ,H22,H24;
All above raw material can work on Foil Tray Making Machine
2.Good Japan's Inverter, PLC and 10inch Touch Screen control system;
3.Max. width of Aluminum foil: 1300mm;
4.Max. diameter of Aluminum foil: 700mm;
5.Core diameter of Aluminum foil: 76mm(152mm as Optional );
6.Working speed: 35-80 times/min;
7.Total Power: 11kw;
8.Compressed air needed: 0.5- 0.8 Mpa, 0.4m3/min;
9.Install dimension: 1000*4500*4500mm;
4. The different kinds lubricated oil of Aluminum Foil Container Production Line :
（1)The Balance cylinder oil hole& Gear box oil hole : N46 machine oil .
（2)Grease pump: No.00 lithium lubricant
（3）Overload protected oil hole： Y-B N32 hydraulic oil.
