Aluminium Foil Box Making Machine For Food Packaging

Brand: CHOCTAEK
Product origin: FOSHAN, CHINA
Delivery time: 55-60 DAYS
Supply capacity: 10 LINES/MONTH

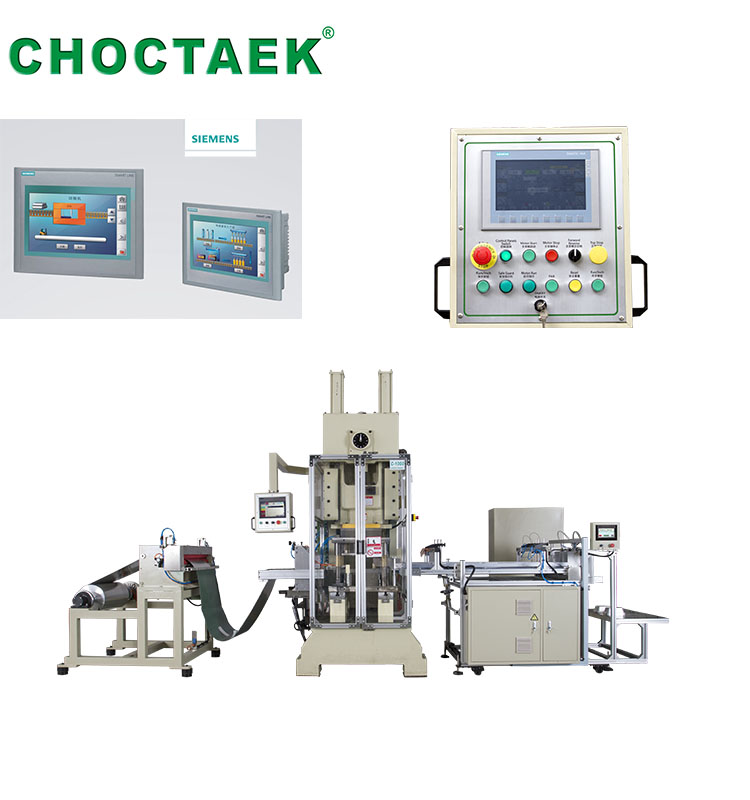

1. The tension of expansion shaft is controlled by ultrasonic, which can detect diameter of aluminum foil roll and adjust the brake tension automatically. 2. Aluminum foil container machine's operating control panel is equipped with a large touch screen (SIEMENS) allowing quick set up of machine parameter and visualization of production flow. 3. A huge movable bed plate is equipped in this food foil packaging press, so it is easy and convenient to load and unload the mould.

Email Annex

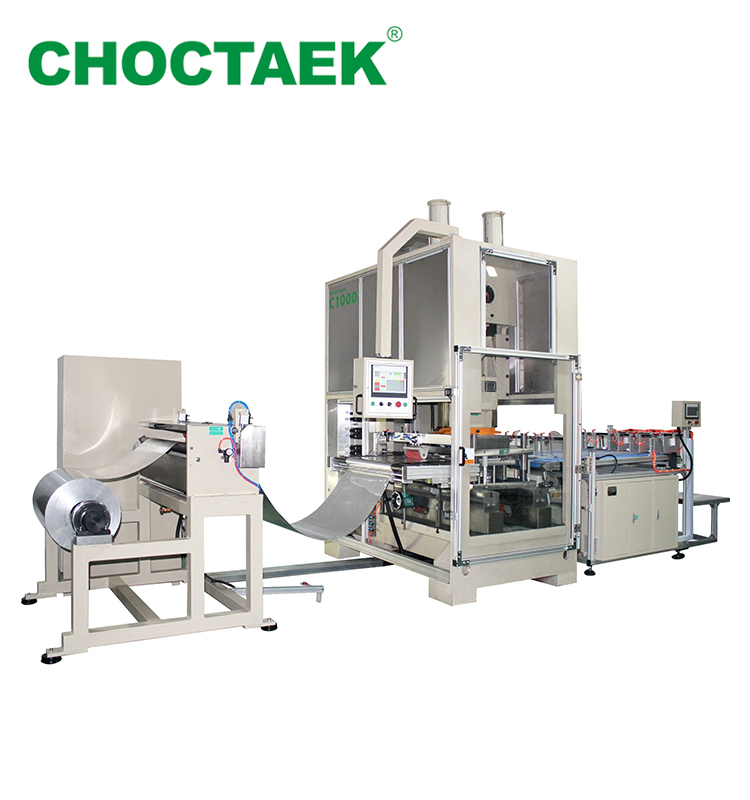

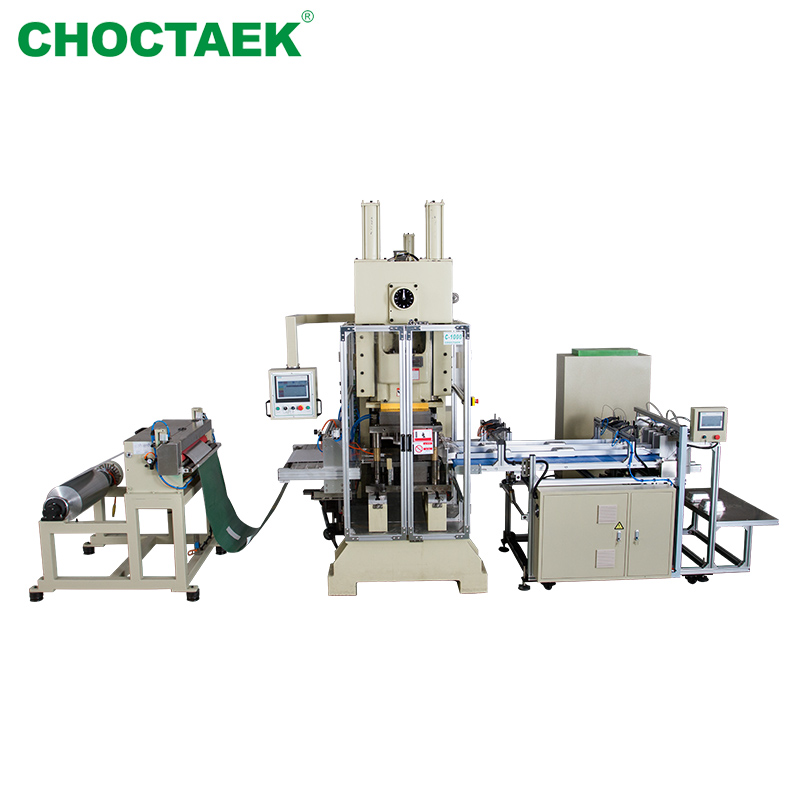

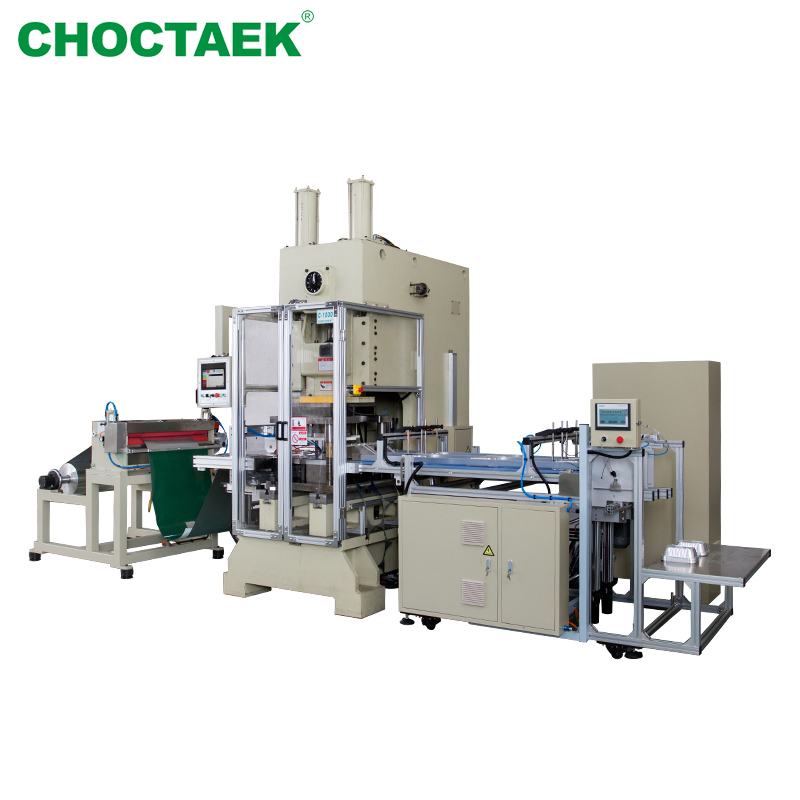

Aluminum foil container machine C-1000 is 60T press, upgraded model designed for the efficient production of aluminum food containers, pans, dishes, and trays. The machine operates at a speed of 40-65 pieces per minute (with a one-cavity mold) with its speed being dependent on the size and complexity of the container. The foil container machine can also be equipped with multi-cavity molds for enhanced productivity.

The aluminium foil box making machine includes the following components:

1. Automatic Feeder

2. Automatic 60T Press

3. Foil container mould

4. Auto stacker

5. Scrap sucker & Presser

The Food foil Packaging Press features a user-friendly PLC controlling system, allowing easy setting of feeding length, production speed, and other parameters. The integration of air pressure and electrical centralized control ensures automated production for enhanced efficiency.

Strokes	40-65 times/min
Voltage	3-380V/50HZ/ 4 Wires
Expansion Shaft	Φ3 inch/6 inch
Max. Foil Width	Φ700mm
Length of Stroke	220mm(custom-made 200/250mm)
Max Mould Closed Height	370-450mm
The Whole Production Line Space	104.54M
Air Consumption	320NT/min
