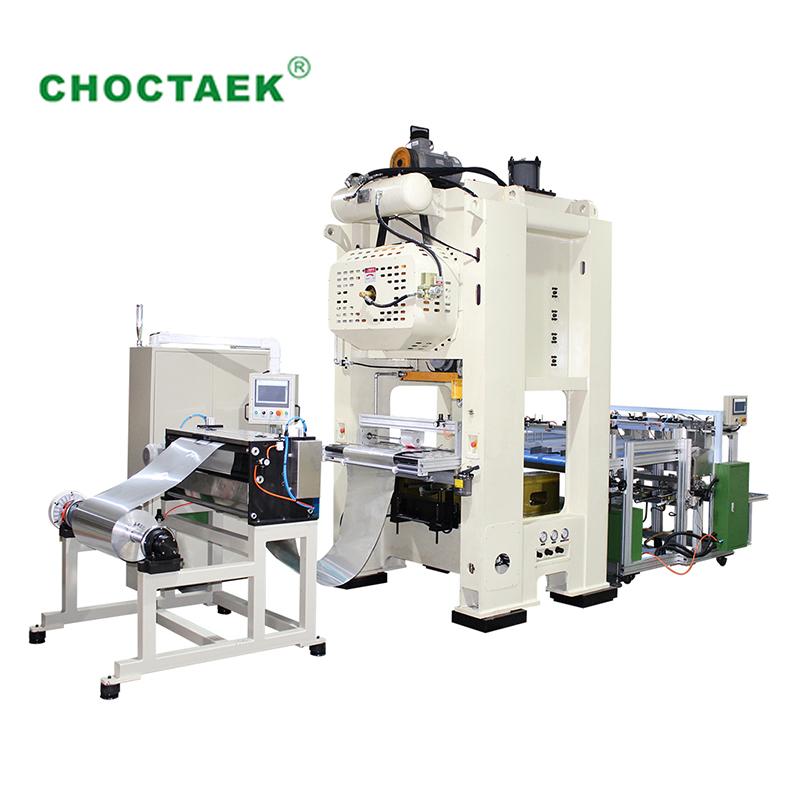

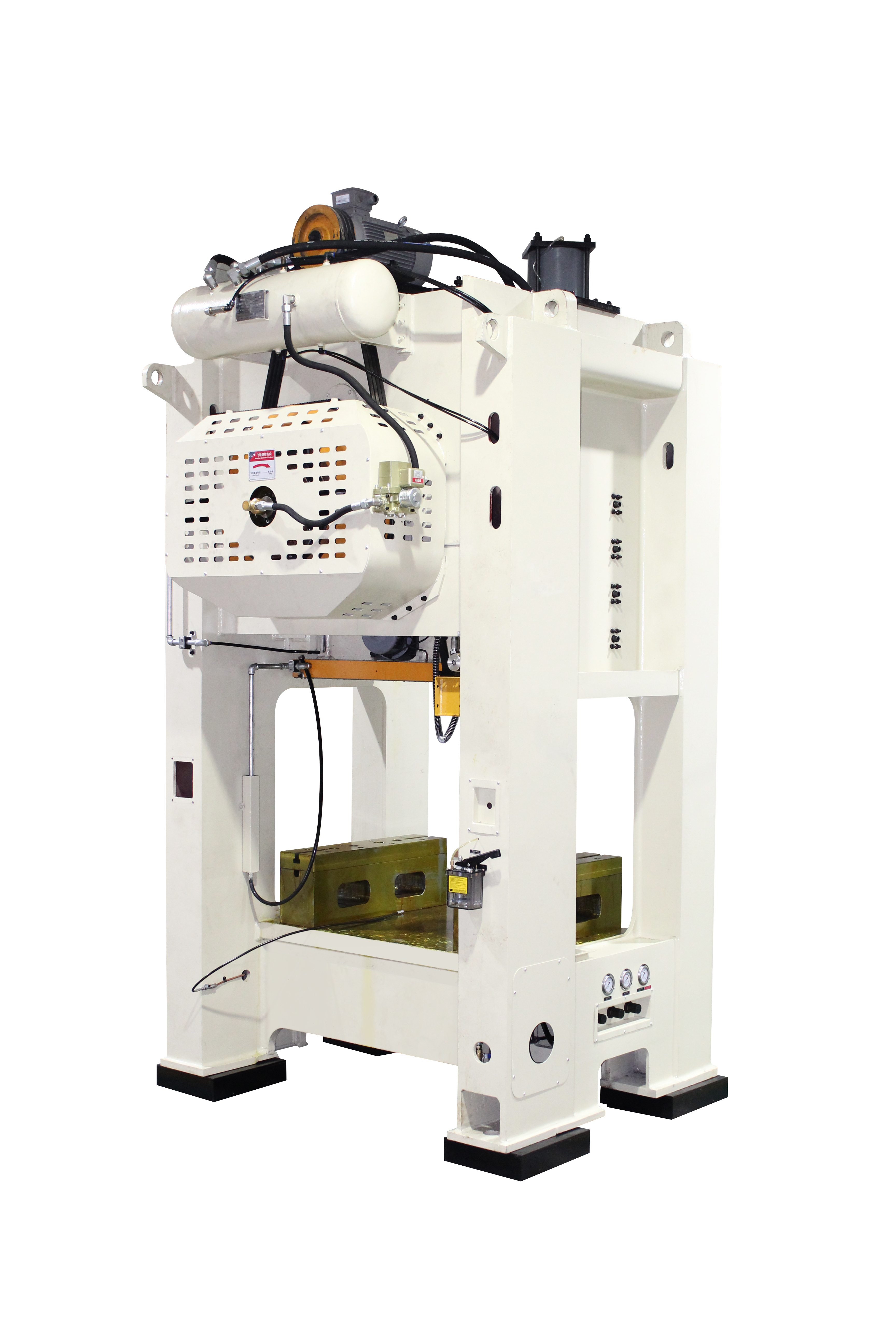

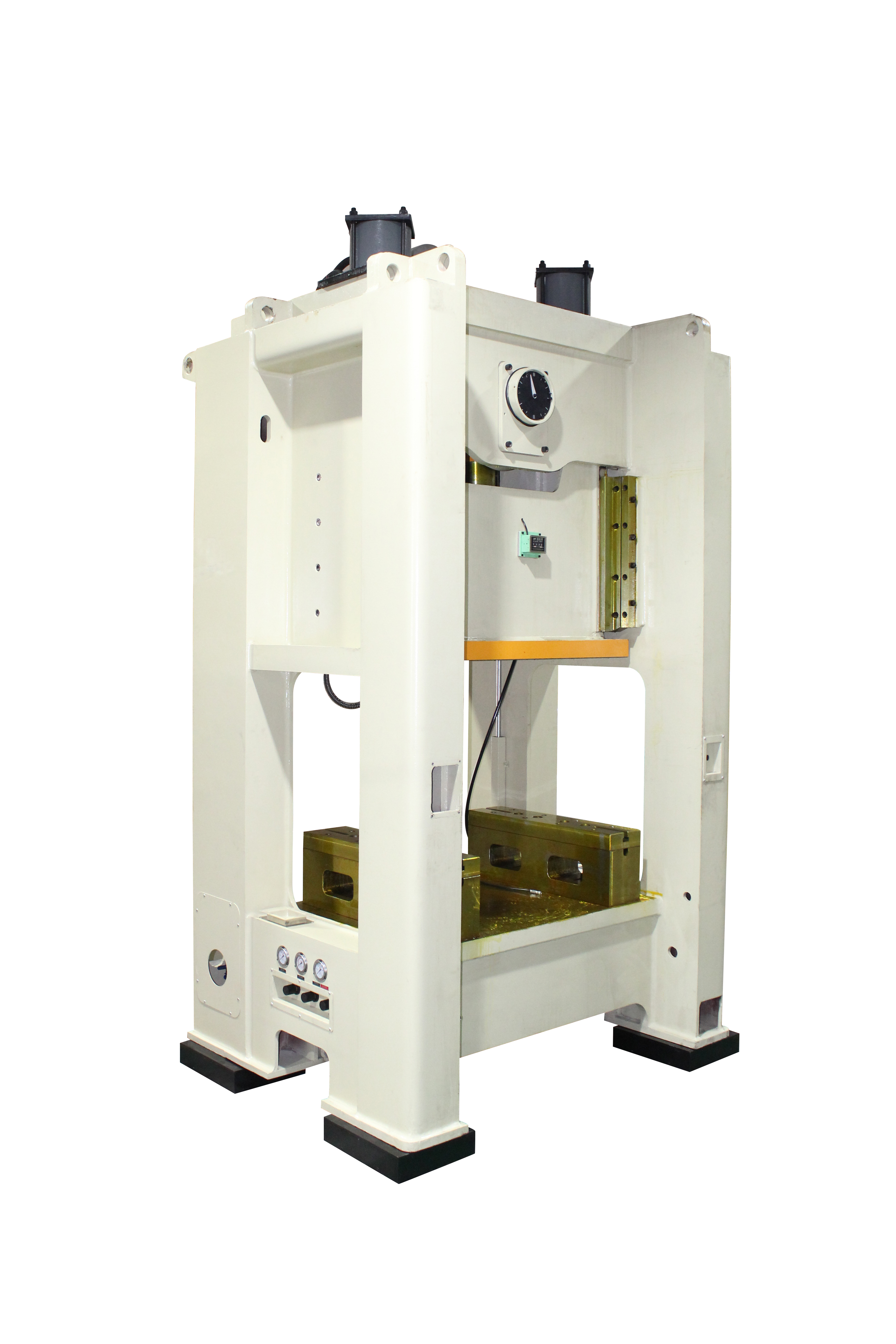

Units: Automatic Feeder+Automatic 80Ton Press+Mould+Auto Stacker+Scrap Sucker& Presser.
It fit for all common size Aluminum Foil Container production requested.
The Big capacity could to cover big range of size products.
Lower power requested than other old model machines.
The advantages as below:
1.Top Safety and long lifetime,high precision control of feeding step and speed.
2.The replacement of the mould is convenient and easy to change.
3.The machine has memory function for each mould.
4.It’s suitable for large size single cavity,medium and small size multi-cavity moulds.
5.The height of ram is electrically adjustable to satisfied multiple request of different
moulds with diverse shapes and sizes.

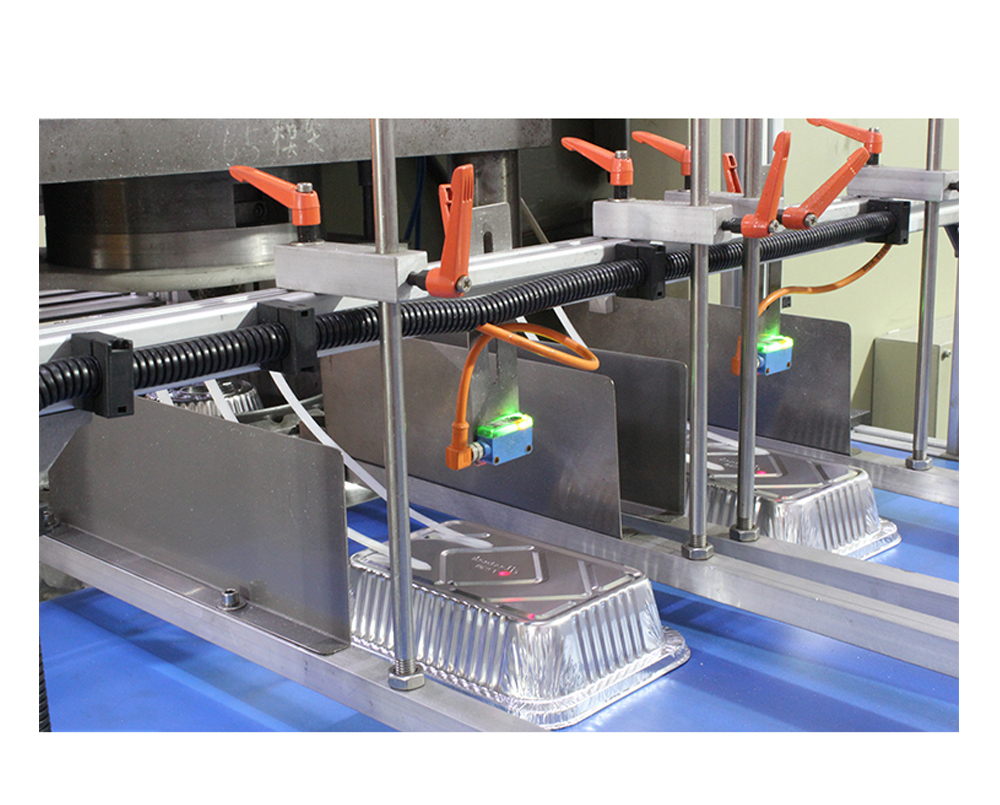

6.Novel design for the roller of stacker,to assure the stronger stability.
7.Emergency stop with the automatic detection.
8.The width of the lanes can be adjustable to fit different size containers stacking.
9.CNC machining center, and its machining accuracy is very high.
10. Electric compelling grease lubrication system.
SPECIFICATIONS:
| Item | Automatic Aluminium Foil Plate Making Machine |

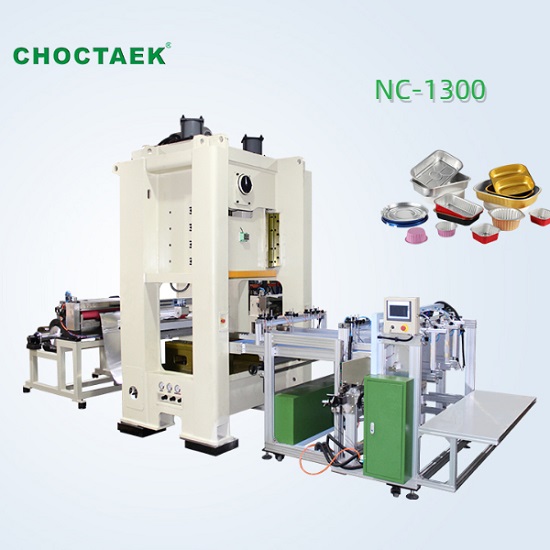

| Model | NC-1300 |
| Force | 80 ton |
| Production speed | 35 to 75 strokes/min |
| Power | 380V 50Hz 4 lines |
| Foil thickness | 35 to 200 micron |
RANGE OF CONFIGURATION
Aluminium Foil Plate Making Machine is used to produce all kinds of aluminum foil products: aluminum foil container, aluminum foil tray, aluminum foil plate, aluminum foil dish and ect, which are in different shape and size.
PRODUCT DESCRIPTION

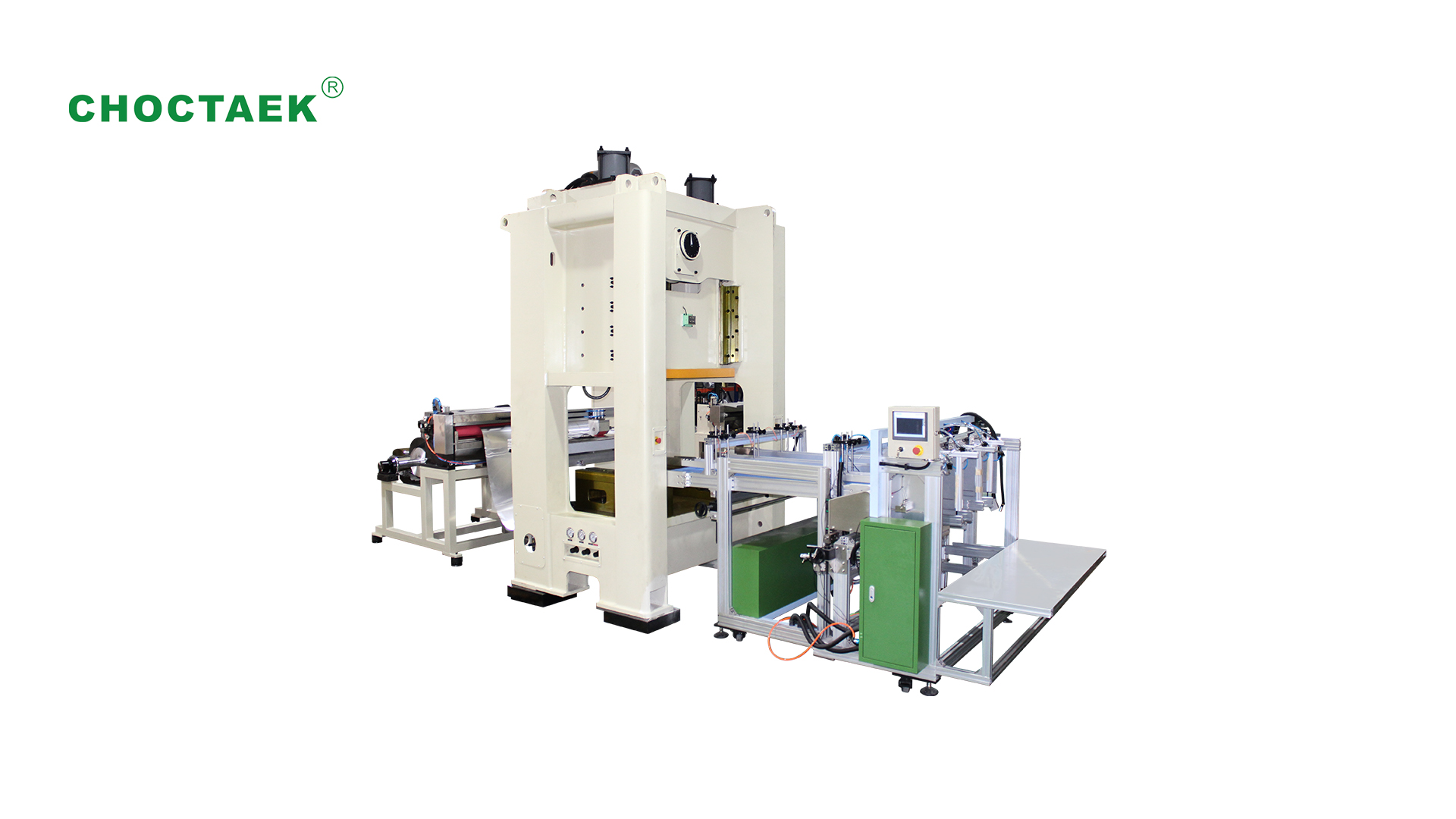

Aluminium foil plate making machine is full production line and full automatic, one worker can control one production line. It equips automatic feeder, punch machine, control panel, automatic stacker and foil scrap aispirator and automatic baler. This machine also equips with one 10 inch Simens Touch Screen and one 7 inch Simens Touch Screen, to show the whole production flow and specifications clearly. This is make very easy for operatoring and controling.
