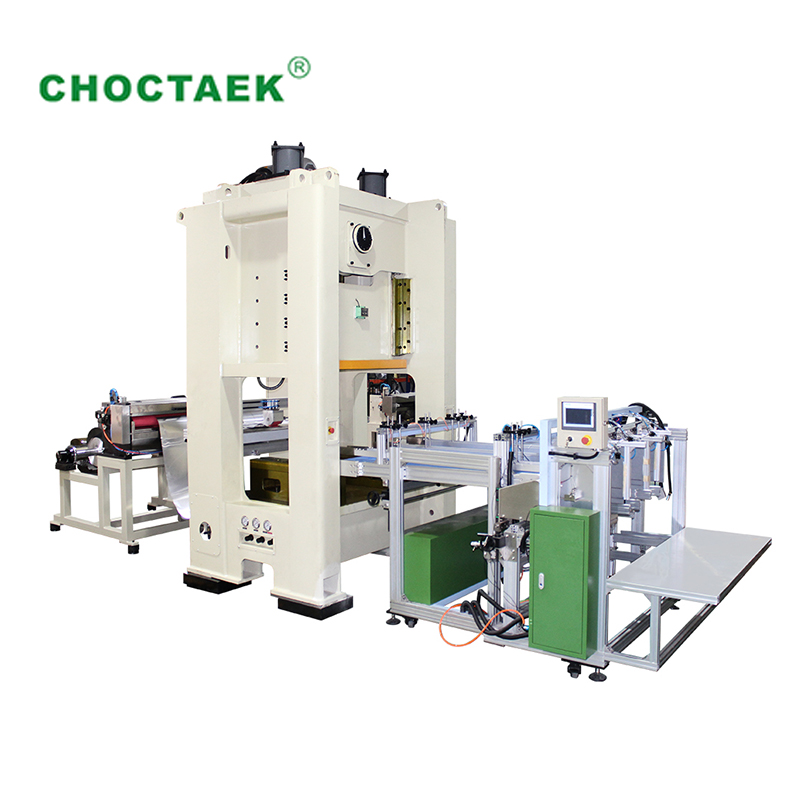

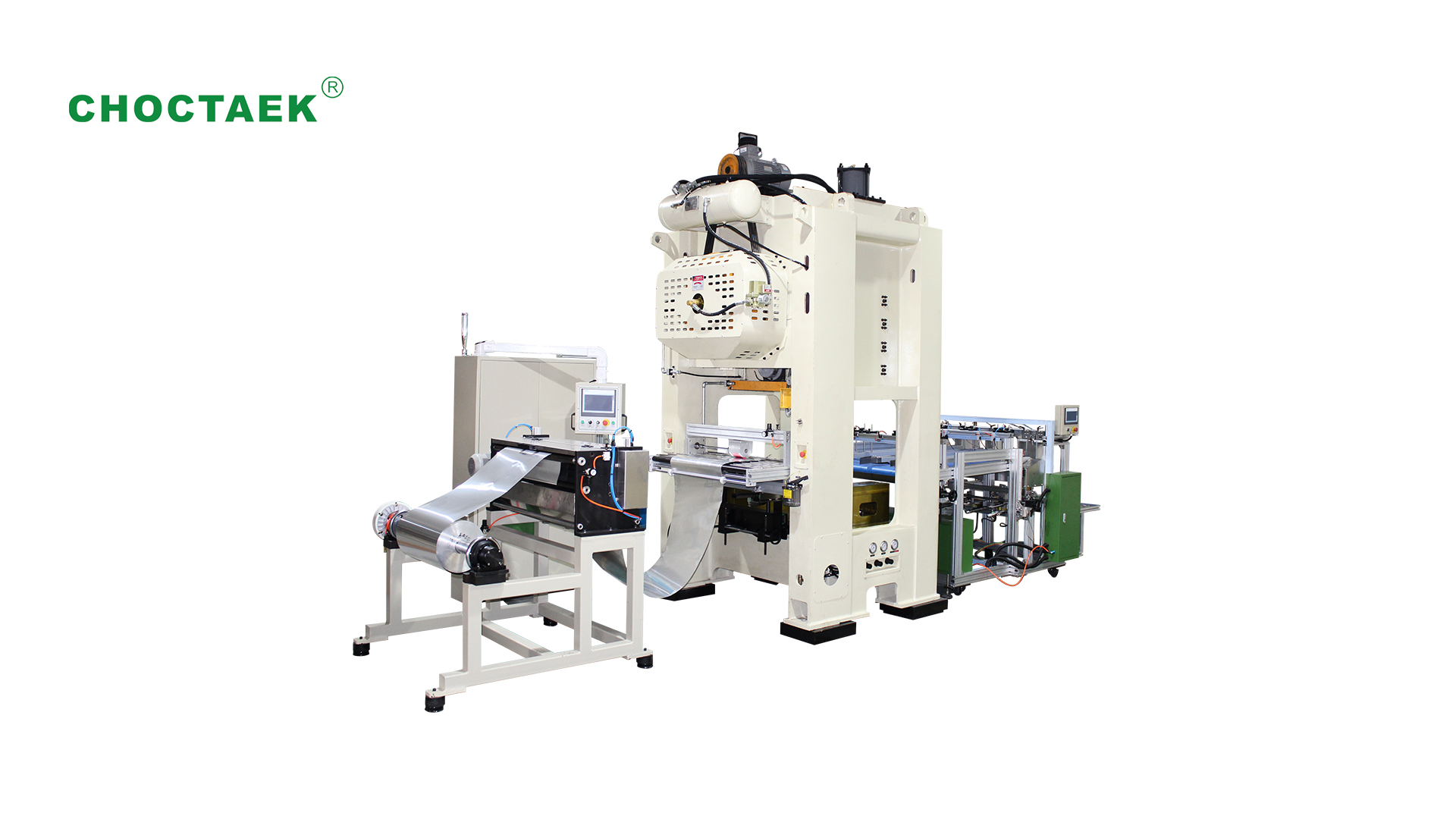

1000Ml 1500Ml 2000Ml Aluminium Foil Container Making Machine

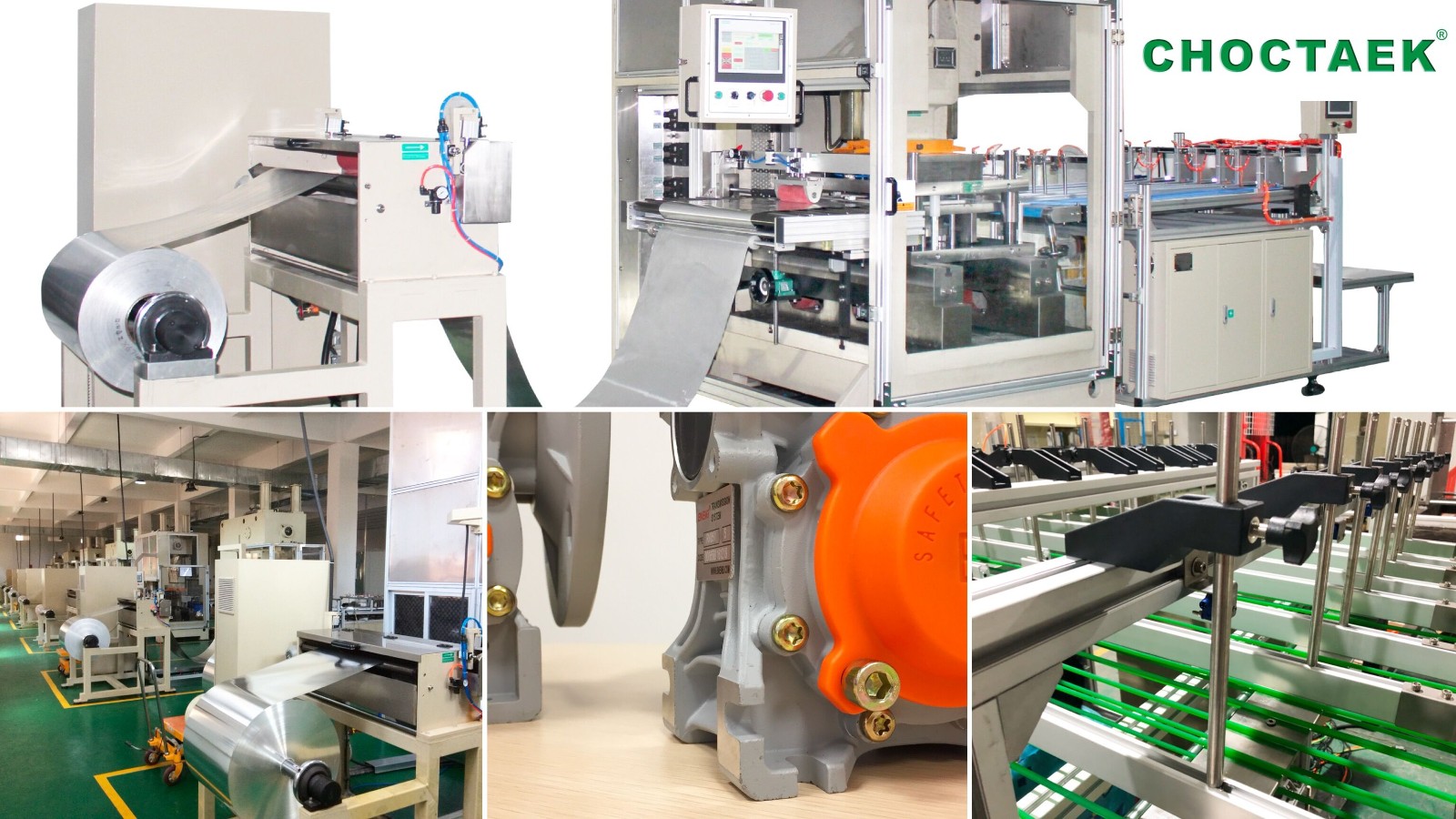

Pneumatic press machine for aluminium foil container is composed of eight parts.
1. Auto-lubricated foil feeder
2. Press
3. Control panel
4. Auto ways stacker
5. Scrap aspirator
6. Scrap press (Option)
7. Mould
8. Semi conveyor (Option)
CHOCTAEK Aluminium Foil Container Machinery Advantages:
1.Welded body with steel plate and high intensity.
2.Main motor is made by Siemens.
3.Adopts combined pneumatic friction clutch and brake.
4.Cluster gear adopts the flooding oil lubrication.
5.Equipped with hydraulic overload protecting device.
6.Electric shut height adjustment with digital display.
7.Equipped with lifting balance cylinder.
8.Electric compelling grease lubrication system.
9.Balancing cylinder adopts manual lubrication system.
10.One set of blowing device
Aluminium Foil Container Making Machine Feeder Infomation:
The motor of feeder：SIEMENS
The sensor of feeding：SICK
Tension controlling system：Taiwan Leesun
The collet of expansion shaft ：Taiwan Leesun
The diameter of expansion shaft：76mm (3inch), 150mm（6inch）
The Max. diameter of foil roll：800mm
Pneumatic press machine for aluminium foil container Control Panel:
Control system：SIEMENS PLC
Setting system：SIEMENS
Inverter：Janpan Sanken
AC Contactor：Schneider
Controlling button switch：Schneider
Double Solenoid Valve：Taco
Inverter of Motor and Feeder：Sanken
Exchange communication device： MOSA

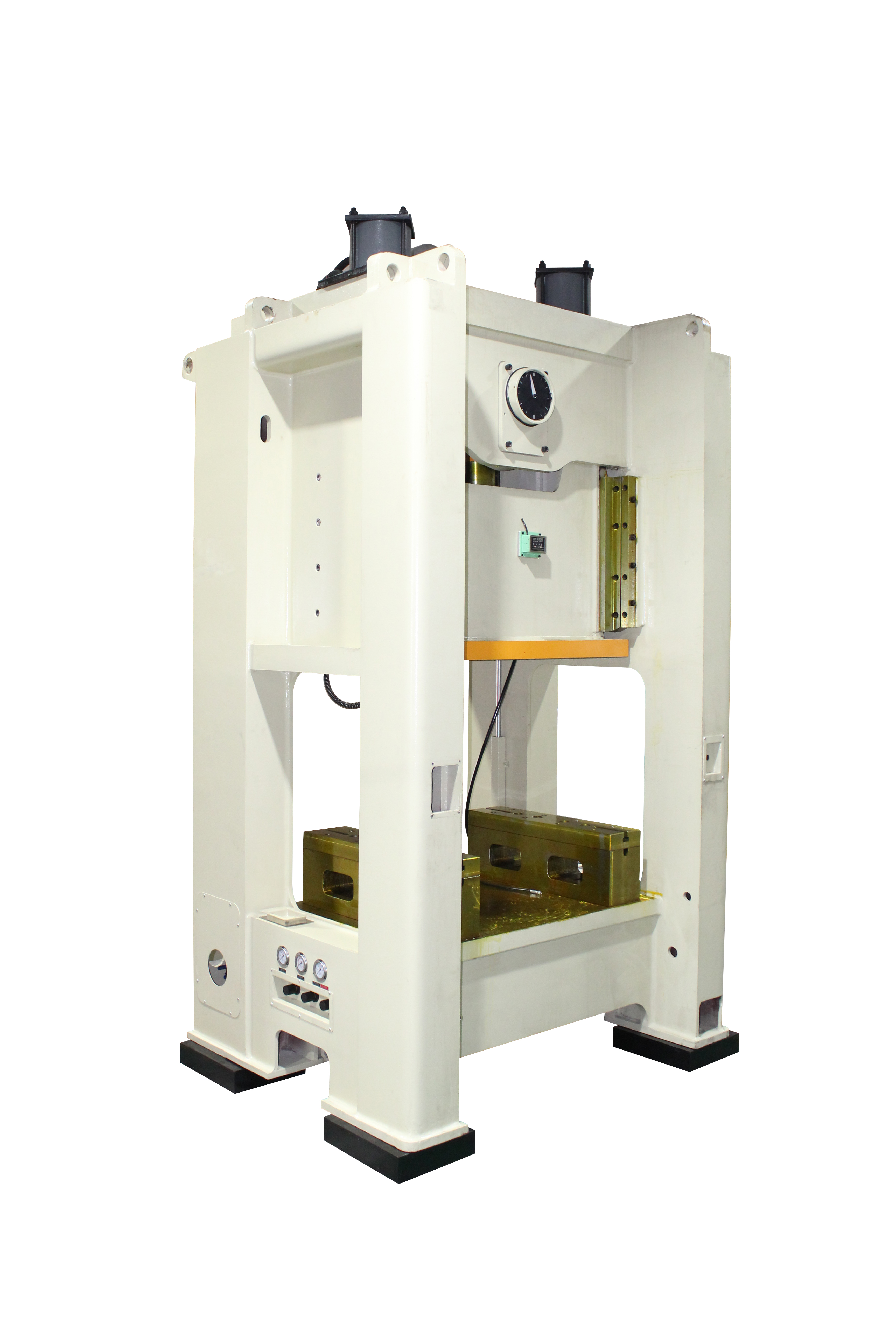

Press:
Parameter of CHOCTAEK aluminium foil container making machine:
Stroke length: stardard: 220mm (Customize: 200/250/280mm)
Stroke: 45-65 strokes/min
Max. mould height:450mm
The adjustment of the mould height: 80mm
Dimension of working table:1000*1000mm
Main Motor: SIEMENS
Clutch: ITALIAN OMPI
Electronic coder: Autonics
Sensor of blowing out: SICK
