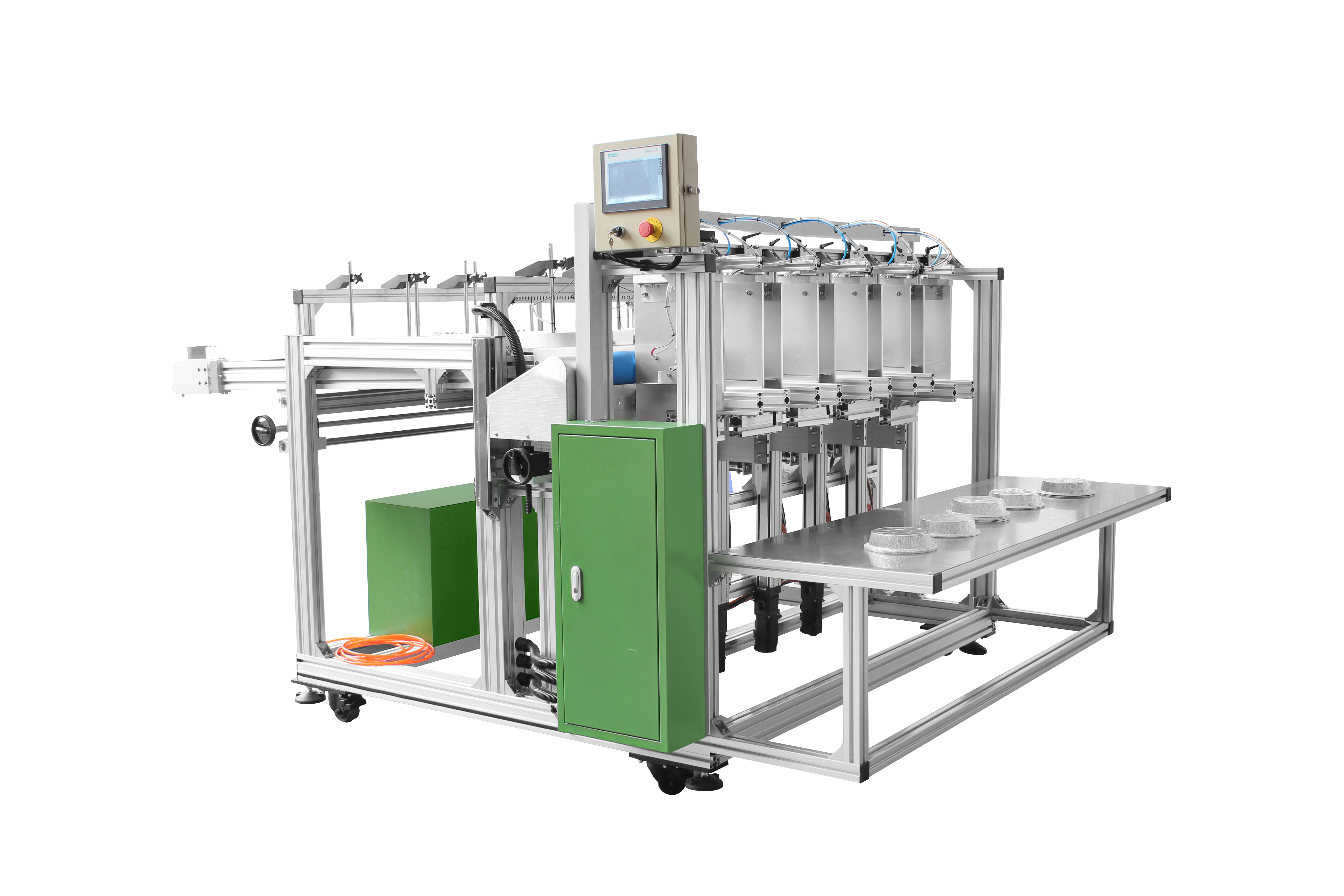

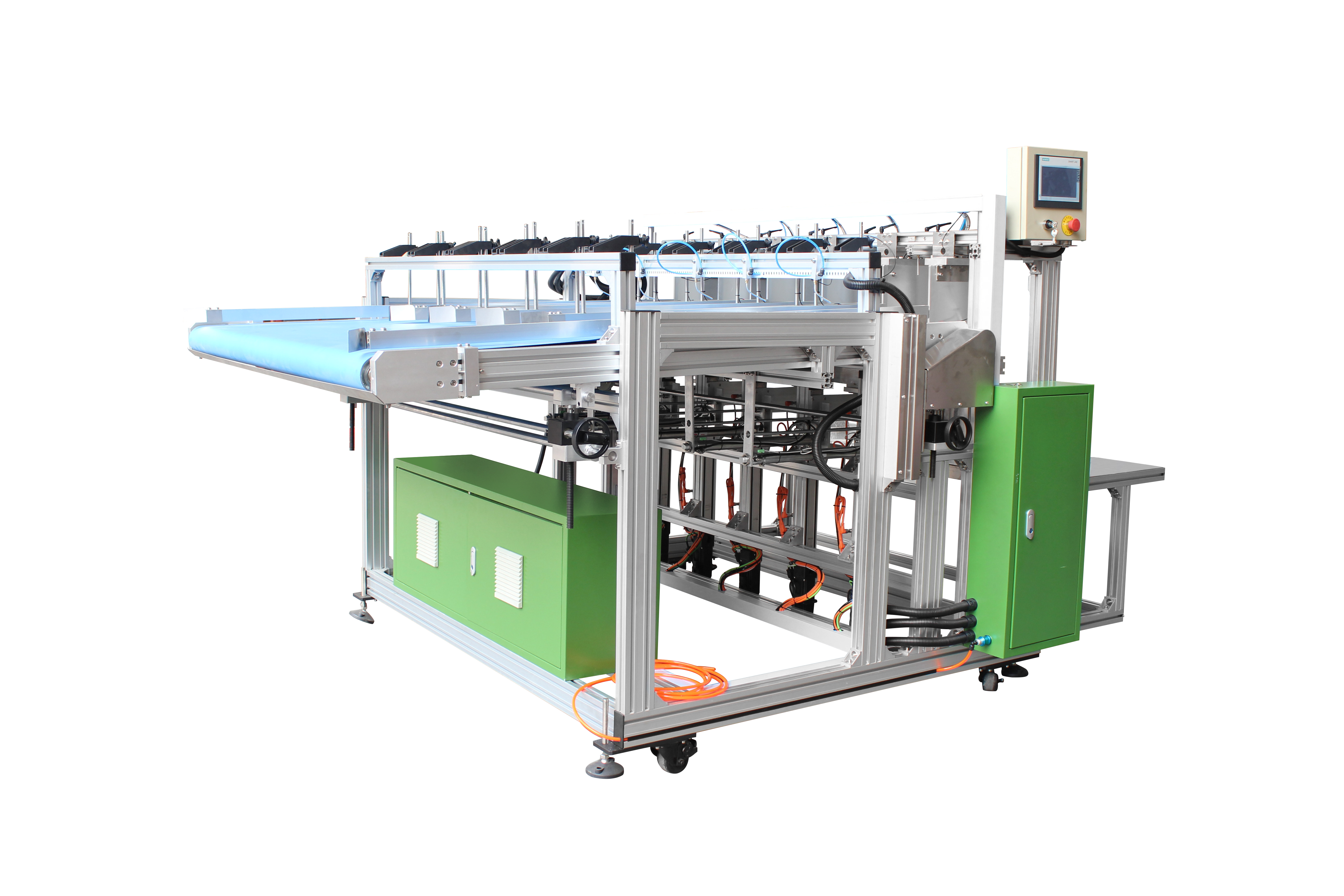

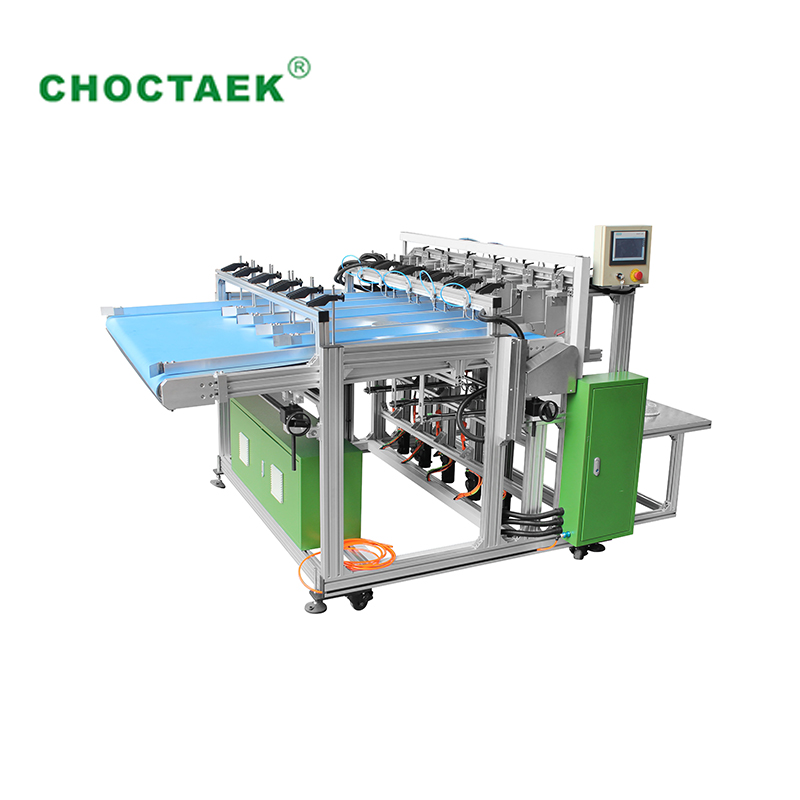

Aluminum foil container stacker
Our container stackers are built with a strong aluminium structure, so they allow easily moving.

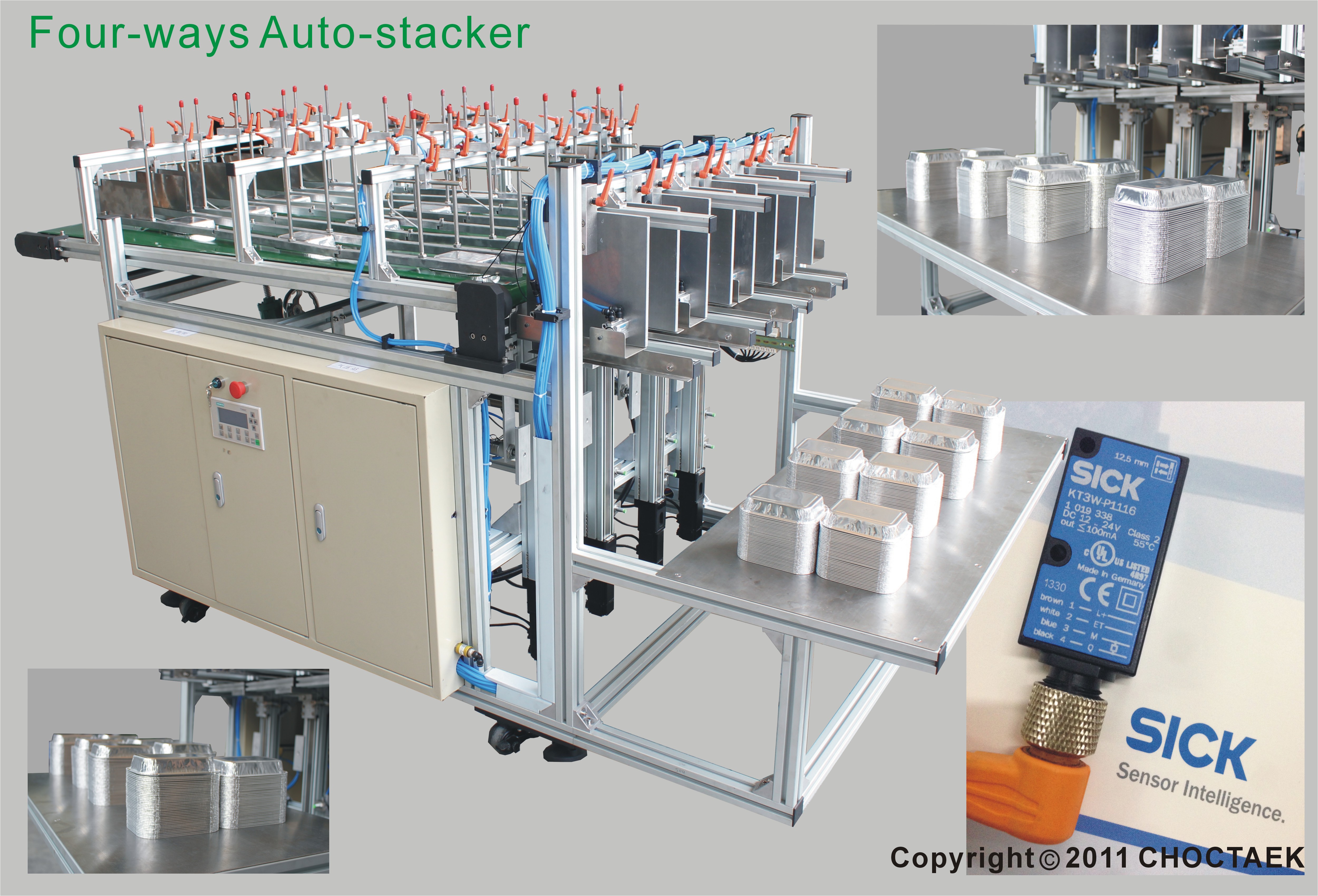

Some infrared ray is equipped with in the necessary area, which ensures high sensibility and precision.
The width and high of the lanes can be adjusted according to different container size and outer shape.

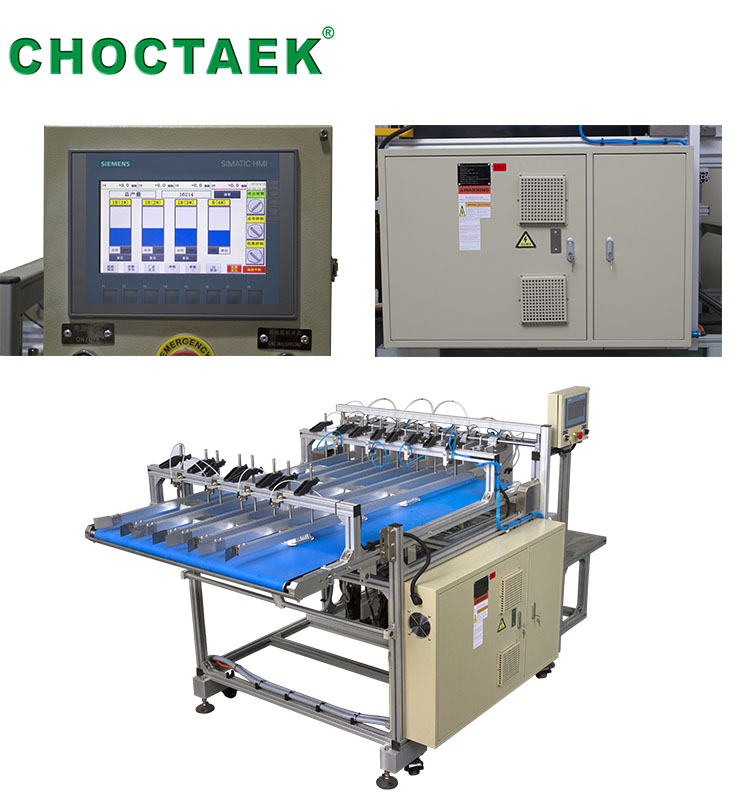

The PLC program assists the stacker to count, stack and unload containers automatically.
The stackers can be designed in single or multi-ways as different customer’s need.
| STACKER | |
| Main conveyor belt height | Adjustable by screw: 1186 mm for Press T80 |
| Main conveyor belt width | As per samples |
| Containers' stack maximum height | 400 mm |
| Collecting lifts | Double speed: normal & fast for the lifting-up |
| Electronic PLC | Mitsubishi |
| Main motor | Siemens |
| Low voltage electrical | Schne-ider |
| Ways number | 1-2-3-4 ( on request ) |
| Air flow in m3 | 3000 m3/h |
| Installed power | 2 KW |
