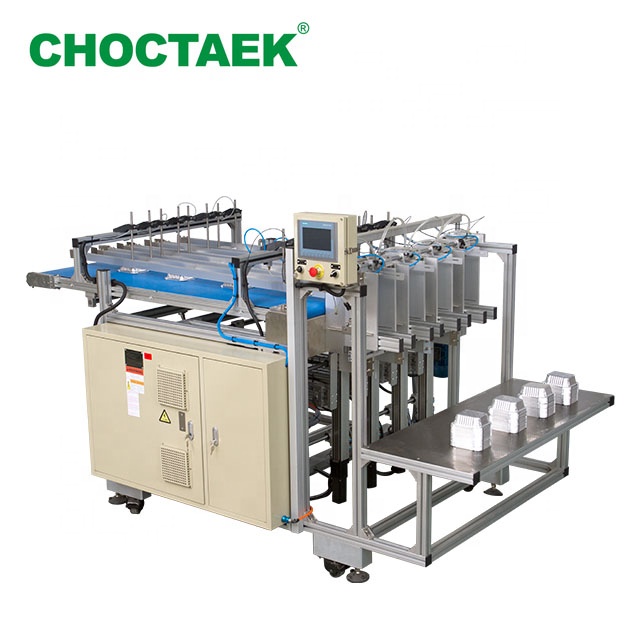

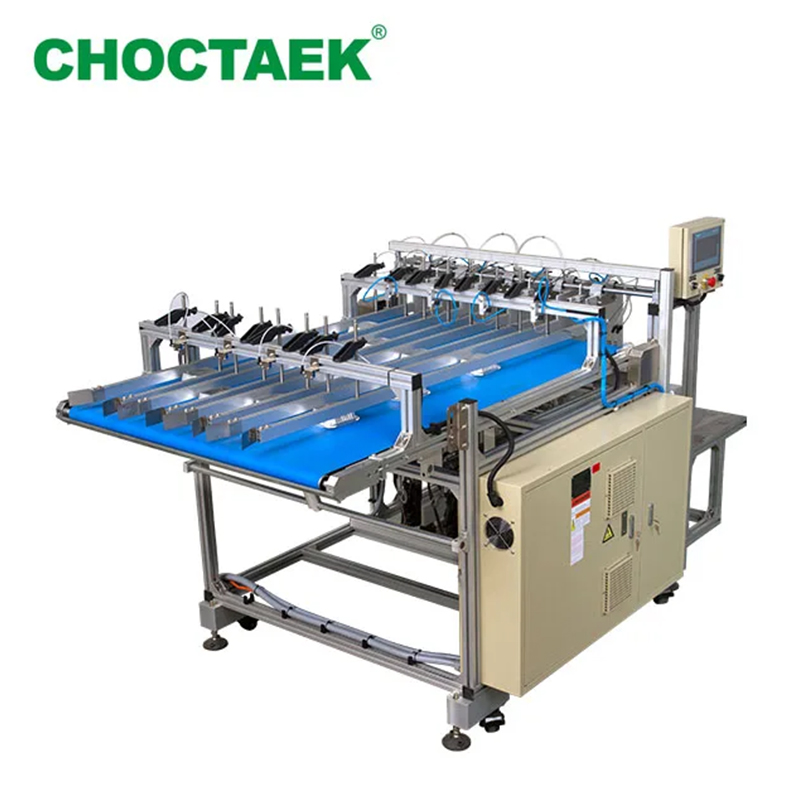

Aluminium Foil Container Stacker
Our container automated stacker feature a robust aluminum structure, facilitating easy mobility. In the essential areas, infrared rays are incorporated to ensure heightened sensitivity and precision.

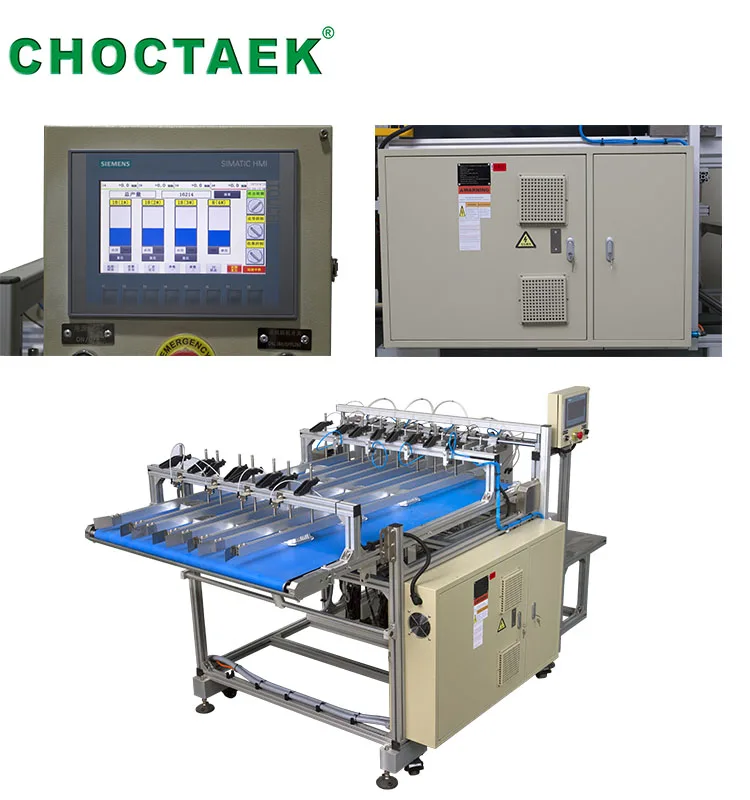

The width and height of the lanes in the automated stacker are adjustable to accommodate various container sizes and outer shapes. A PLC program is integrated to assist the stacker in automatically counting, stacking, and unloading containers.

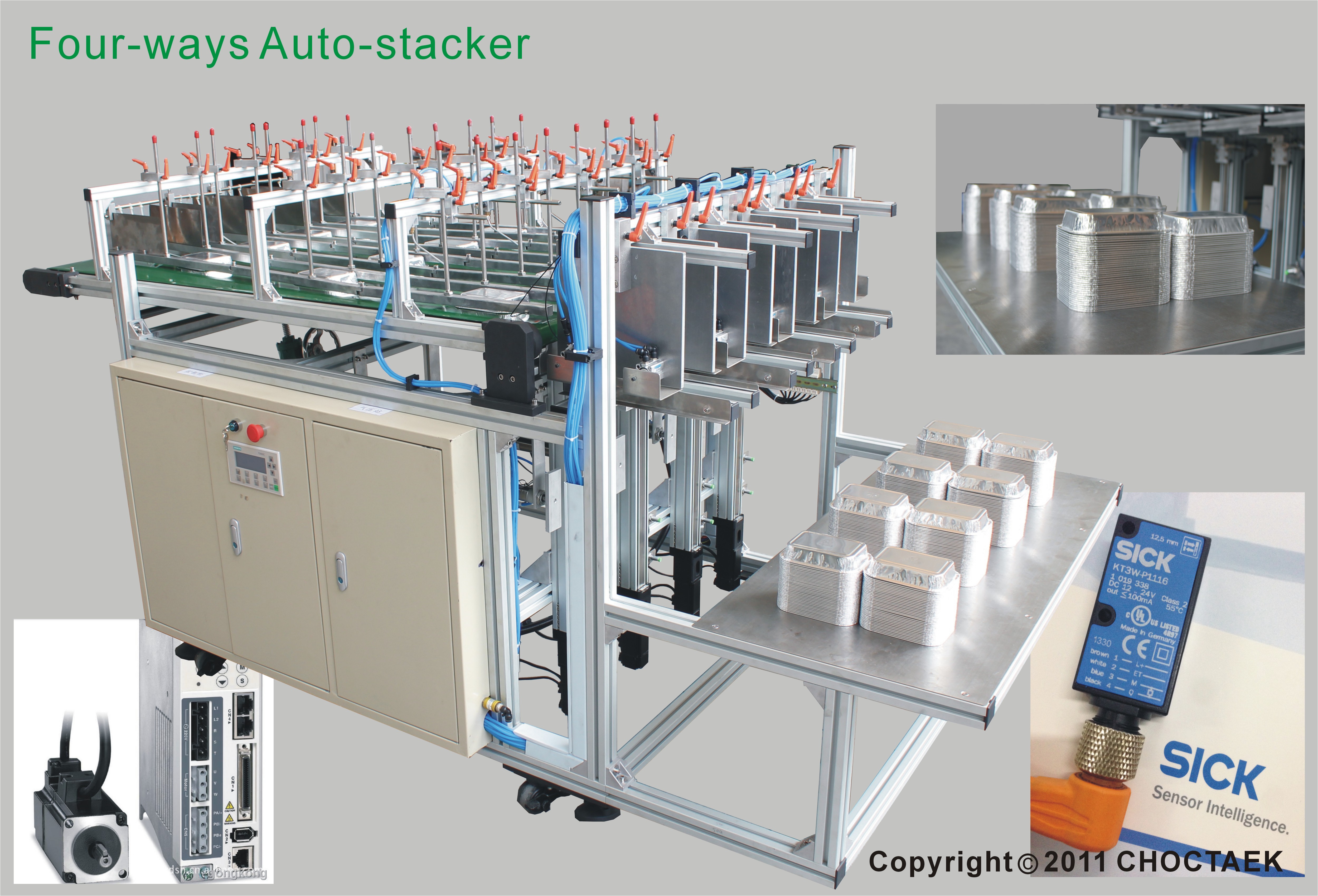

Our foil container stacking equipment can be customized as single or multi-ways to meet the diverse needs of our customers.
Technical Specification of Stacker
Min container dimensions | 100 x 120 x 30 mm |
Max container dimensions
| 500*380 mm (One way ) 250*380 mm (Two ways ) 210*380 mm (Three ways ) |
Max press speed | 70 stroke / min |
Main conveyer belt height | 800 mm adjustable |
Containers’ stack maximum height | 300 mm ( it might change according to the shape and size of the containers ) |
Collecting table
| 700*550 mm (One way ) 900*550 mm (Two ways ) 1000*550 mm (Three ways ) |
Pins | Regulate by screw, |
Quantity of ways | 1 – 2 – 3 – 4 – 5 ( on request) |
Main conveyer belt width | 500 mm (One way ) 700 mm (Two ways ) 1200 mm (Three ways ) |
