Material | Stainless Steel |
Treatment | High-temperature heat |
Application | Machinery & hardware |
Usage | Making Aluminum foil container |
Brand Name | CHOCTAEK (foil container mould) |
Size | As customer’s require |
Cavity | Single and Multi- Cavities |
Type | Smooth/wrinkle-wall container mould |
Style | One compartment or multi-compartment |
Rim | Full/ IVC/ Folded / Reverse rim |
Guarantee | One year |
Package | Seaworthy wooden case |
Delivery Time | 25-30 days |
Payment Term | LC/TT/ Western Union, Money Gram |
Loading Port | Foshan,Guangzhou, Shenzhen |

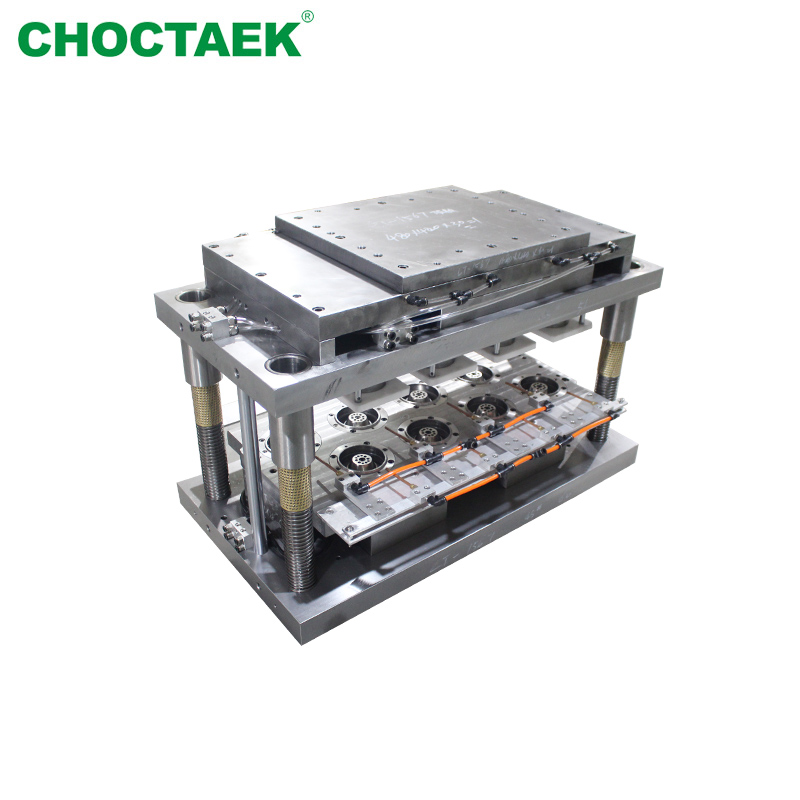

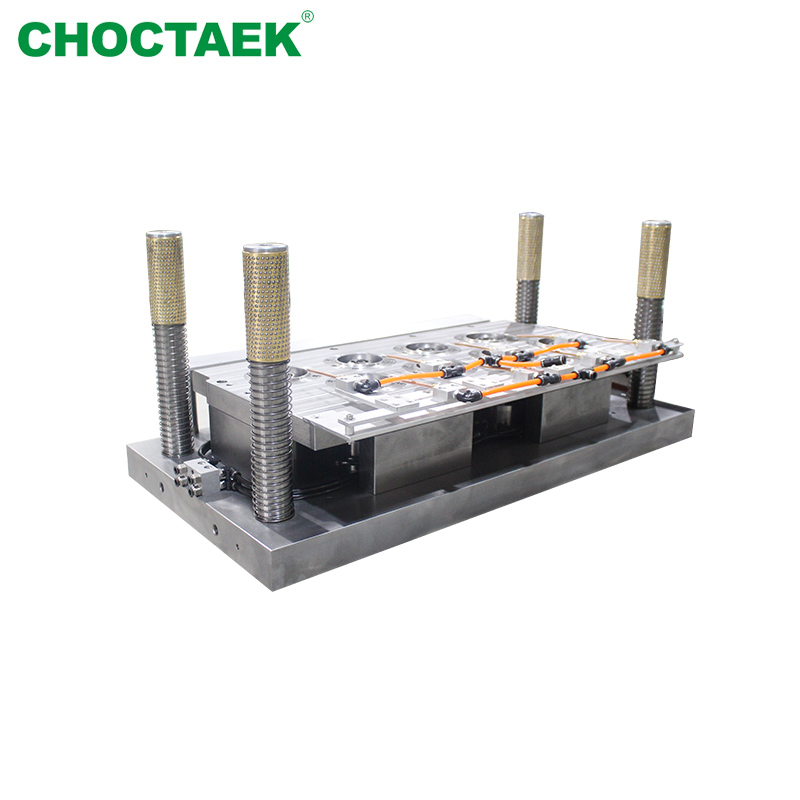

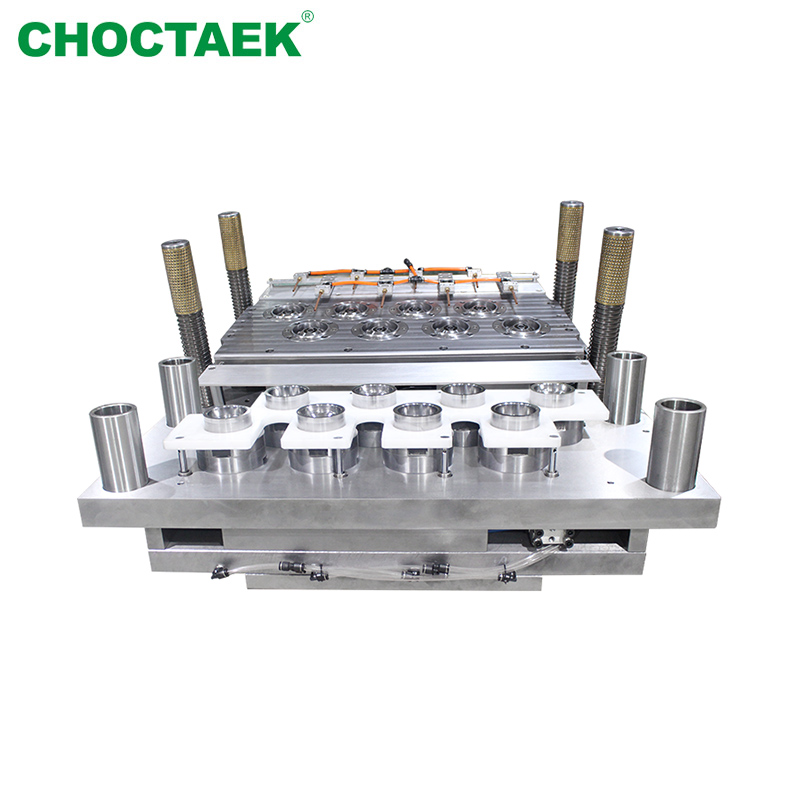

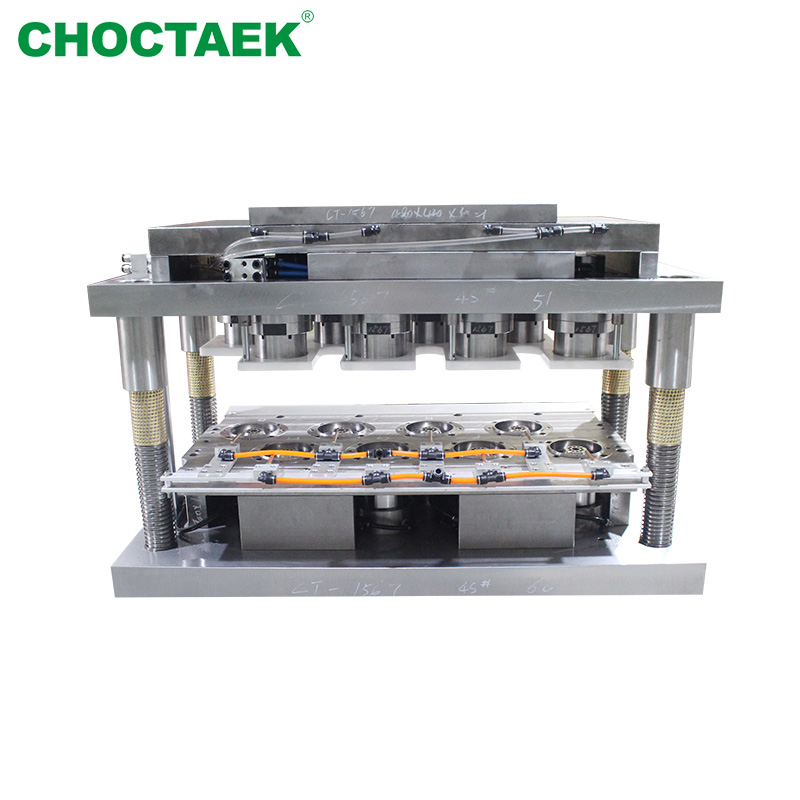

Aluminum foil container making die has the widest use, either for food conserving or other purposes. These Aluminum Foil Container Mould can produce every kind of alufoil containers.
According to the customer request, they can be made with full rim , ivc rim or folded rim.
A : FULL CURLED VERSION OR G RIM
B : FOLDED VERSION OR RIM
C : INTERUPT VERTICAL CURL VERSION OR L RIM
Shaping Mode:Punching Mold
Product Material:Steel
Product name: Aluminum foil container making die
Quality:500 million times punching at least
Nominal Pressure: 60KN/80KN
Slide Block Strok:150-260mm
Slide Stroke Per Minutes: 40-80
Maximum Die Set Height:345-500mm
Die Set Height Adjustment: 80mm
Slide Bottom Size:630*520mm
Stemhole Size:60*85mm
Bolster Surface Size:1100*680/1300*800mm
Total Power:11-15KW
Both wrinkle and soomth wall with reverse curling are workable on our machine.
Full Rim, IVC Rim, Folded Rim, Reverse Rim all can be produced.
Just tell us which aluminum foil container do you require to produce, we will give the whole solution to you.
Fast information:
Delivery date:
Machine: 30-35days.
Mould: 60-75 days, depends on the cavities and size.
Payment term:
T/T,L/C at sight ,Cash,Paypal,Western Union.
